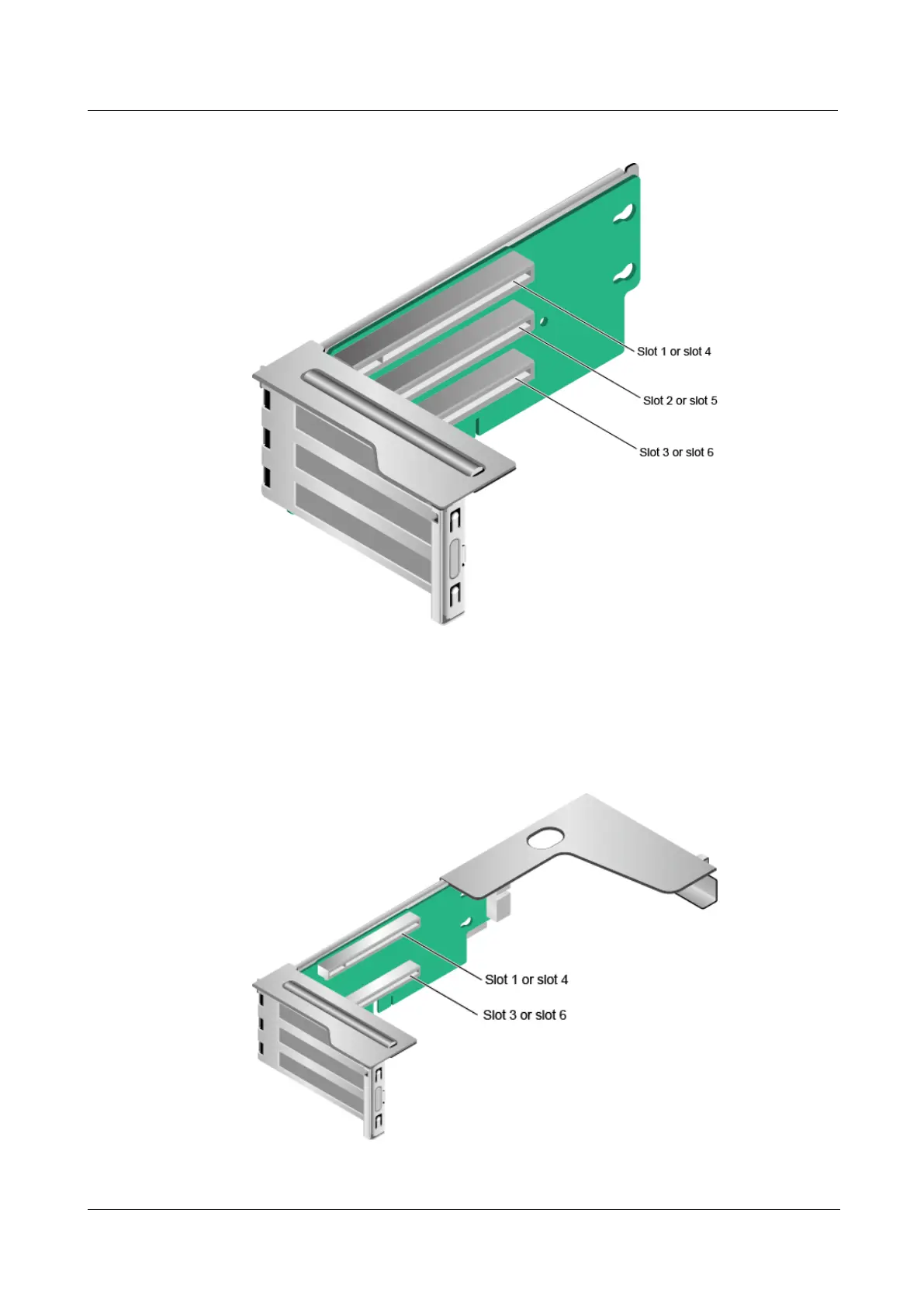

Figure 5-61 PCIe riser module 2
⚫
PCIe riser module 3 (for GPUs only)
− It provides PCIe slots 1 and 3 when being installed in I/O module 1.
− It provides PCIe slots 4 and 6 when being installed in I/O module 2.
Figure 5-62 PCIe riser module 3
