3
DVD drive power connector
(J11)
4
Mini-SAS HD connector
(PORT B/J29)
5
Mini-SAS HD connector
(PORT A/J28)
6
Power connector (J24)
⚫
12 x 3.5" drive EXP backplane

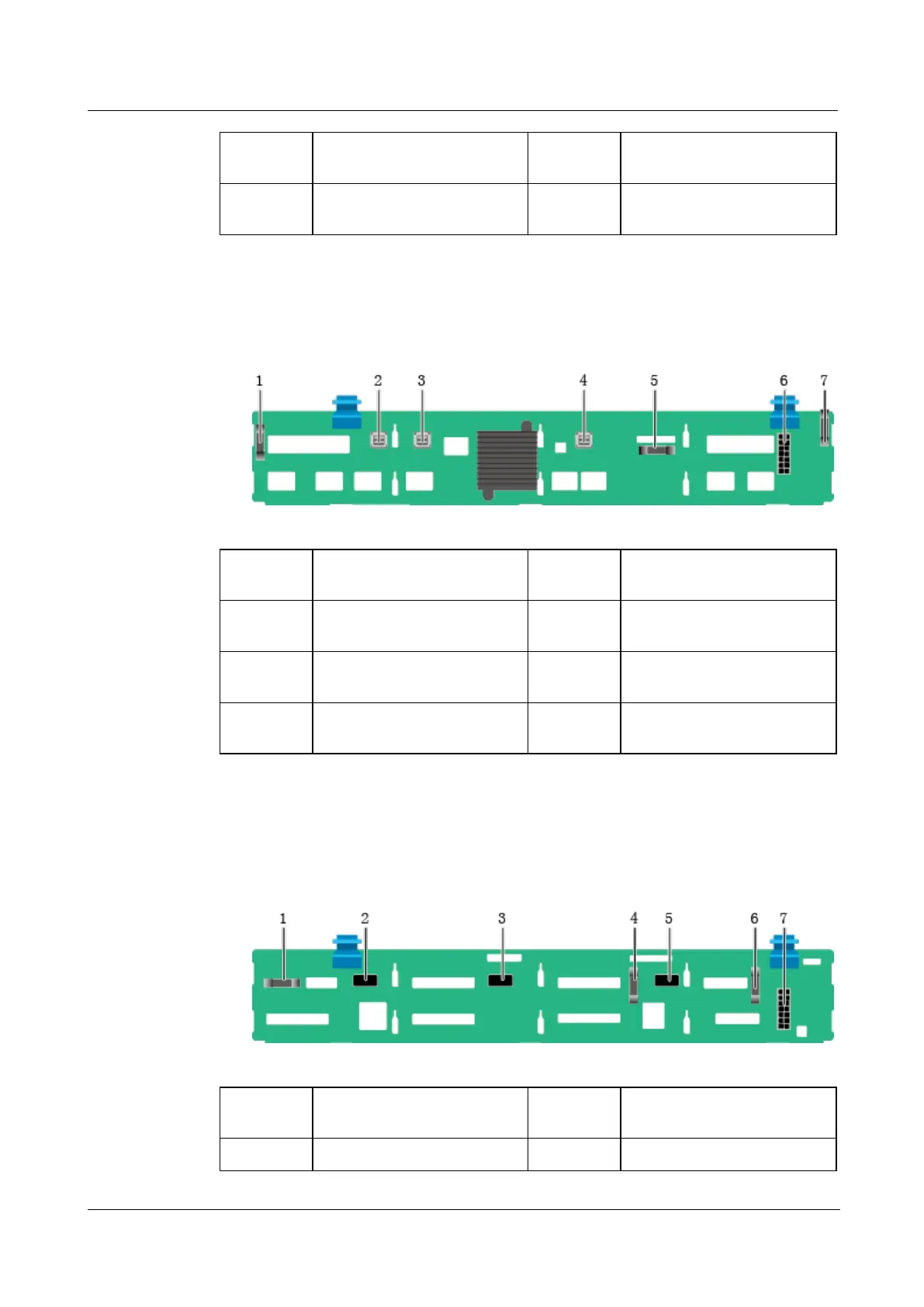

Figure 5-71 12 x 3.5" drive EXP backplane (BOM: 03024DDH, 03024MSG,
03029JSA, and 0302Y070)
1
Indicator signal cable
connector (J32)
2
Mini-SAS HD connector
(PORT A/J28)
3
Mini-SAS HD connector
(PORT B/J29)
4
Mini-SAS HD connector
(REAR PORT/J31)
5
Backplane signal cable
connector (J1)
6
Power connector (J24)
7
Indicator signal cable
connector (J35)
-
-
⚫
Backplane for the 8 x 3.5" drive pass-through configuration and 12 x 3.5" drive
pass-through configuration
Figure 5-72 Backplane for the 8 x 3.5" drive pass-through configuration and 12 x
3.5" drive pass-through configuration (BOM: 03024JMV and 03029TDH)
1
Indicator signal cable
connector (J30)
2
Mini-SAS HD connector
(PORT C/J36)
3
Mini-SAS HD connector
4
Backplane signal cable
