FusionServer 2288H V5 Server
Technical White Paper
5 Hardware Description
Issue 11 (2023-04-30)
Copyright © xFusion Digital Technologies Co., Ltd.
77
(PORT B/J29)
connector (J1)
5
Mini-SAS HD connector
(PORT A/J28)
6
Indicator signal cable
connector (J31)
7
Power connector (J24)
-
-
⚫
20 x 2.5" (8 x SAS/SATA + 12 x NVMe) drive backplane
The 20 x 2.5" (8 x SAS/SATA + 12 x NVMe) drive configuration supports two types of
backplanes (BOM codes: 03029TDE and 03025EUL).

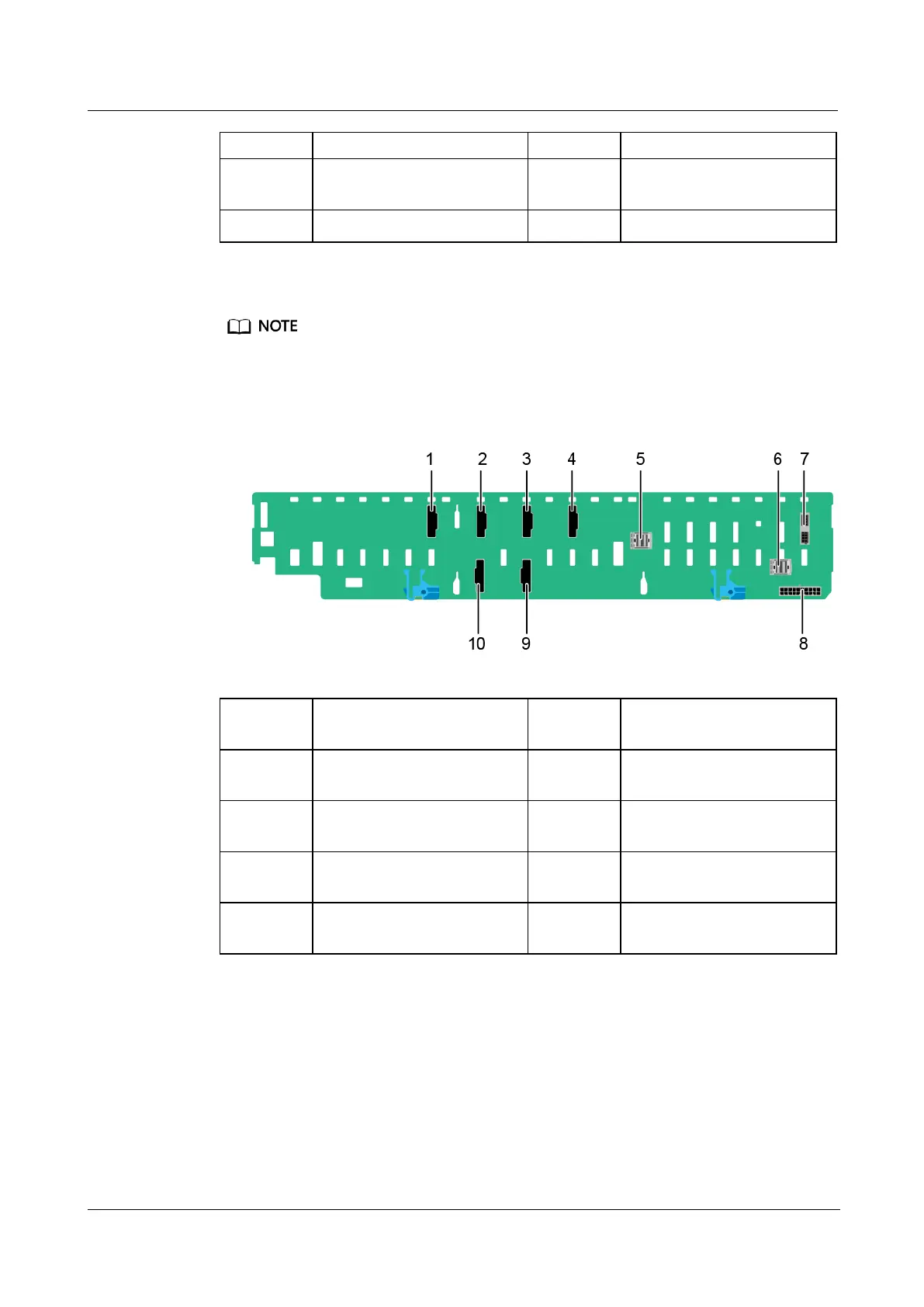

Figure 5-73 20 x 2.5" (8 x SAS/SATA + 12 x NVMe) drive backplane (BOM:
03029TDE)
1
Slimline connector (PORT
2C/J31)
2
Slimline connector (PORT
1C/J19)
3
Slimline connector (PORT
1B/J18)
4
Slimline connector (PORT
1A/J17)
5
Mini-SAS HD connector
(PORT B/J16)
6
Mini-SAS HD connector
(PORT A/J15)
7
Backplane signal cable
connector (J41)
8
Power connector (J37)
9
Slimline connector (PORT
2A/J21)
10
Slimline connector (PORT
2B/J32)
