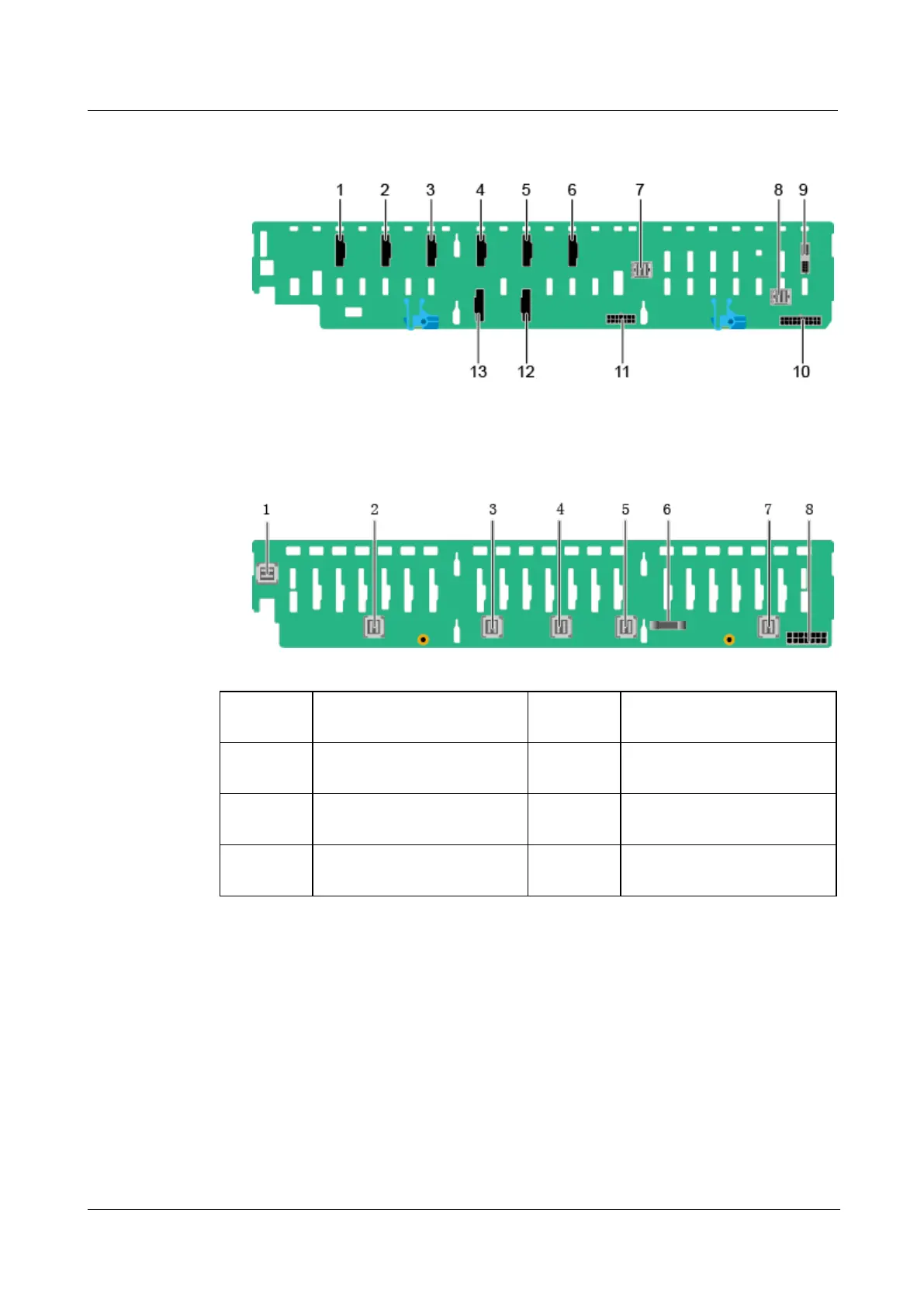

Figure 5-74 20 x 2.5" (8 x SAS/SATA + 12 x NVMe) drive backplane (BOM:
03025EUL)
⚫
24 x 2.5" drive pass-through backplane
Figure 5-75 24 x 2.5" drive pass-through backplane (BOM: 03022JWW, 03029WFE)
1
Mini-SAS HD connector
(PORT 3B/J33)
2
Mini-SAS HD connector
(PORT 3A/J39)
3
Mini-SAS HD connector
(PORT 2B/J31)
4
Mini-SAS HD connector
(PORT 2A/J30)
5
Mini-SAS HD connector
(PORT 1B/J29)
6
Backplane signal cable
connector (J1)
7
Mini-SAS HD connector
(PORT 1A/J28)
8
Power connector (J24)
⚫
24 x 2.5" NVMe backplane
