Fusion FusionServer 2288H V5

FusionServer 2288H V5 Server
Technical White Paper
5 Hardware Description
Issue 11 (2023-04-30)
Copyright © xFusion Digital Technologies Co., Ltd.
79

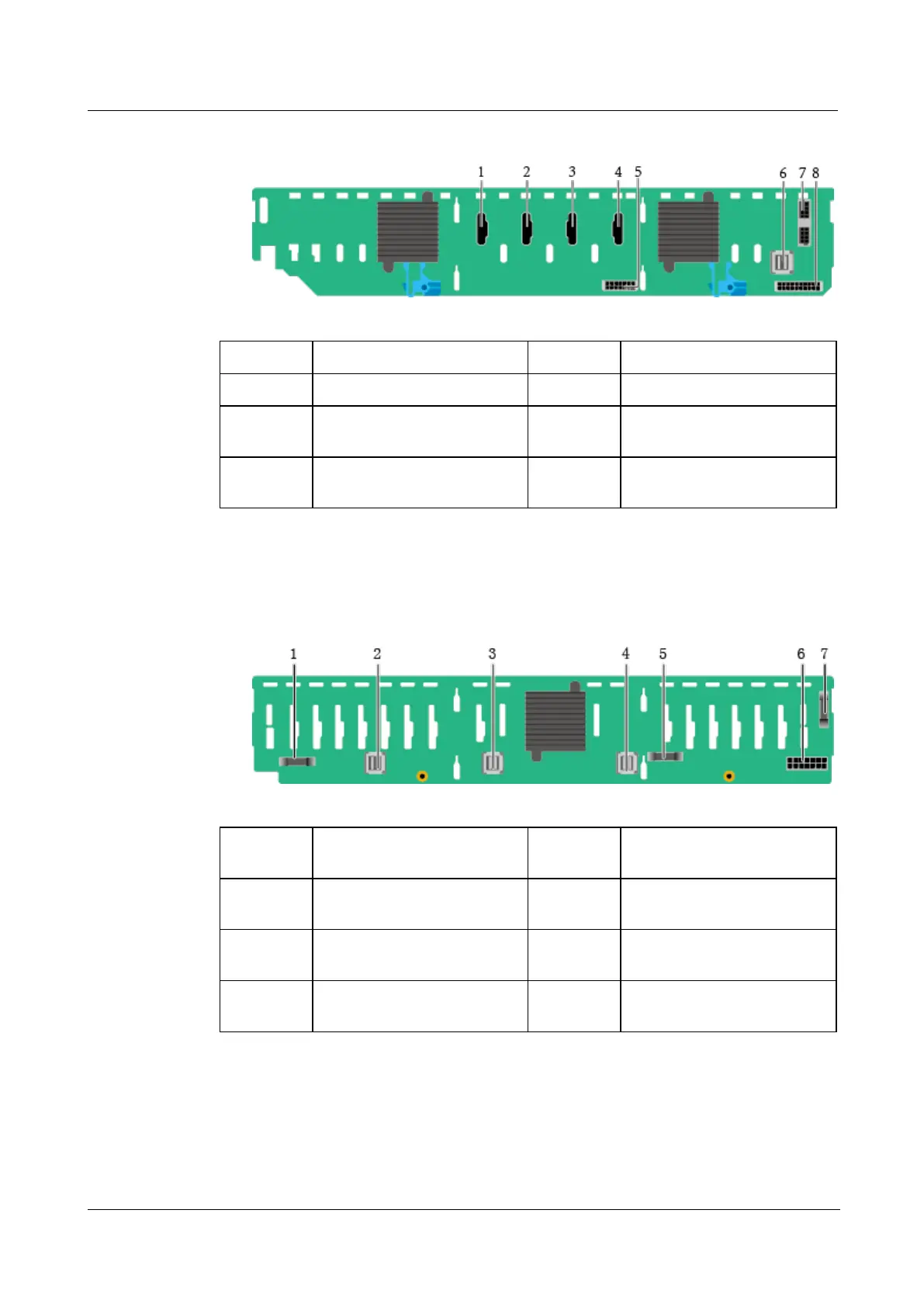

Figure 5-76 24 x 2.5" NVMe backplane (BOM: 03023WAD)
1
Slimline A connector (J6)
2
Slimline B connector (J5)
3
Slimline C connector (J7)
4
Slimline D connector (J8)
5
Power connector 2 (J34)
6
Mini-SAS HD connector
(PORT A/J52)
7
Backplane signal cable
connector (J3)
8
Power connector 1 (J2)
⚫
25 x 2.5" drive backplane
Figure 5-77 25 x 2.5" drive backplane (BOM: 03022HYB, 03024MSH, 03029TDQ,
and 0302Y071)
1
Indicator signal cable
connector (J32)
2
Mini-SAS HD connector
(PORT A/J28)
3
Mini-SAS HD connector
(PORT B/J29)
4
Mini-SAS HD connector
(REAR PORT/J31)
5
Backplane signal cable
connector (J1)
6
Power connector (J24)
7
Indicator signal cable
connector (J35)
-
-
Built-in-Drive Backplane
⚫
4 x 3.5" built-in-drive backplane
