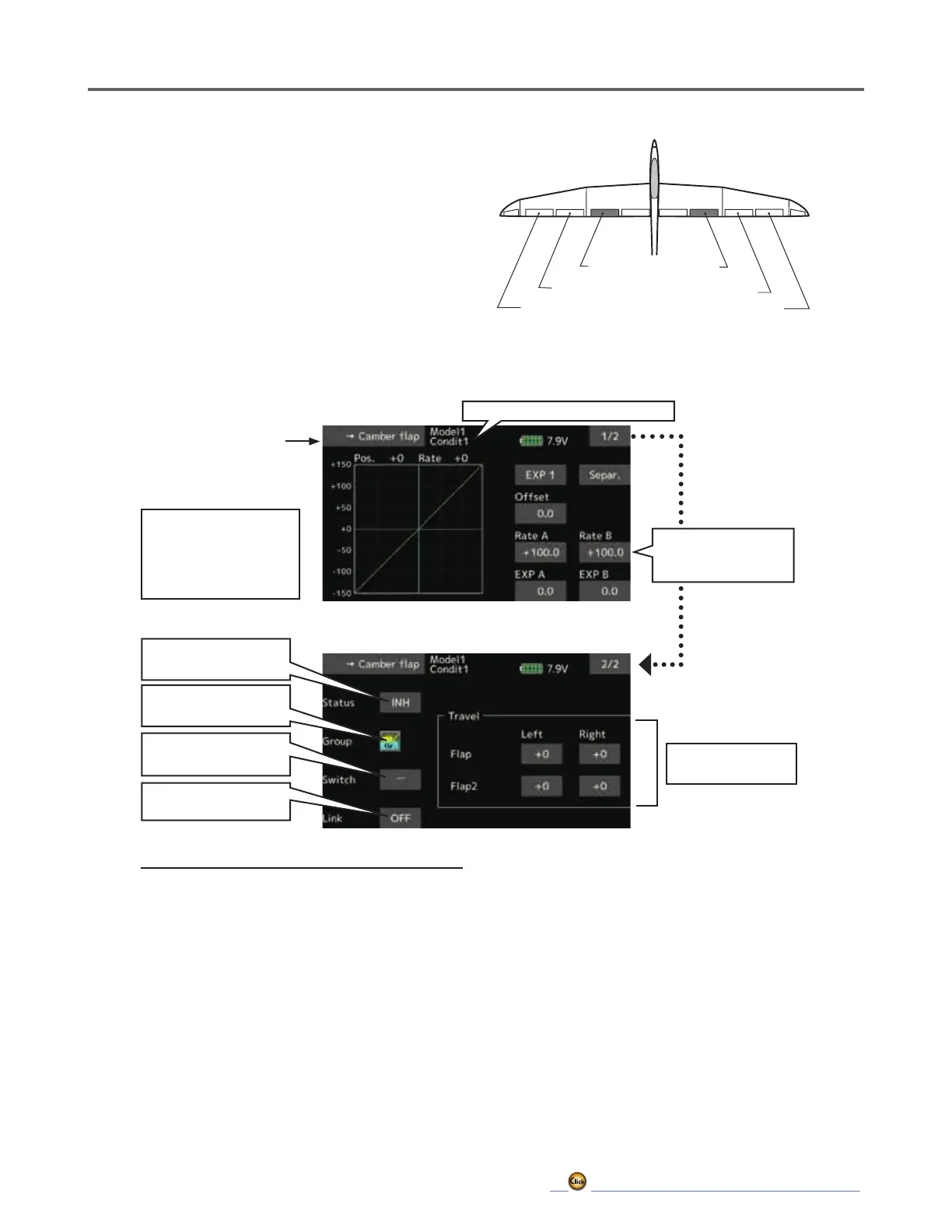

AIL
AIL
AIL 3
(Chip Aileron)
AIL 4
(Chip Aileron)
AIL1
(Main Aileron)
AIL 2
(Main Aileron)
FLP 2
(Camber Flap)
FLP 1
(Camber Flap)
AIL → Camber ap
[Corresponding model type]: Airplane/
glider, 2 ailerons + 2 aps or more
This mix operates the camber flaps (FLP1/2)
in the aileron mode. When the aileron stick
is manipulated, the ailerons and camber flaps
perform aileron operation simultaneously and
the operation characteristic of the roll axis is
improved.
● The aileron left/right mixing rate of each ap servo
can be ne-tuned.
● A mixing curve can be set.
● An ON/OFF switch can be set.
● Linking is possible: Link this mix to other mixes.
Adjustment of each
ap servo
Setting method
● Tap [INH].
(ON is displayed.)
● When setting a switch, tap the [--] item of
the switch and tap the screen to call the
selection screen, and then select the switch
and set its ON direction. (Always ON at "--"
setting)
(For a description of the switch selection
method, see the the back of this manual.)
● Tap the left or right item of each ap servo.
Adjust the mixing rate.
*When the mixing direction is reversed by the linkage,
adjustments can be made by changing the mixing rate
polarity (+ or -).
● A mixing curve can be set. (1/2 page)
(For a description of the mixing curve setting
method, see the description at the back of
this manual.)
● To set linking, tap the [Link] item.
Set it to ON and tap the screen.
● Select [AIL→Camber flap] at the
model menu and call the setup
screen shown below.
Currently selected condition name
● Mixing curve setting
(For a description of the
setting method, see the
description at the back
of this manual.)
Left/right overall
adjustment at Rate A
and Rate B
Activate the function by
tapping the [INH].
Condition group/single
mode selection (Gr. /Sngl)
The ON/OFF switch of
mixing is chosen.
To set linking, tap to
the [OFF] item
●Return to Model menu
