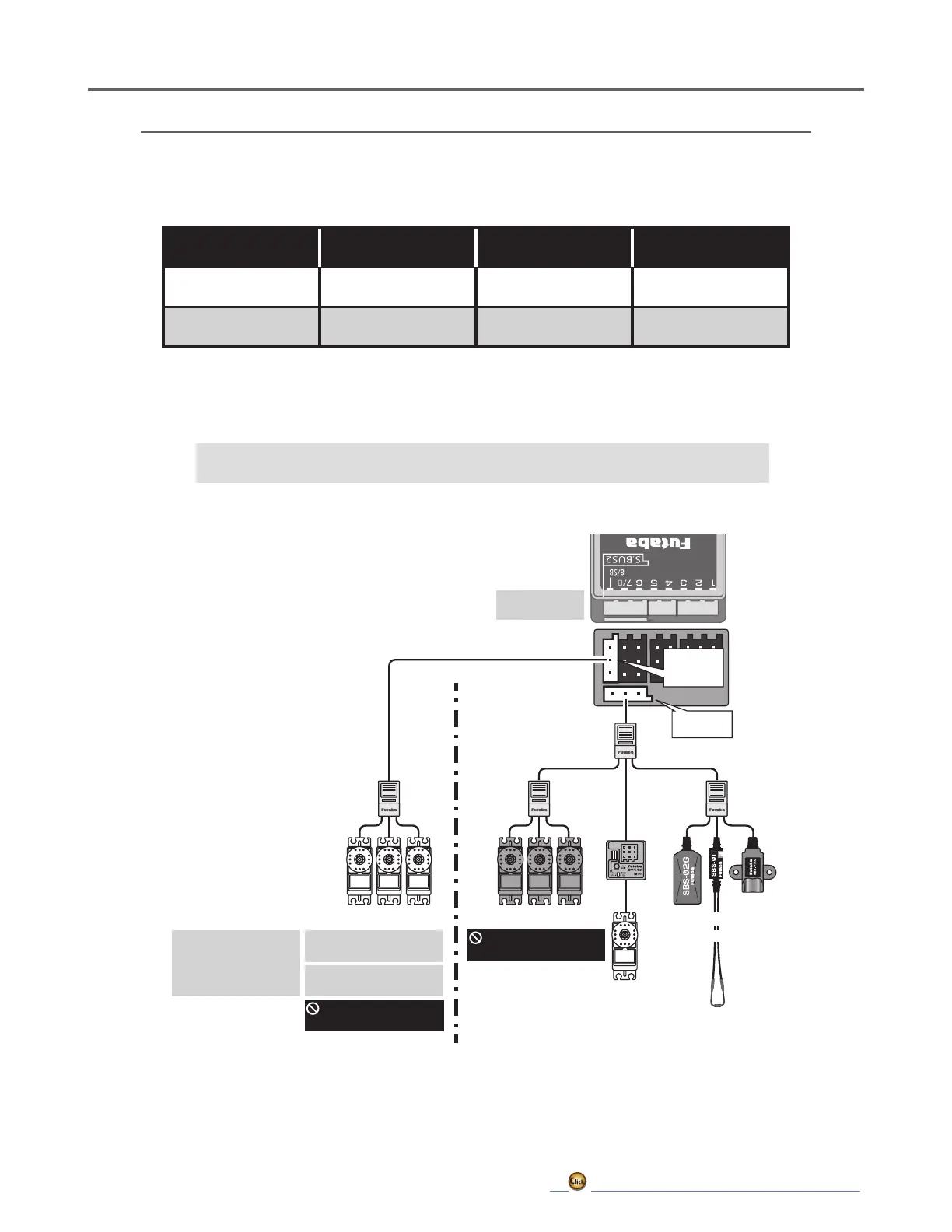

S.BUS2 System
When using the S.BUS2 port, an impressive array of telemetry sensors may be utilized.
Receiver port
S.BUS Servo
S.BUS Gyro
S.BUS2
Servo
S.BUS2
Gyro
Telemetry sensor
S.BUS ○ ○ ×
S.BUS2
× （※） ○ ○
S.BUS2 TABLE
（※）Don'tconnectS.BUSServo,S.BUS
GyrotoS.BUS2connector.
S.BUS2
Port
S.BUS
Port
(8/SB)
Hub
Hub Hub Hub
Servo
S.BUS2 ServoS.BUS Servo
S.BUS2 servo
Connection is possible
Mixed connection
of S.BUS and S.BUS2
is possible.
S.BUS2 gyro
Connection is possible
S.BUS servo
Connection is impossible
Telemetry sensor
Connection is impossible
S.BUS2
GYRO
CH Mode is set
to ModeB [D].
＋
Telemetry
Sensors
S.BUSservosandgyrosandS.BUS2servosandgyrosmustbeusedinthecorrectreceiver
ports.Pleaserefertotheinstructionmanualtomakesureyouconnecttothecorrectone.
