FUTABA T16IZ - CamberFlapEle

137
→ GO to TABLE OF CONTENTS
Adjustment of
elevator servo
Currently selected condition name
● Mixing curve setting
(For a description of the
setting method, see the
description at the back
of this manual.)
Up/Down overall
adjustment at Rate A
and Rate B
Activate the function by
tapping the [INH].
Condition group/single
mode selection (Gr. /Sngl)
The ON/OFF switch of
mixing is chosen.
Fine tuning
setting
ELEVATOR
ELEVATOR 2
V-TAIL
ELEVATOR
ELEVATOR 2
AILVATOR
FLP 2
(Camber Flap)
FLP 1
(Camber Flap)
Camber ap → ELE
Camber flap
→
ELE
Camber flap
→
ELE
[Corresponding model type]: Airplane/
glider, 2 ailerons + 1 ap or more
This mixing is used to correct changes (elevator
direction) generated when the camber aps (speed
aps) are used.
● The elevator servos up side/down side rate can be
adjusted. When the mixing direction is reversed
by the linkage, adjustments can be made by
changing the mixing rate polarity (+ or –).
● A mixing curve can be set.
● Mixing during ight can be turned ON/OFF by
setting a switch. (Always ON at [--] setting)
● The mixing rate can be ne-tuned by setting a VR.
Setting method
● Tap [INH].
(ON is displayed.)
● When setting a switch, tap to the [--] item
of the switch and tap the screen to call the
selection screen. Then, select the switch and
set its ON direction. (Always ON at "--" setting)
(For a description of the switch selection
method, see the description at the back of
this manual.)
● Tap elevator servos. Adjust the mixing rate.
*When the mixing direction is reversed by the linkage,
adjustments can be made by changing the mixing rate
polarity (+ or –).
● When setting a VR, tap the Fine tuning "--"
item and tap the screen to call the selection
screen, and then select the VR. The VR
operation mode can be selected.
● A mixing curve can be set.
(For a description of the curve setting
method, see the description at the back of
this manual.)

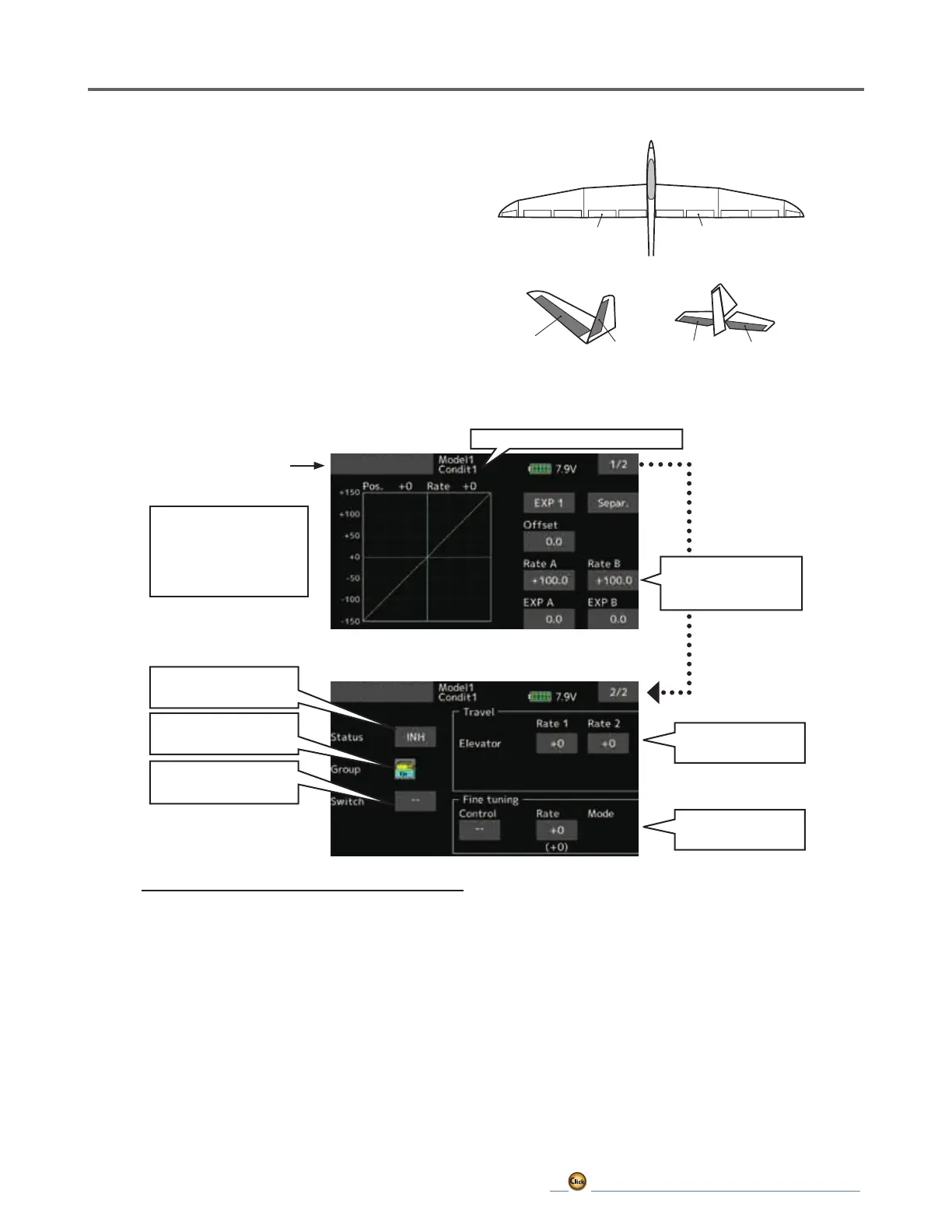

● Select [Camber flap→ELE] at the model
menu and call the setup screen shown
below.
●Return to Model menu
