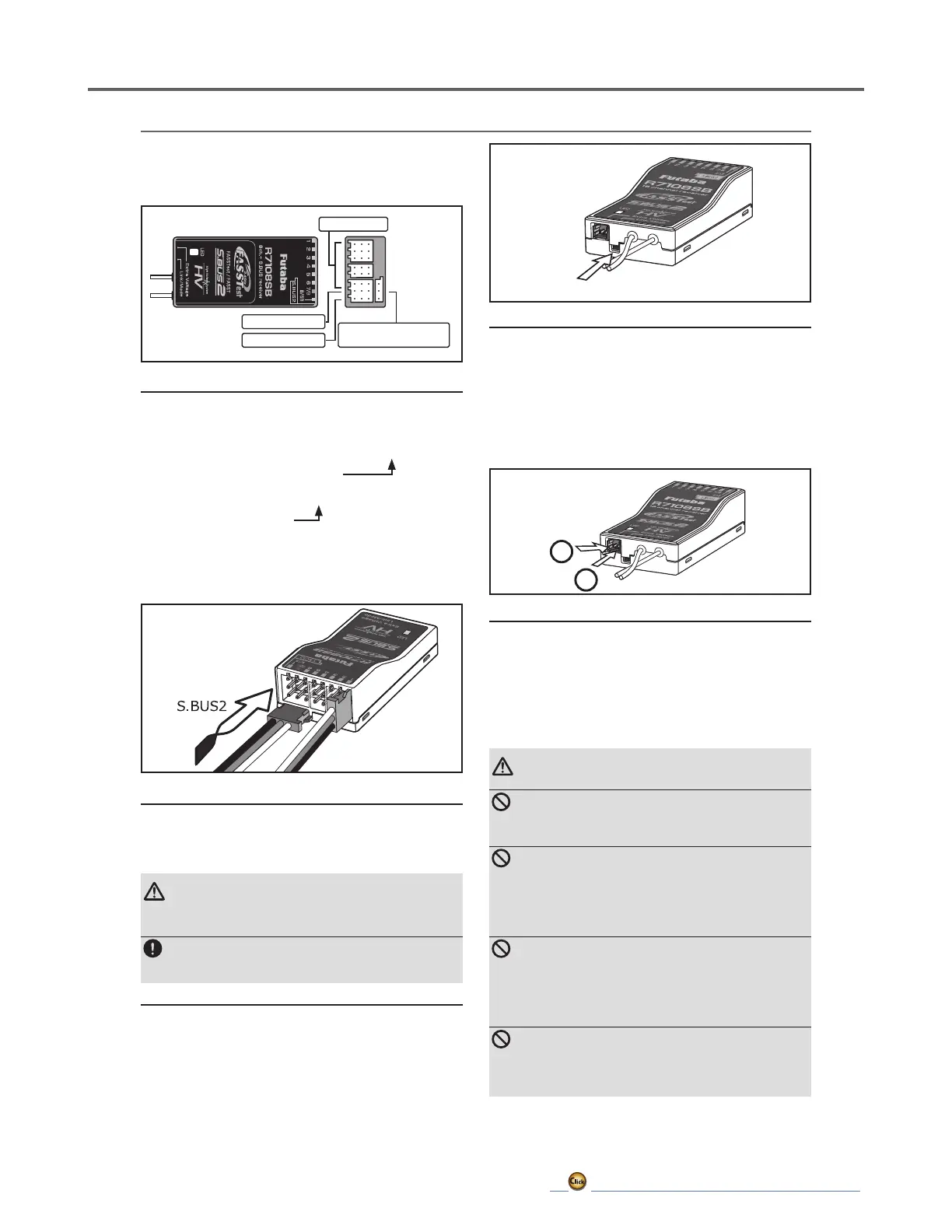

FUTABA T16IZ - ReceiverNomenclature

32
→ GO to TABLE OF CONTENTS
Link/Mode Switch
Use the small plastic screw driver that was included
with your receiver.
The Link/Mode Switch is also used for the CH
mode selection.
(The button is not used to link the transmitter and
receiver together. )
Extra Voltage Connector
Use this connector when using a voltage telemetry
device to send the battery voltage information (DC
0 ~ 70 V) from the receiver to the transmitter.
Please use the External voltage input cable.
(UBB0141) This connects directly to your main
motor batteries.
DANGER
Don't touch wiring.
* There is a danger of receiving an electric shock.
Do not short-circuit the battery
terminals.
* A short circuit across the battery terminals may cause
abnormal heating, re and burns.
Please double check your polarity (+ and
-) when hooking up your connectors.
* If + and - of wiring are mistaken, it will damage, ignite and
explode.
Don’ t connect to Extra Voltage before
turning on a receiver power supply.
Before using the receiver, be sure to read the
precautions listed in the following pages.
Connector
"1 through 6":outputs for the channels 1 through 6
"7/B": outputs of 7 channels and power.
"8/SB": outputs of 8 channels or S.BUS port.
[S.BUSSevoS.BUSGyro]
"S.BUS2": outputs of S.BUS2 port.
[TelemetrySensor]
*When using nine or more channels, use an S.BUS
function or use a second R7108SB and link both
to your transmitter.
Connector insertion
Firmly insert the connector in the direction shown
in the gure. Insert the S.BUS2 by turning it 90
degrees.
WARNING
S.BUS2connectors
Don't connect an S.BUS servo/gyro to
S.BUS2 connector.
LED Monitor
This monitor is used to check the CH mode of the
receiver.
Receiver Nomenclature
Link/Mode
Channels 1 ～ 6
Channel 7 / Battery
Channel 8 or S.BUS
S.BUS2 : Telemetry sensor
or S.BUS2 equipment
＋
－
