Aileron → Rudder
Aileron
→
Rudder
Aileron
→
Rudder
[Corresponding model type]:
Airplane/glider, general
Use this mix when you want to mix the rudders
with aileron operation.
● A mixing curve can be set.
● Mixing during ight can be turned ON/OFF by
setting a switch. (Always ON at [--] setting)
● The mixing rate can be ne-tuned by setting a VR.
Setting method
● Tap [INH].
(ON is displayed.)
● When setting a switch, tap to the [--] item
of the switch and tap the screen to call the
selection screen, and then select the switch
and set its ON direction. (Always ON at "--"
setting)
(For a description of the switch selection
method, see the back of this manual.
● When setting a VR, tap to the Fine Tuning
"--" item and tap the screen to call the
selection screen, and then select the VR. The
adjustment rate can be set. The VR operation
mode can also be selected.
● A mixing curve can be set.
(For a description of the curve setting
[Fine tuning VR operation mode]
[LIN.] Mixing rate 0% at center of VR.
When the VR is turned clockwise and
counterclockwise, the mixing rate
increases and decreases, respectively.
[ATL+] Mixing rate 0% at left end of VR.
When the VR is turned, the mixing rate
increases.
[ATL-] Mixing rate 0% at right end of VR.
When the VR is turned, the mixing rate
increases.
[SYM.] When the VR is turned to the left or
right of the neutral position, the mixing
rate increases.

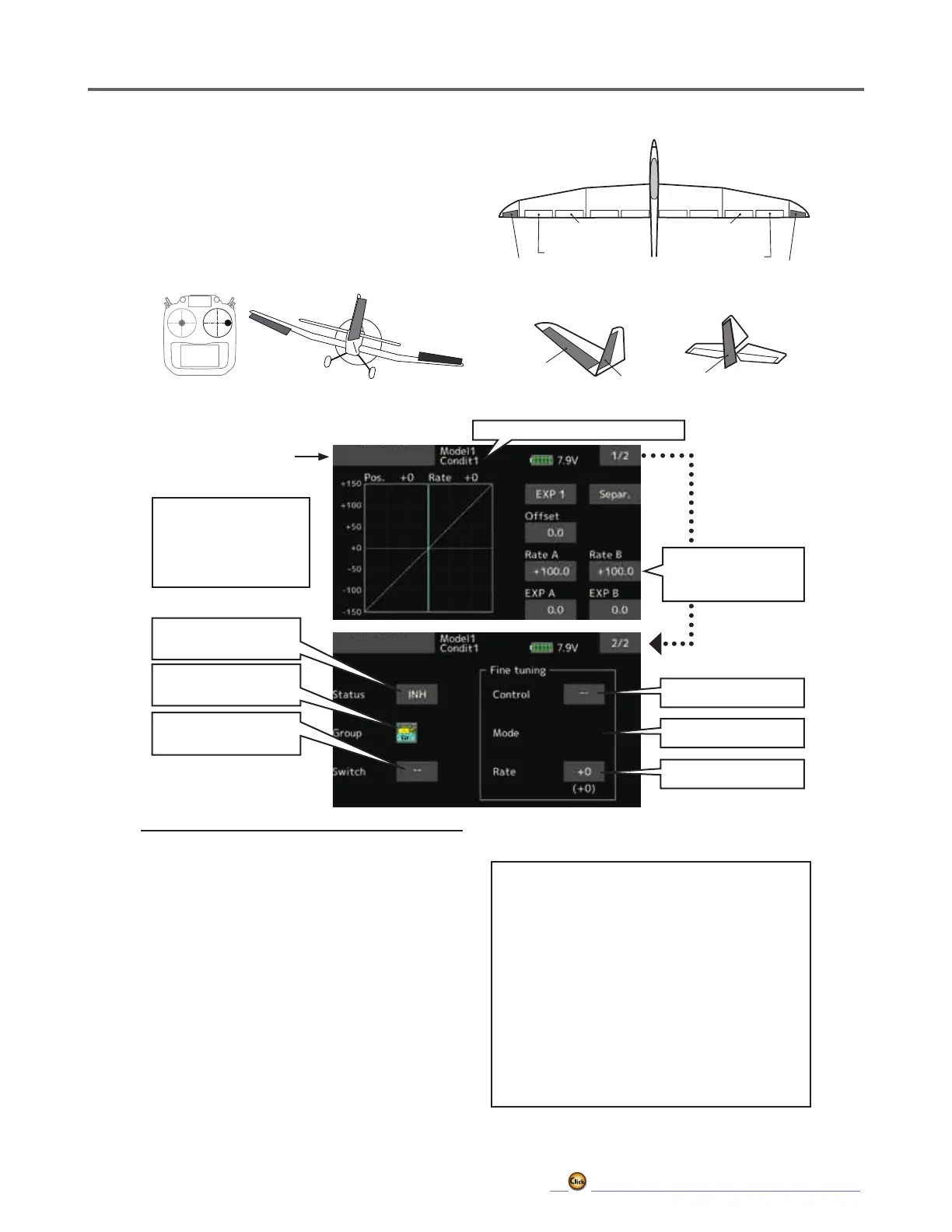

● Select [Aileron→ Rudder] at the
model menu and call the setup
screen shown below.
method, see the description at the back of
this manual.)
Currently selected condition name
● Mixing curve setting
(For a description of the
setting method, see the
description at the back
of this manual.)
Left/right overall
adjustment at Rate A
and Rate B
Activate the function by
tapping the [INH].
Condition group/single
mode selection (Gr. /Sngl)
The ON/OFF switch of
mixing is chosen.
Fine tuning VR setting
Operation mode
Adjustment rate
