S.BUS/S.BUS2 Installation
This set uses the S.BUS/S.BUS2 system. The wiring is as simplified and clean mounting as possible,
even with models that use a large number of servos. In addition, the wings can be quickly installed to the
fuselage without any erroneous wiring by the use of only one simple wire, even when there are a large
number of servos used.
●When using S.BUS/S.BUS2, special settings and mixes in your transmitter may be unnecessary.
●The S.BUS/S.BUS2 servos memorize the number of channels themselves. (settable with the T16IZ)
●The S.BUS/S.BUS2 system and conventional system (receiver conventional CH used) can be mixed.
Receiver: R7108SB
Battery: FR2F1800 ( Optional )
Switch: HSW-L
Throttle servo: BLS173SV ( Optional )
Aileron servo: BLS174SV×2 ( Optional )
Elevator servo: BLS173SV×2 ( Optional )
Rudder Servo: BLS175SV×1 ( Optional )
HUB×3 ( Optional )
Receiver: R7108SB
Servo: S3174SV×9 ( Optional )
HUB×4 ( Optional )

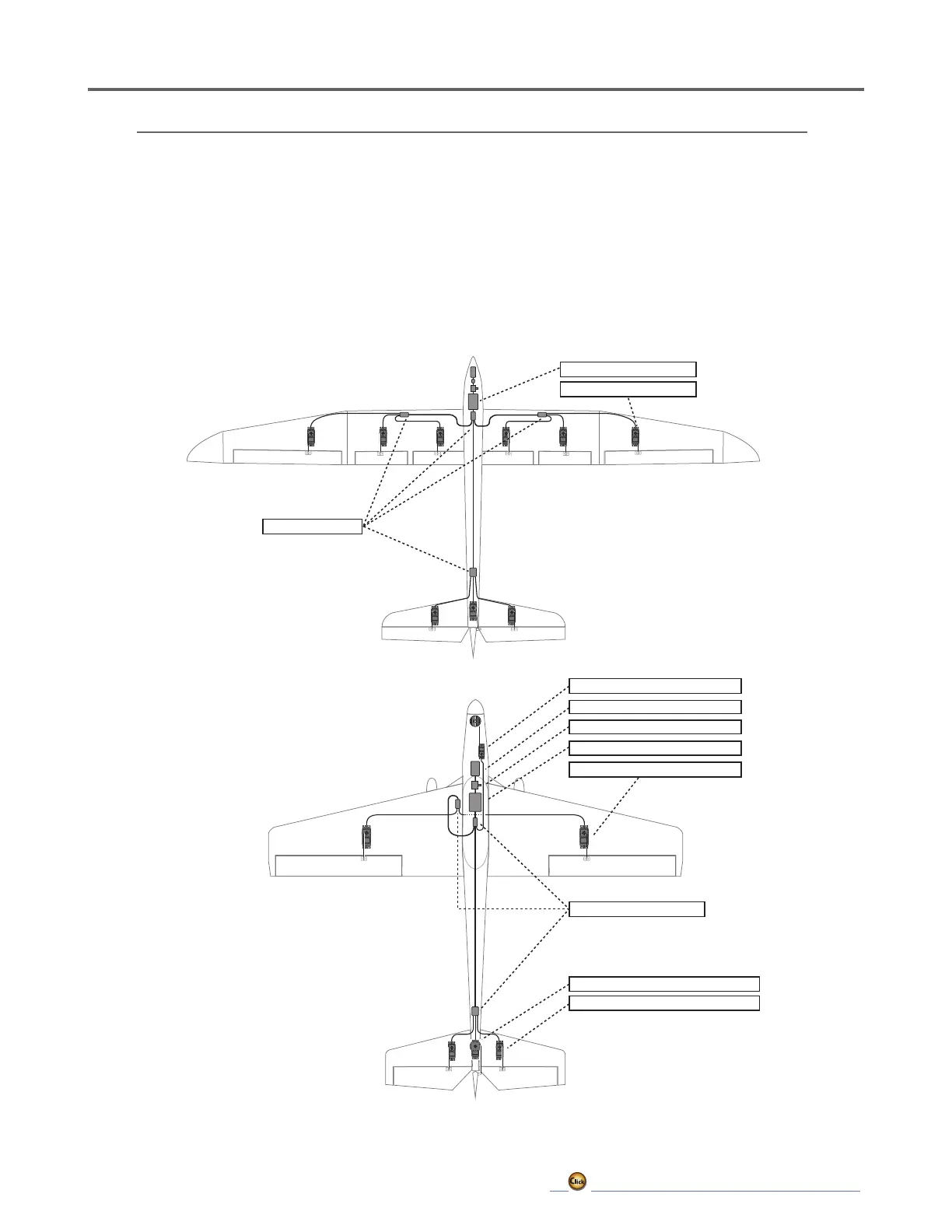

S.BUS Glider usage example
S.BUS Aerobatic plane usage example
