ELEVATOR
ELEVATOR 2
AILVATOR
AIR BRAKE
V-TAIL
ELEVATOR ELEVATOR 2
Airbrake → ELE
[Corresponding model type]:
Airplane/glider, general
This mix is used when you want to mix the
elevators with airbrake (spoiler) operation. It
raises the elevators to correct for dropping of the
nose during airbrake operation.
*This function does not operate when airbrake is not assigned
at the Function menu in the Linkage menu.
● The Rate 1 side/Rate 2 side mixing rate with the
elevator servos can be adjusted.
● A mixing curve can be set.
● Mixing during ight can be turned ON/OFF by
setting a switch. (Always ON at [--] setting)
● The mixing rate can be ne-tuned by setting a VR.

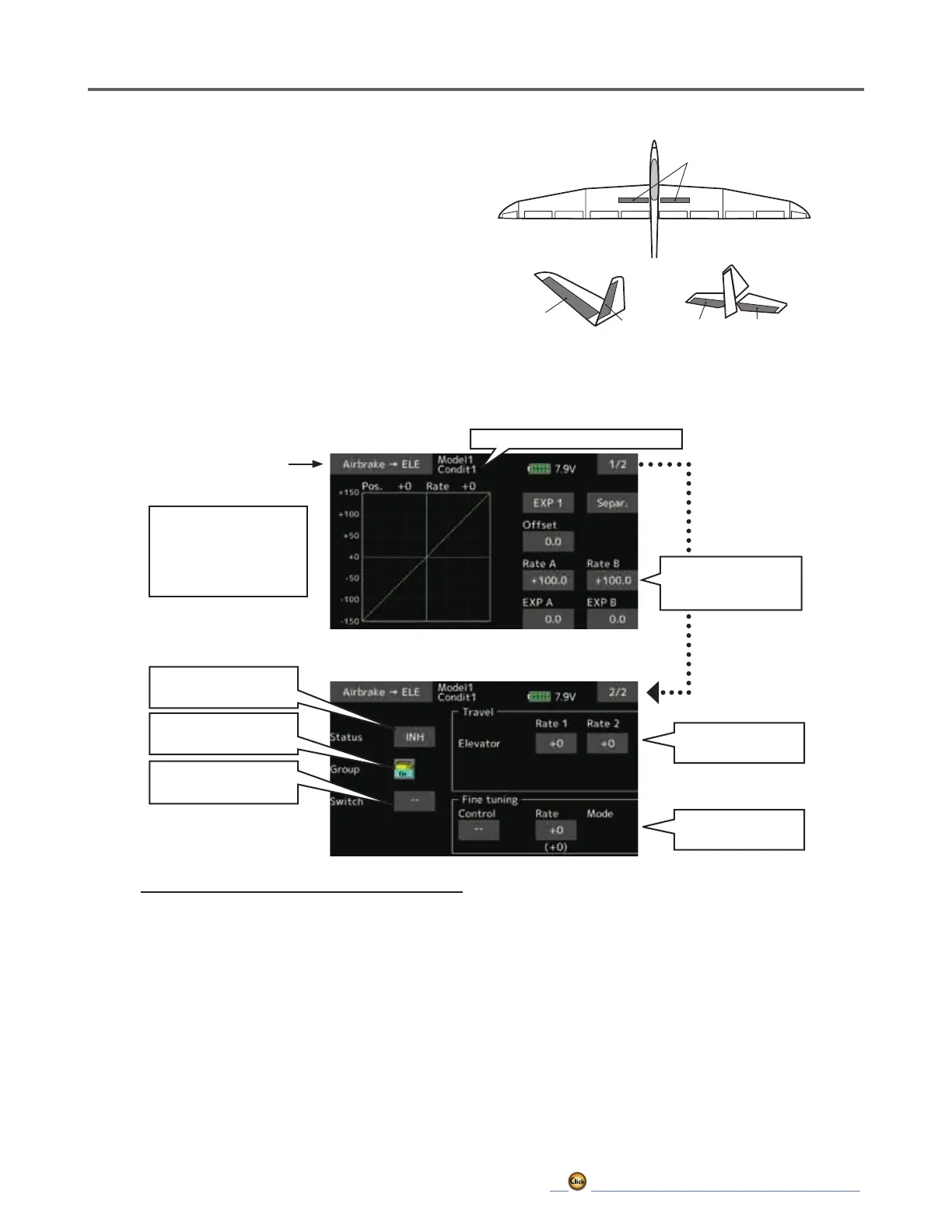

● Select [Airbrake→ ELE] at the model
menu and call the setup screen shown
below.
*The display screen is an example. The actual
screen depends on the model type.
Adjustment of
elevator servo
Currently selected condition name
● Mixing curve setting
(For a description of the
setting method, see the
description at the back
of this manual.)
Up/Down overall
adjustment at Rate A
and Rate B
Activate the function by
tapping the [INH].
Condition group/single
mode selection (Gr. /Sngl)
The ON/OFF switch of
mixing is chosen.
Fine tuning
setting
Setting method
● Tap [INH].
(ON is displayed.)
● When setting a switch, tap the [--] item of
the switch and tap the screen to call the
selection screen, and then select the switch
and set its ON direction. (Always ON at "--"
setting)
(For a description of the switch selection
method, see the description at the back of
this manual.
● When setting a VR, tap the Fine tuning
"--" item and tap the screen to call the
selection screen, and then select the VR. The
adjustment rate can be set. The VR operation
mode can also be set.
(For a description of the ne tuning VR setting
method, see the description at the back of
this manual.)
● A mixing curve can be set.
(For a description of the curve setting
method, see the description at the back of
this manual.)
●Return to Model menu
