RS-422-Auxiliary Port
Standard connector and cable when DMC-41x3 is ordered with RS-422 Option.
Pin Signal
1 CTS-
2 RXD-
3 TXD-
4 RTS-
5 GND
6 CTS+
7 RXD+
8 TXD+
9 RTS+
Part number ordering example: DMC-4113-CARD(P2422)
ETL – ETL Certified DMC-41x3
The DMC-41x3 can be ordered in a configuration that is ETL listed. ETL Mark is shown in Figure A.2.
Part number ordering example: DMC-4143-BOX4(ETL)
MO – Motor Off Jumpers Installed
When a jumper is installed on the “MO” pins, the controller will be powered up in the “motor off” state. This
option will cause jumper to be installed at the factory.
Part number ordering example: DMC-4123-BOX4(MO)-D3520
INVELO – Inverted ELO (Electronic Lock-Out) Logic
This option will invert the logic for the ELO input. With this option, current flowing through the ELO circuit
(normally closed) is normal operation and will allow Galil internal amplifiers to be powered. An open circuit or no
current flowing will activate the ELO and cut power to the amplifier. If a 5 thru 8 axis unit is ordered, the inverted
logic will apply to both amplifiers.
Part number ordering example: DMC-4123-BOX4(INVELO)-D3520
Appendices ▫ 169 DMC-41x3 User Manual

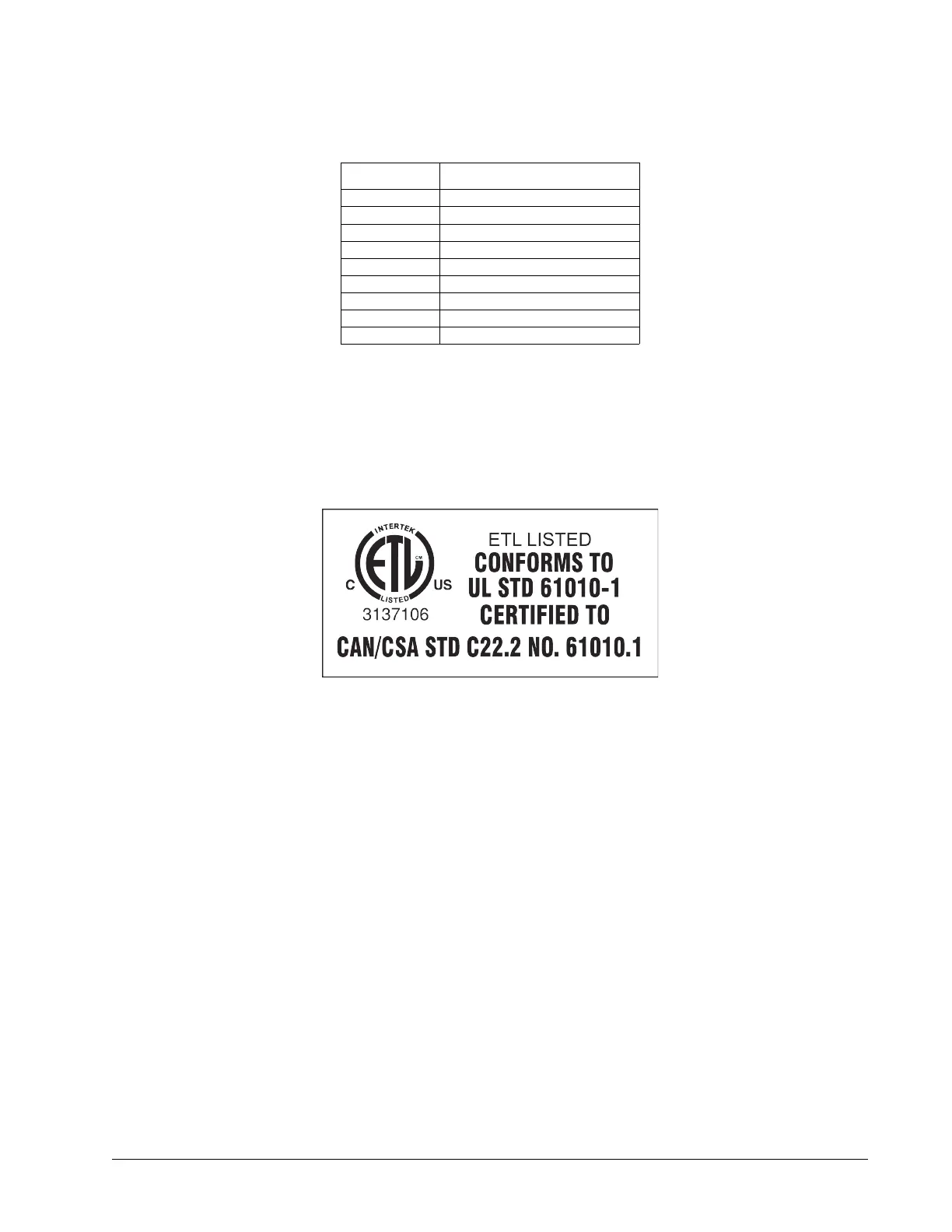

Figure A.2: ETL Mark with (ETL) Option
