Garmin G1000 Line Maintenance Manual

______________________________________________________________________________
____________________________________________________________________________
LMM for the Kodiak 100 Page 7-3
190-02102-00 Rev.4
7.2 GIA 64W/63W Testing
7.2.1 GPS Signal Acquisition

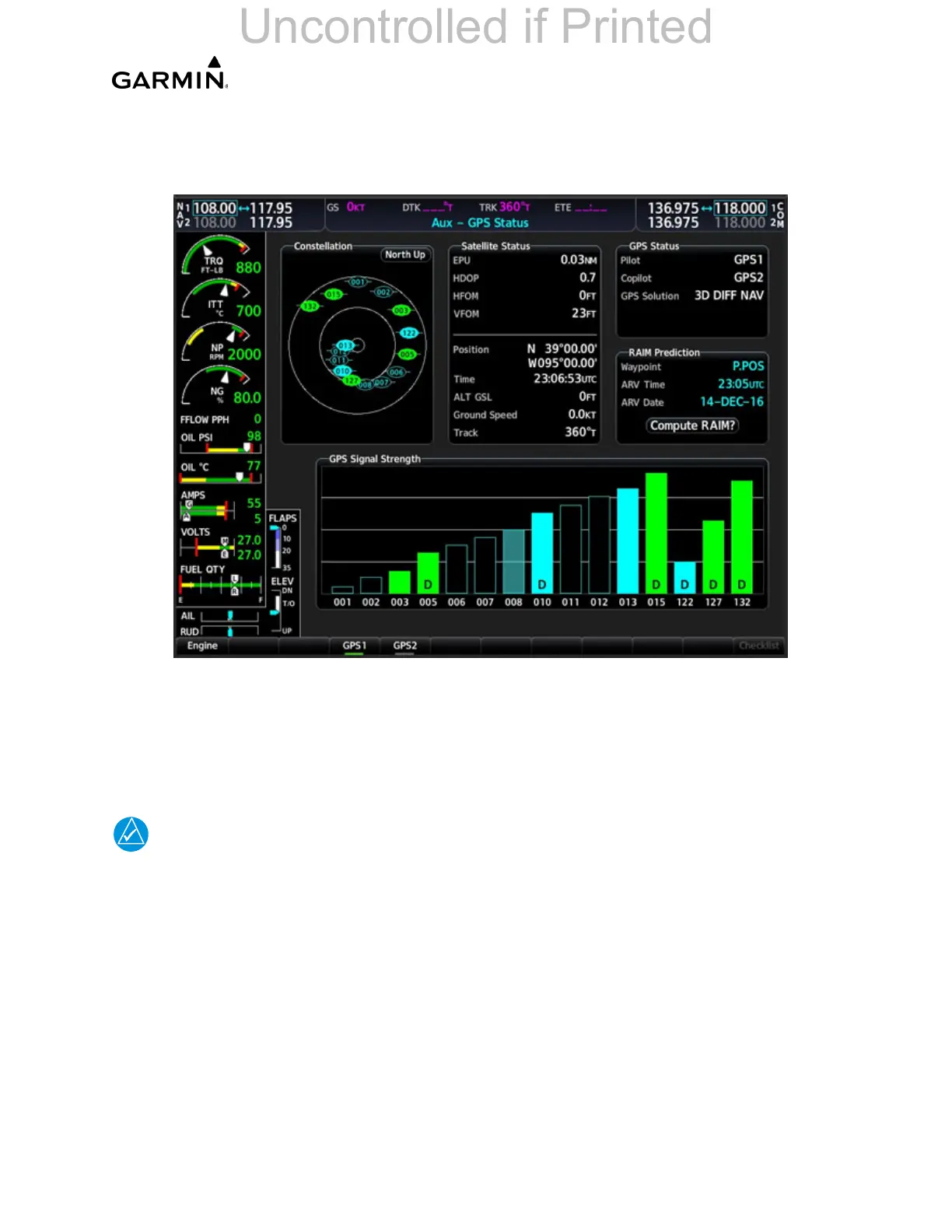

Figure 7-2. Aux - GPS Status Page (MFD)
The GIA units should normally acquire a GPS navigation solution within 5 to 10 minutes
of startup, provided the aircraft is outside (or indoors with a GPS repeater). Select the
Aux - GPS Status page on the MFD. Two softkeys on the bottom of the display allow the
user to toggle between GPS 1 and GPS 2. Make sure both receivers show 3D DIFF NAV
on the MFD.
NOTE
It may be necessary to temporarily disable or move away from GPS repeat-
ers while testing, since repeaters may adversely affect GPS receiver per-
formance.
Uncontrolled if Printed

Garmin G1000 Specifications

General

Display Type	LCD
Primary Flight Display (PFD)	Yes
Multi-Function Display (MFD)	Yes
Terrain Awareness	Yes
Autopilot Integration	Yes
Integrated Flight Deck System	Yes
Weather Radar	Optional
Traffic Advisory System (TAS)	Optional
Terrain Awareness and Warning System (TAWS)	Yes
Resolution	1024 x 768 pixels
Weather Data	Yes
Navigation	Yes
AHRS	Yes
Air Data Computer (ADC)	Yes
Interfaces	ARINC 429, RS-232
Certification	TSO certified
Traffic Information	Optional (requires ADS-B or TCAS)
