LMM for the Kodiak 100 Page 7-35
190-02102-00 Rev.4
27. If the bearing is not as anticipated, recheck the antenna coaxial connections by
verifying the following:
• QMA connectors are 'snapped' firmly in place.
• Connections are made to the proper channels and color-coded heat shrink is
the same color on both ends of cable QMA connectors are correctly installed
on cables.
• Correct antenna type is selected in the configuration.
NOTE
If multiple targets are displayed during the antenna tests, recheck the
antenna coaxial connections.
7.10 GWX Processor Testing
Perform an operational check by pressing each softkey on the Map-Weather Radar
Screen (MFD-normal mode) for the proper operation of each function (see Figure 7-13).
Ensure no abnormal or non-working annunciations or messages are displayed on the
MFD Weather Radar Screen when testing each softkey. Refer to the Kodiak Pilot's Guide
for a complete description of the GWX features and operation using the softkeys.

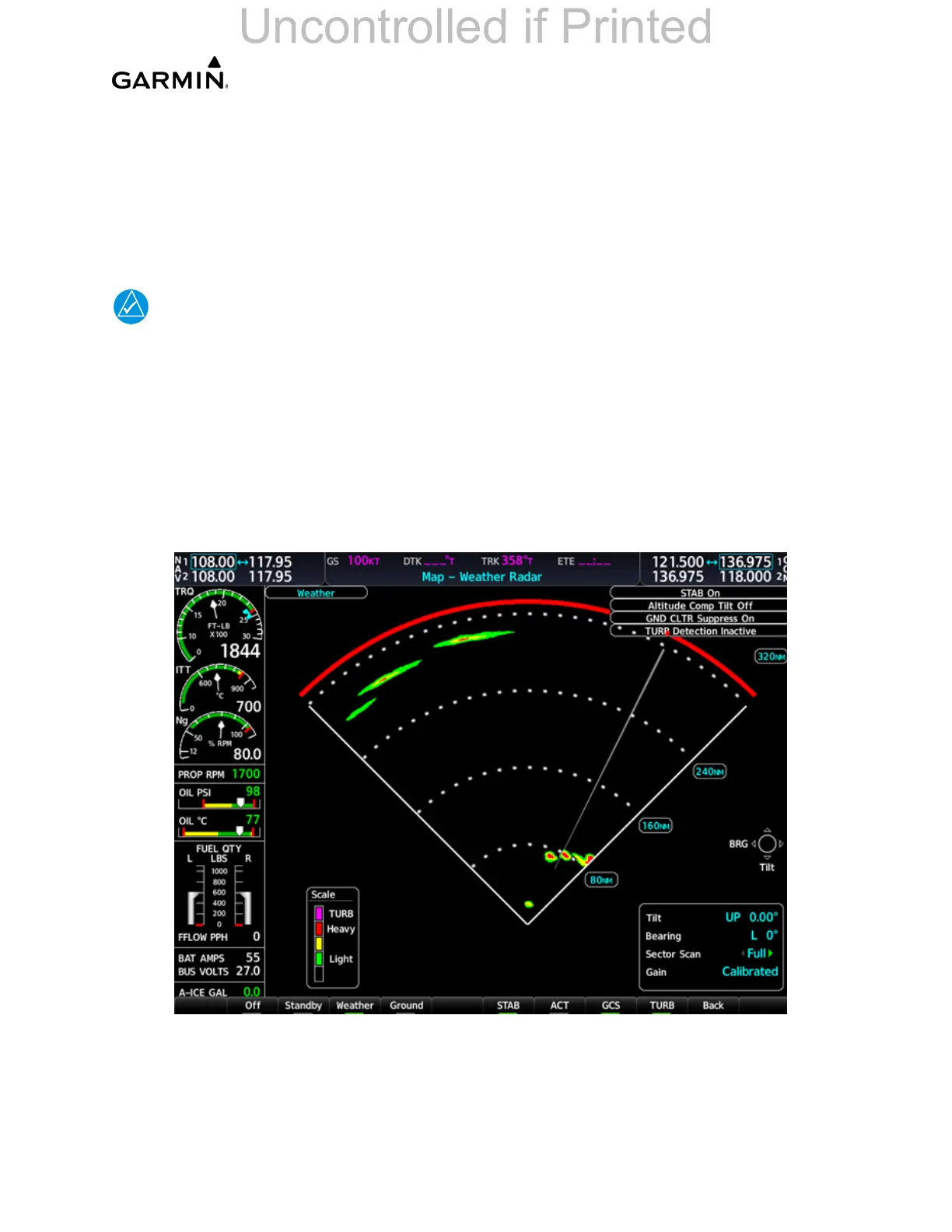

Figure 7-13. Weather Radar Screen
Uncontrolled if Printed
