LMM for the Kodiak 100 Page 4-67
190-02102-00 Rev.4
4.7.7 GWX Processor Troubleshooting

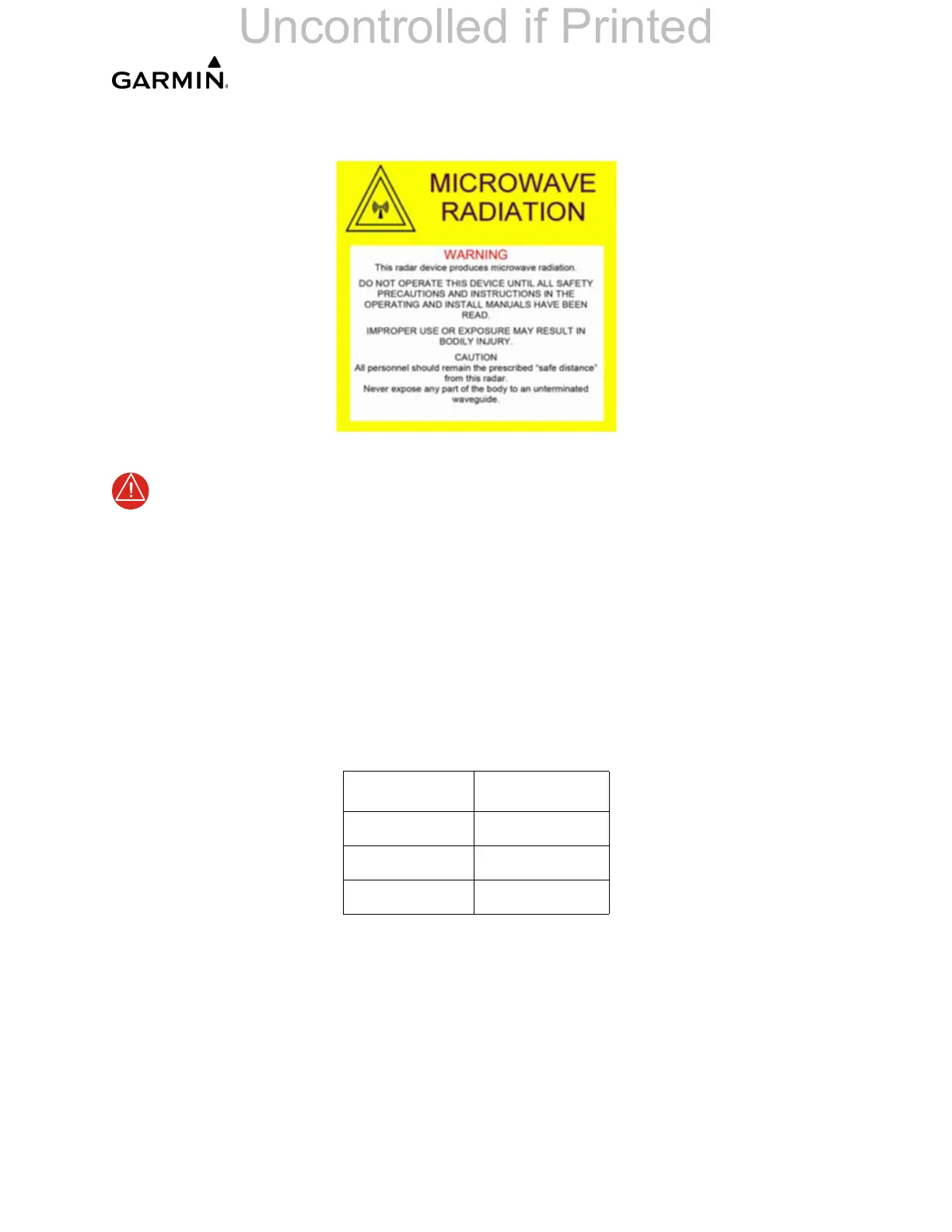

Figure 4-13.
WARNING
SAFE DISTANCE DETERMINATION - THE FOLLOWING INFORMATION
ESTABLISHES A MINIMUM SAFE DISTANCE FROM THE ANTENNA
FOR PERSONNEL NEAR AN OPERATING AIRBORNE WEATHER
RADAR. THE MINIMUM SAFE DISTANCE IS BASED UPON THE FCC
EXPOSURE LIMIT AT 9.3 TO 9.5 GHZ FOR GENERAL POPULATION/
UNCONTROLLED ENVIRONMENTS WHICH IS 10 MW/CM2. SEE ADVI-
SORY CIRCULAR 20-68B FOR MORE INFORMATION ON SAFE DIS-
TANCE DETERMINATION. THE GWX PROCESSOR SAFE DISTANCE
DETERMINATION GIVEN IN Table 4-9 IS BASED ON LOWER EXPO-
SURE LIMITS OF 1 MW/CM2 THAN WHAT IS SPECIFIED IN AC 20-68B.
Table 4-9. Safe Distance Determination
Antenna Size Safe Distance
10” 7.4 ft
12” 9.6 ft
18” 14 ft
Uncontrolled if Printed

Garmin G1000 Specifications

General

Display Type	LCD
Primary Flight Display (PFD)	Yes
Multi-Function Display (MFD)	Yes
Terrain Awareness	Yes
Autopilot Integration	Yes
Integrated Flight Deck System	Yes
Weather Radar	Optional
Traffic Advisory System (TAS)	Optional
Terrain Awareness and Warning System (TAWS)	Yes
Resolution	1024 x 768 pixels
Weather Data	Yes
Navigation	Yes
AHRS	Yes
Air Data Computer (ADC)	Yes
Interfaces	ARINC 429, RS-232
Certification	TSO certified
Traffic Information	Optional (requires ADS-B or TCAS)
