12. Make sure the status on the MFD SETUP 2 page Stability & Protection window is
DISABLED.
13. Make sure on PFD 1 and PFD 2 the ESP Roll Indexes are not displayed at 45° on
the roll indicator on the Attitude Display.

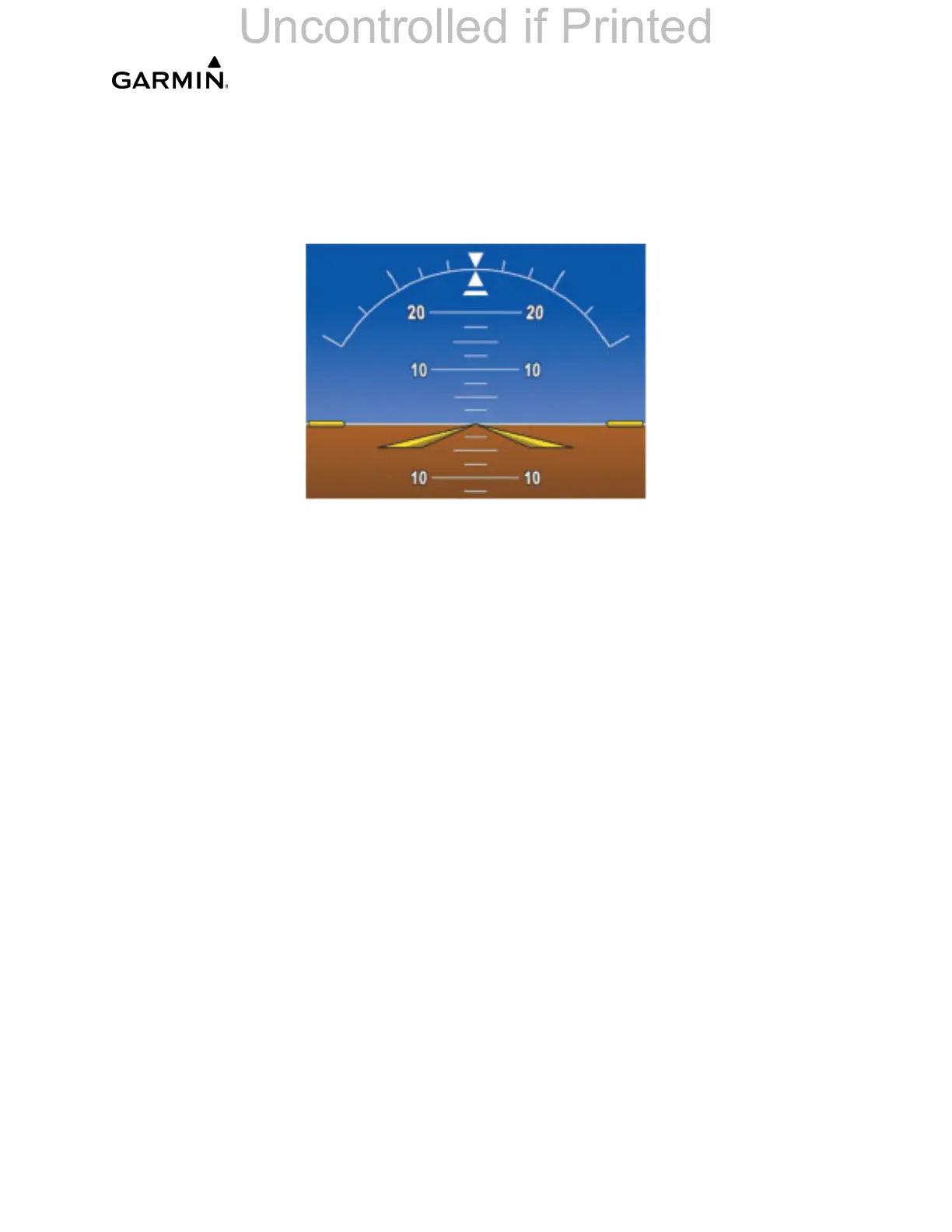

Figure 7-18. No ESP Roll Engagement Indication
14. Make sure on PFD 1 and PFD 2 that there is an ESP OFF alert message (Press
Softkey 12).
15. On the MFD, turn the inner FMS knob to activate the AUX - SYSTEM SETUP
page.
16. On the MFD AUX - SYSTEM SETUP page press the SETUP 2 softkey.
17. Verify that on the MFD SETUP 2 page there is a window for Stability & Protection
and the status is ENABLED. Verify on PFD 1 and PFD 2 that there are no ESP
FAIL, ESP OFF, or ESP DEGRADE alert messages.
18. Once AFCS PFT is complete and GPS has acquired satellites, verify on PFD1
and PFD2 the ESP Roll Indexes are not displayed at 45° on the roll indicator on
the Attitude Display.
19. On the GMC 710, couple the Flight Director to the right side by pressing the XFR
button. The arrow that is illuminated indicates which side is coupled. No flight
director modes should be active at this time.
