CHAPTER 3: Replacing notebook components
96
9 Remove the screws that secure the LCD panel to the LCD panel lid.
10 Remove the inverter by following the steps in “Replacing the inverter” on page 82.
11 Disconnect the web cam by following the steps in “Replacing the webcam” on
page 85. You do not need to remove the web cam.
12 Remove the old LCD panel from the LCD panel lid.
13 Place the new LCD panel into the LCD panel lid.
14 Reconnect the web cam by following the steps in “Replacing the webcam” on
page 85.
15 Replace the inverter by following the steps in “Replacing the inverter” on page 82.
16 Feed the wiring back into the hinge channels.
17 Replace the screws that were removed in Step 9.
18 Make sure that the magnet has remained in the magnet bracket.
19 Press the LCD panel front and back together. Press the two halves together in several
places until they click in place. You should find no loose spots or spots where the
two halves do not meet.
20 Replace the LCD panel assembly screws removed in Step 7.
21 Replace the rubber inserts removed in Step 6.
22 Replace the LCD assembly by following the steps in “Replacing the LCD assembly”
on page 91.

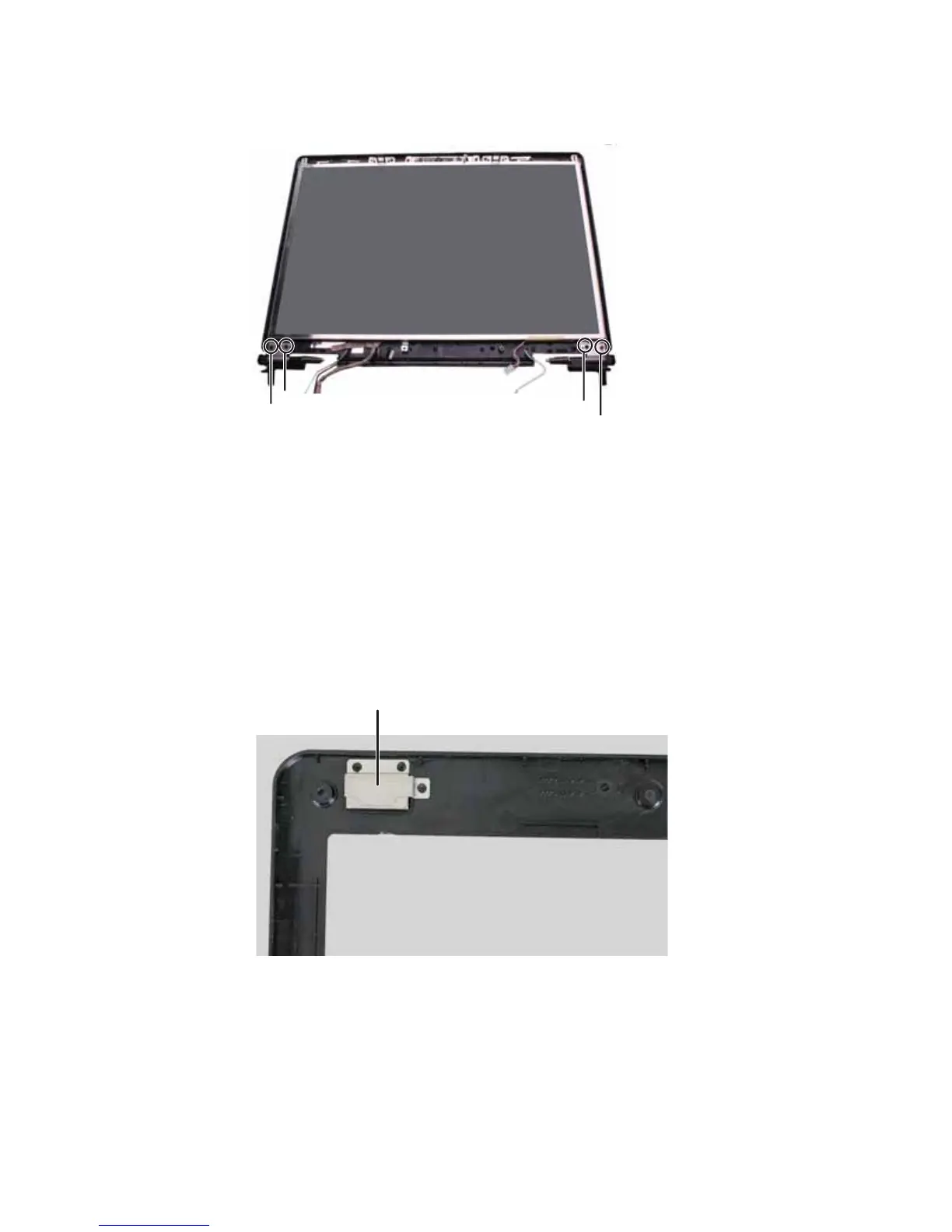

Screw
Screw
Screw
Screw
Magnet bracket and magnet
