Ventilation fan Helps cool internal components.
Warning: Do not work with the notebook resting on your lap.
If the air vents are blocked, the notebook may become hot
enough to harm your skin.
Caution: Do not block or insert objects into these slots. If these
slots are blocked, your notebook may overheat resulting in
unexpected shutdown or permanent damage to the notebook.
Caution: Provide adequate space around your notebook so air
vents are not obstructed. Do not use the notebook on a bed,
sofa, rug, or other similar surface.
DVD drive Insert CDs or DVDs into this drive.
Component Icon Description
Memory card
reader
Insert a memory card from a digital camera, MP3 player, PDA,
or cellular telephone into the memory card reader. The
memory card reader supports Memory Stick
®
, Memory Stick
Pro
®
, Mini Secure Digital
®
, MultiMediaCard™,
RS-MultiMediaCard™, Secure Digital™, and xD-Picture Card™
cards.
IEEE 1394 port
(optional)
Plug an IEEE 1394 (also known as Firewire
®
or i.Link
®
) device
(such as a digital camcorder or MP3 player) into this optional
4-pin IEEE 1394 port.
Express Card slot Insert one Type 54 Express Card into this slot.
Headphone jack Plug amplified speakers or headphones into this jack. The
built-in speakers are turned off when speakers or headphones
are plugged into this jack.
Microphone jack Plug a microphone into this jack. The built-in microphone is
turned off while an external microphone is connected.
USB port Plug a USB device (such as a diskette drive, flash drive, printer,
scanner, camera, keyboard, or mouse) into this port.
Ethernet jack Plug an Ethernet network cable into this jack. Plug the other
end of the cable into a cable modem, DSL modem, or an
Ethernet network jack.
HDMI out jack
(optional)
HDMI Plug an HDMI device, such as a high definition television, into
this optional jack.

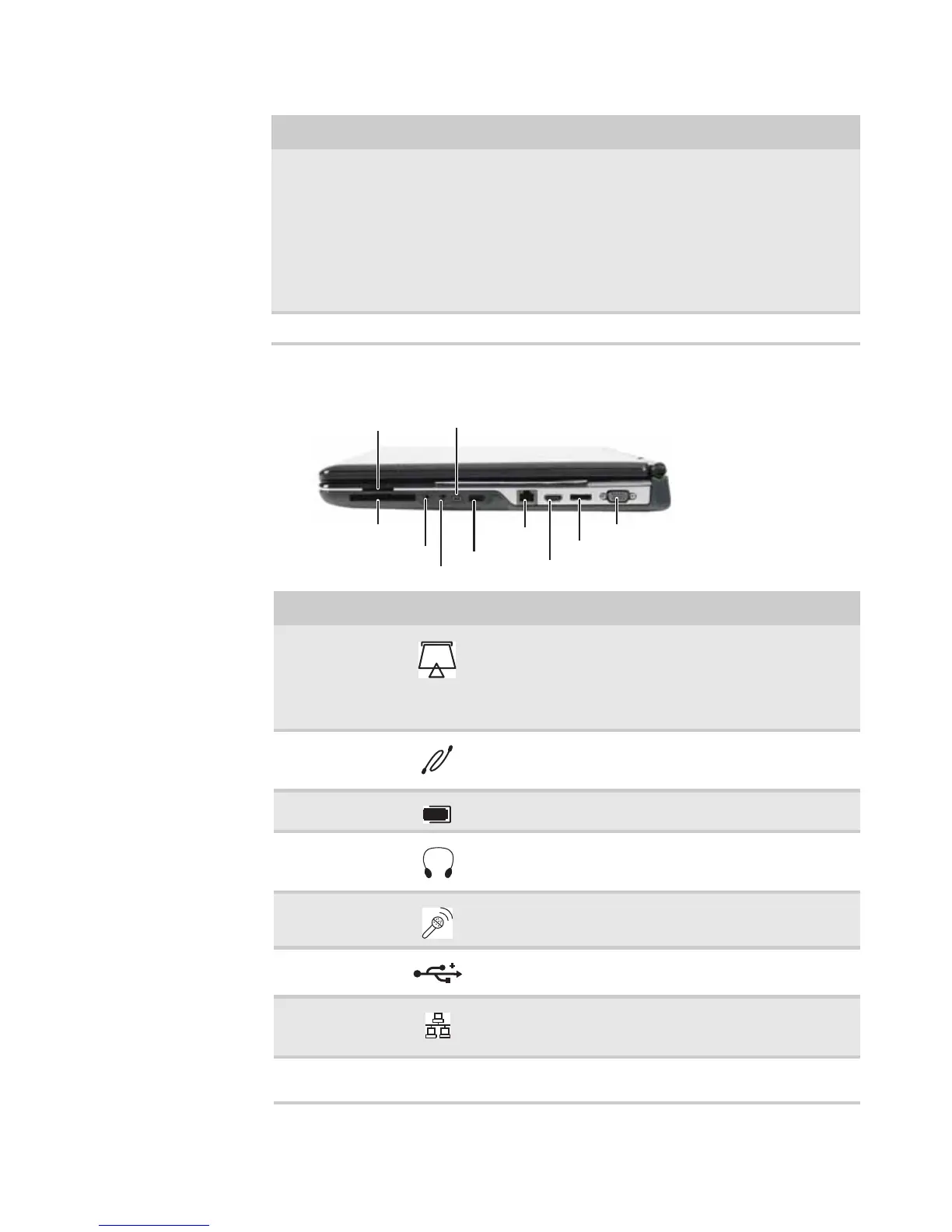

Component Icon Description
IEEE 1394 port
Express Card slot
USB port
Memory card reader
Ethernet jack
Microphone jack
Headphone jack
HDMI out jack
eSATA jack
Monitor port
