Gateway MG1 - System Board Top Connectors; System Board Bottom Connectors

CHAPTER 5: Connector locations
162

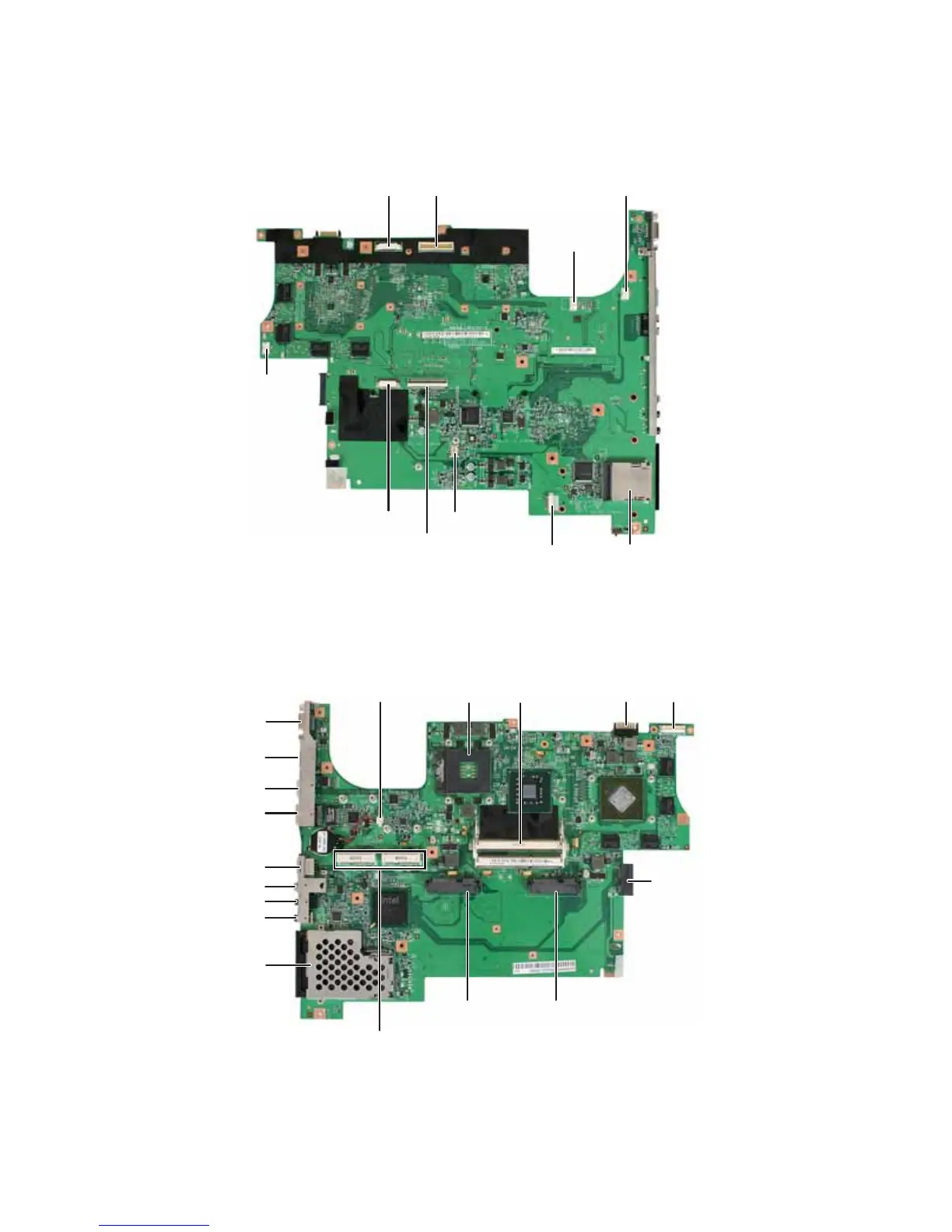

System board top connectors
System board bottom connectors
LCD connector
Speaker connector
Multimedia keyboard
cover connector
Keyboard connector
Bluetooth connector
Memory card slot
Modem connector
Fan connector
Touchpad connector
Fan connector
USB-PCB connector
ExpressCard slot
Mini Card connectors
eSATA connector
CPU socket
USB connector
Ethernet connector
HDMI connector
Battery
connector
SATA ODD connector
SATA HDD connector
VGA connector
CMOS battery
Memory card slots
SATA HDD connector
IEEE 1394 connector
Microphone jack
Headphone jack
