www.gateway.com
131

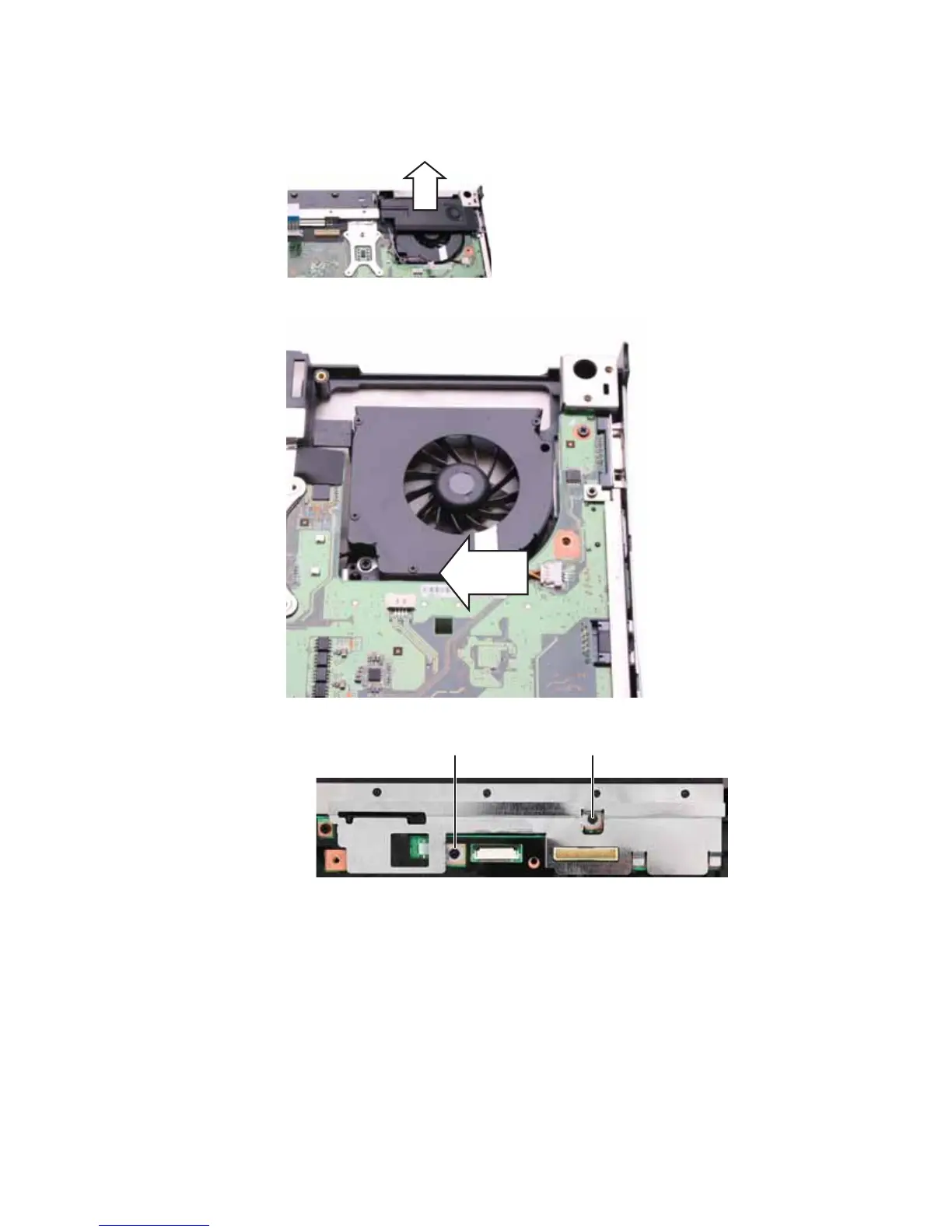

16 Remove the screw holding the right speaker to the notebook, then remove the
speaker.
17 Unplug the fan(s) from the system board.
18 Remove the optional EMI shield screws.
Screw
Screw
