CHAPTER 3: Replacing notebook components
84

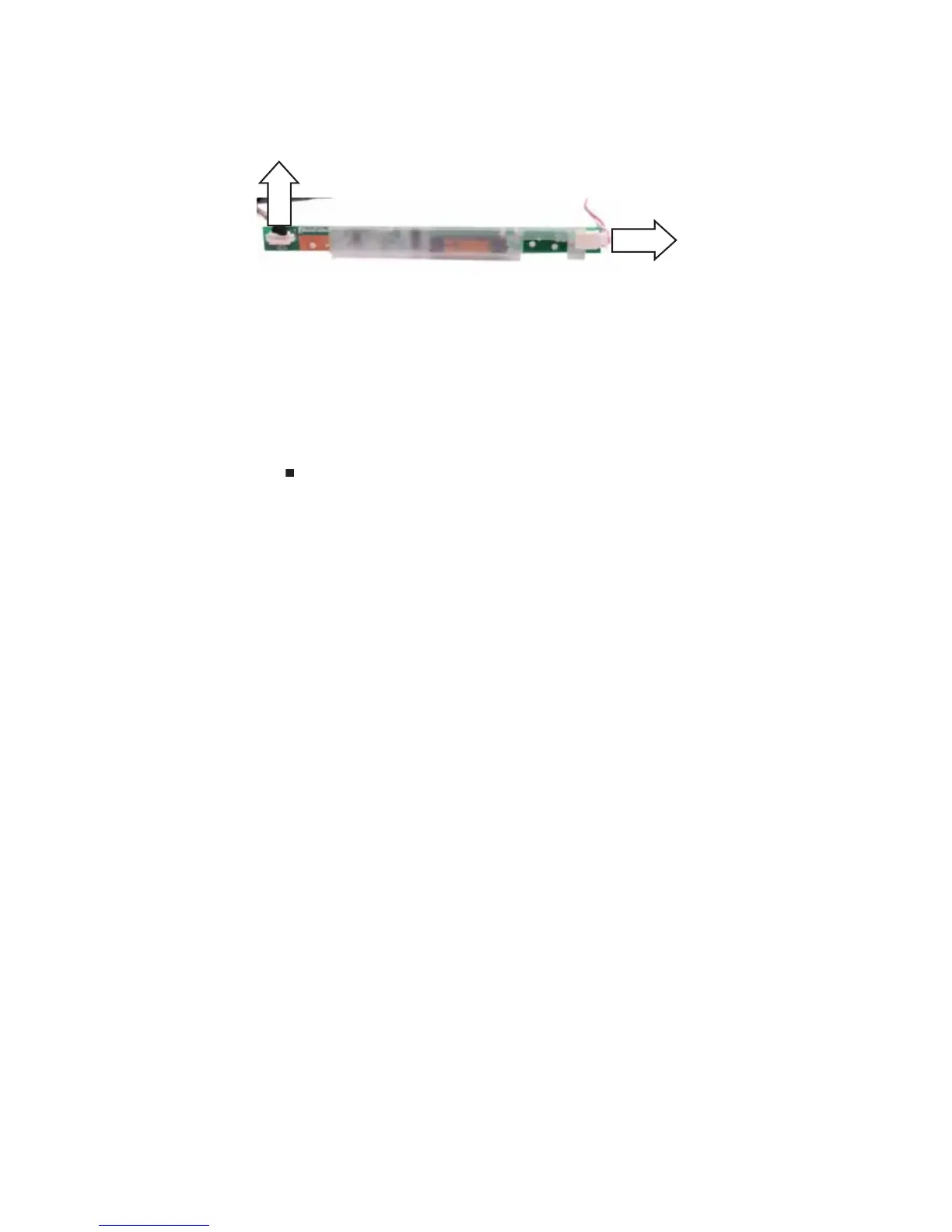

9 Disconnect the connectors from the old inverter and connect them to the new
inverter.
10 Align the new inverter with the screw holes, then replace the screws removed in
Step 7.
11 Press the LCD panel front and back together. Press the two halves together in several
places until they click in place. You should find no loose spots or spots where the
two halves do not meet.
12 Replace the LCD panel assembly screws removed in Step 5.
13 Replace the rubber inserts removed in Step 4.
14 Replace the keyboard cover by following the steps in “Replacing the keyboard
cover” on page 76.
