This chapter deals with component replacement and maintenance of the Puma Cutting Plot
ter. It gives
detailed step-by-step instruction on how to replace or adjust the components of this machine.
Components
Replacement
and
Belt
Tension
Adjustment
Removing
the
Front,
Back,
End
and
Top
Covers
The
following steps are those involved in removal of the fro nt, back, end and top covers.

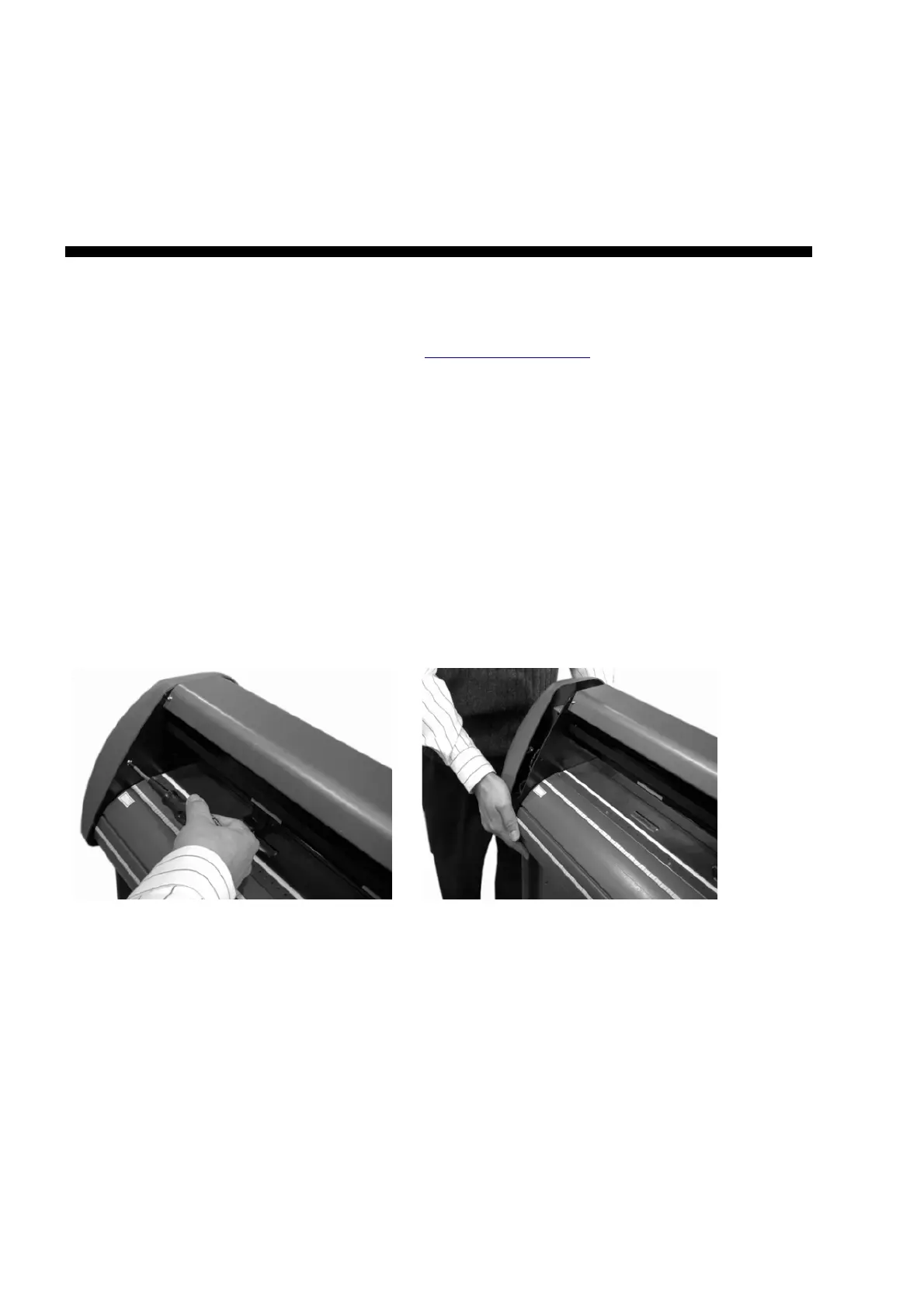

To Remove the End Covers:
1. Remove the end cover screws. 2. Put equal pressure on both
sides of the End Cover and pull to
remove.
