Diagnostic
Test
for
Width
Sensor
If
the sensor is faulty, the cutter cannot sense the media width correctly. Refer to the maintenance chapter to replace it. You
must first move the tool carriage to the rightmost position; the lever must be down to do this. Once this is done please move
the tool carriage to left. Be careful when moving the tool carriage close to the pinch roller, since the message changes
quickly when sensor is between on and off.

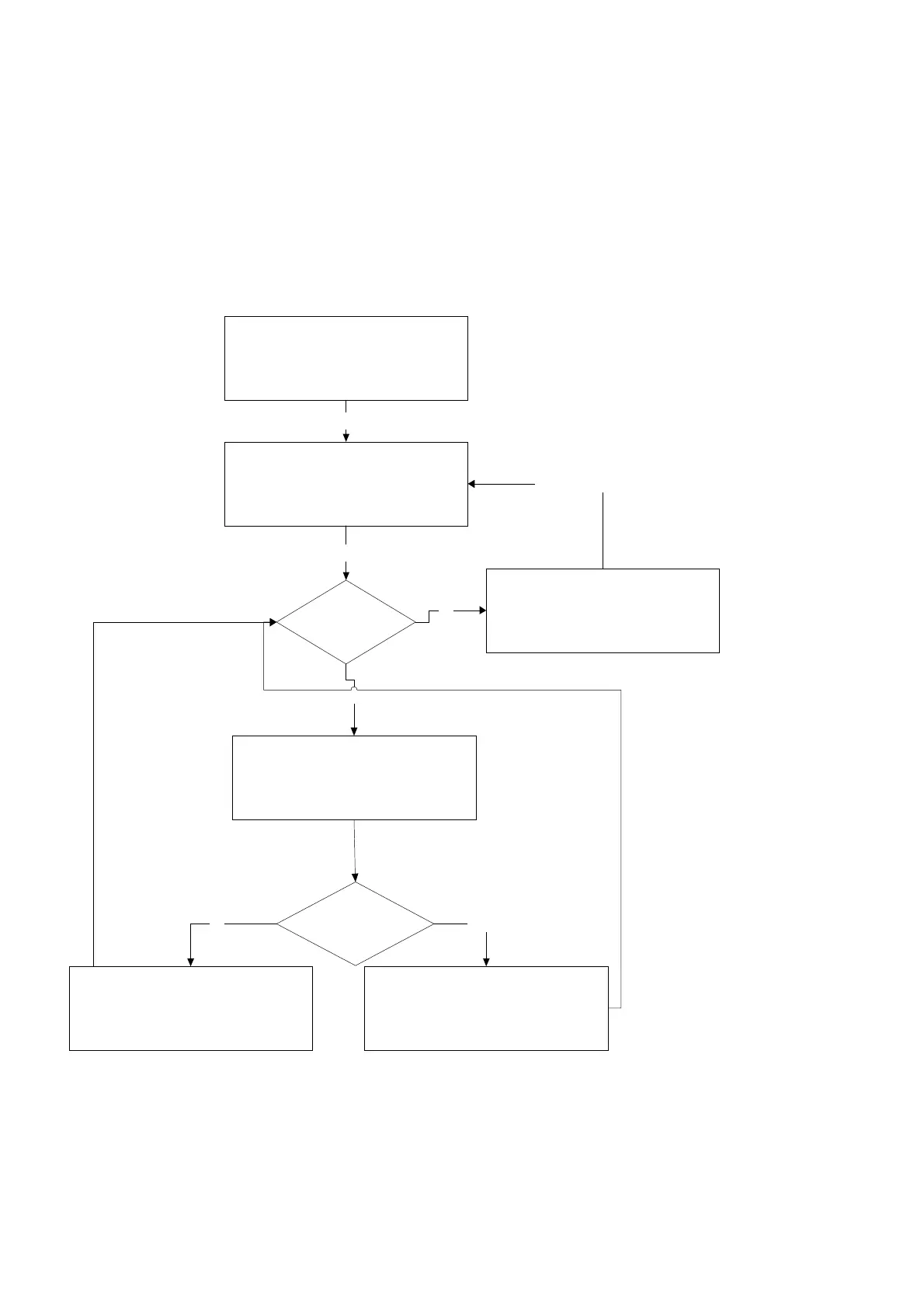

Check Width Sensor ?
Enter
Key
Move Carriage
To
Rightmost
delay
3
seconds
delay 3 seconds
No
Lever up or not?
Now Lever is Up
Lower the lever
Yes
Move Carriage Slowly
To Left Hard Stop
Pinch Roller Sensor
No
Yes
on
or
not
Now Sensor is off
Move Carriage Slowly
Now Sensor is On
Move Carriage Slowly
To Next Page
