Diagnostic Test for Motor Encoder and Tool Holder Encoder
This
feature provides the ability to diagnose the X a nd Y motor encoder and tool holder encoder. If the encoder is
defective, the cutting plotter cannot work properly. To check if the encoder is bad or good, you can apply a slight force to
the tested part (such as a drum, the tool carriage or the tool holder) then examine the readings. If the encoder reading
changes dramatically, the encoder is bad. Refer to the maintenance chapter to replace the motor or tool carriage.

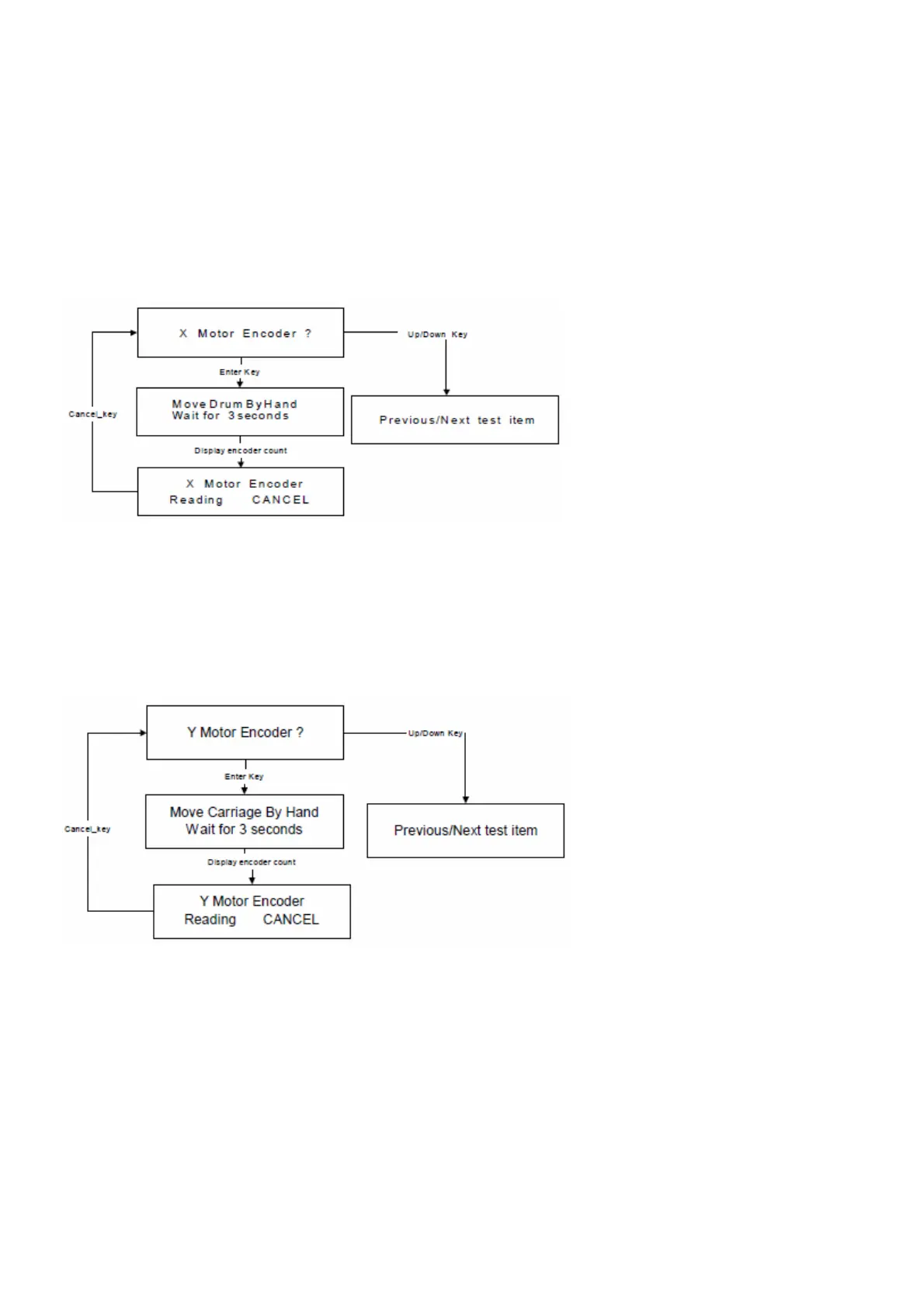

X Motor Encoder Test
To Next Page
