Replacing
the
Y-Motor
The
following
steps
are
t
hose
involved
in
the
replacement
of
the
Y-motor:

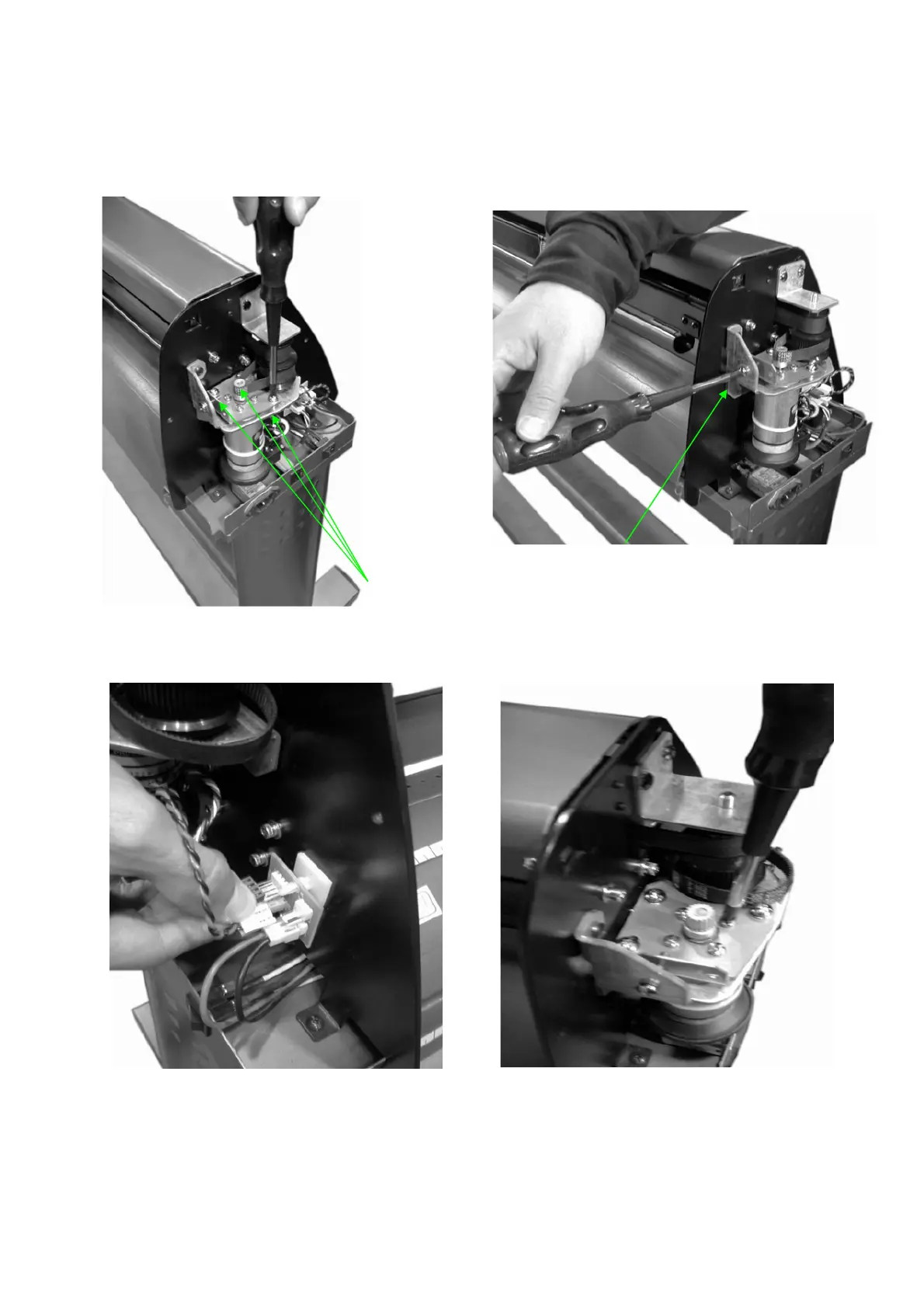

1.
Loosen the all 3 tension-bracket retaining screws
as well as the tension adjustment screw, but do
not remove them.
2.
Depress
the
jumper
clips,
and
pull
to
unplug
the
2
Y-motor
Jumpers.
3.
Lift
the
belt
off
of
the
Y-motor, then
unscrew
and
remove
the
4
Y-motor
screws..
