35

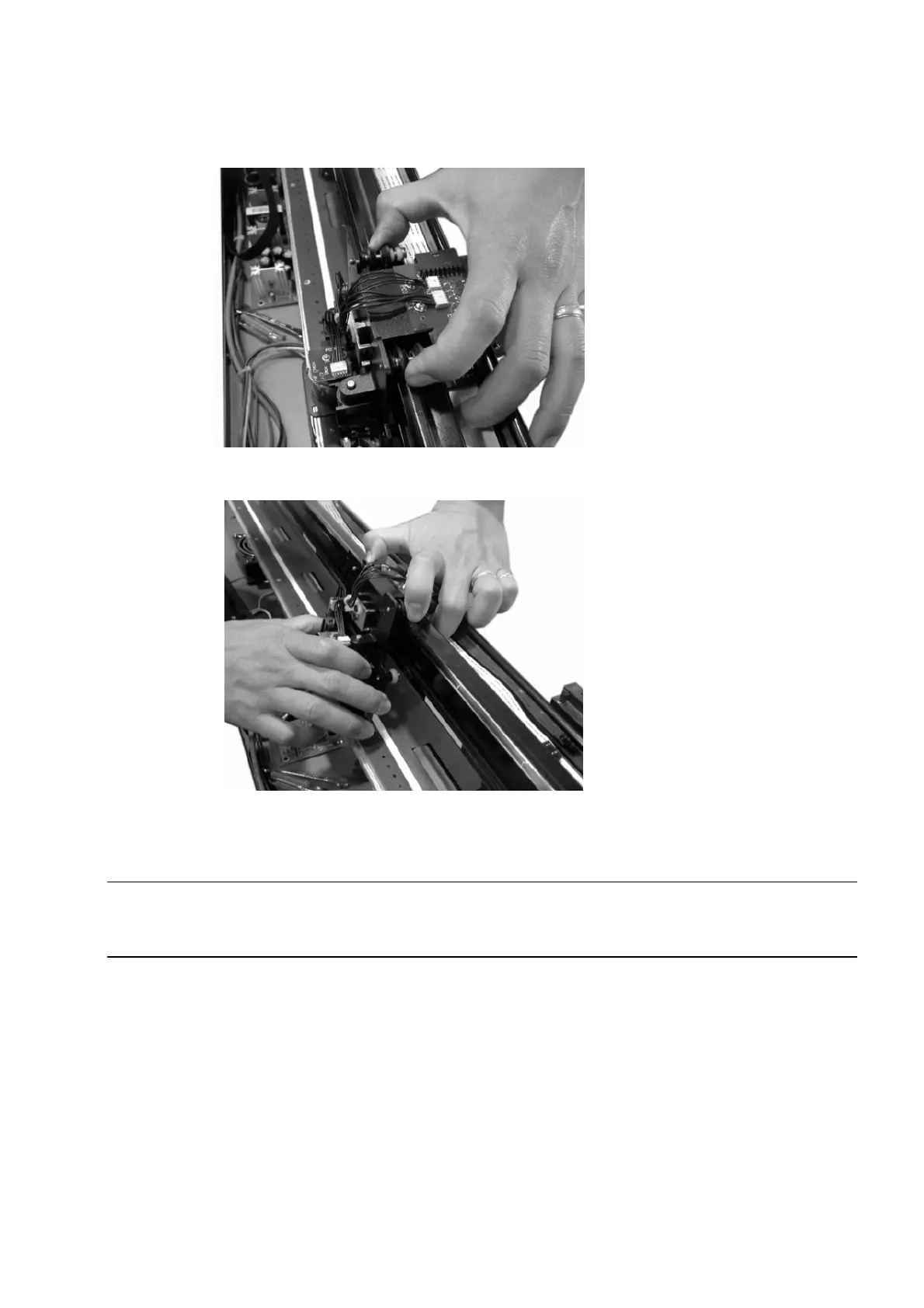

To Remove the Tool Carriage:
1. Separate the Sprung Washer/Rollers as seen in the figure above.
2. Swing the Tool Carriage down and out while keeping the
Sprung Washer/Rollers apart.
Note 1. To install a new Tool Carriage or replace the original Tool Carriage simply reverse the steps for Tool Carriage
removal.
2. Remember to separate the Sprung Washer/Rollers, and then place them on the Carriage track before you
swing the Tool Carriage back into place
