Adjusting
the
Y
Motor
Tension
Belt

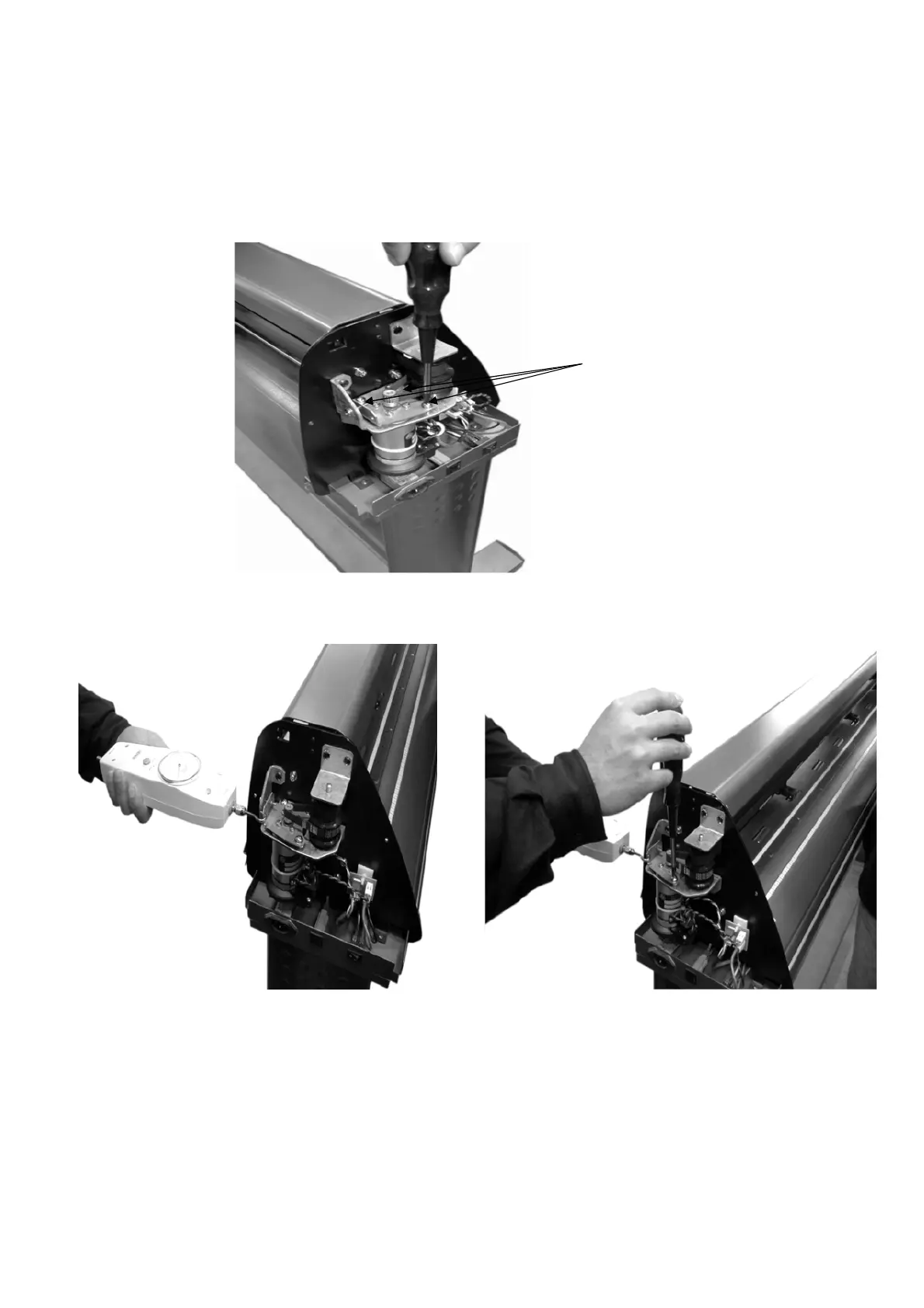

1.
Loosen the 3 retaining
screws locking the
tension bracket in
place but do not
remove them.
2. Place the push-pull tension gauge’s
hook-arm at the hole of Y motor bracket
and pull the motor toward yourself along
the direction parallel to the line that
passes through the motor shaft and the
pulley shaft.
3. Once the desired tension is found tighten
the 3 retaining screws to lock the tension
bracket in place.
