Replacing
the
VCM
PC
Board
The following is what is involved
in replacement of the VCM PC board.
1.

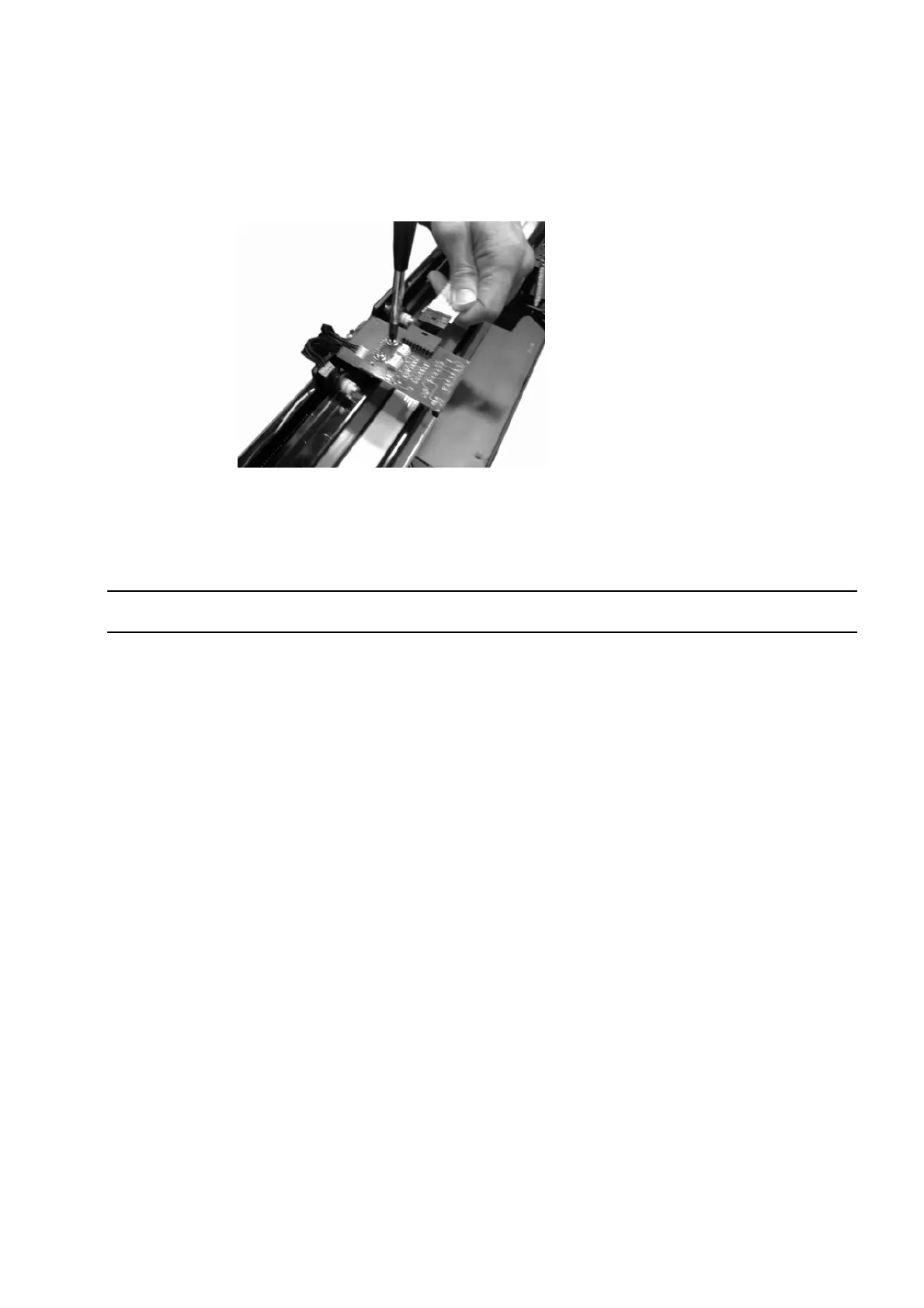

Unplug the two sensor connectors, and then
unscrew the two PC board screws to remove the
board.
Note: If the Pinch Roller Sensor is still not effective after replacement the Tool Carriage or the Flat Cable may need
replacement.
