5.1.4 Graphic Control Panel Function Pages
When the LaserPro X380 is powered on, the machine will perform a series of safety
checks and initializing routines. The LCD display screen will display the GCC copyright,
LaserPro logo, and machine initialization pages before going to the main work page.
Main Work Page
The main work page is the page that the LaserPro X380 will default to upon startup and will be
the “home base” for when navigating through the various functions of the control panel. This will
be the page that is displayed when you are processing your jobs. This page contains specific job
information such as the current job’s name, Speed, Power, PPI, DPI, processing / remaining
times, and jobs loaded.

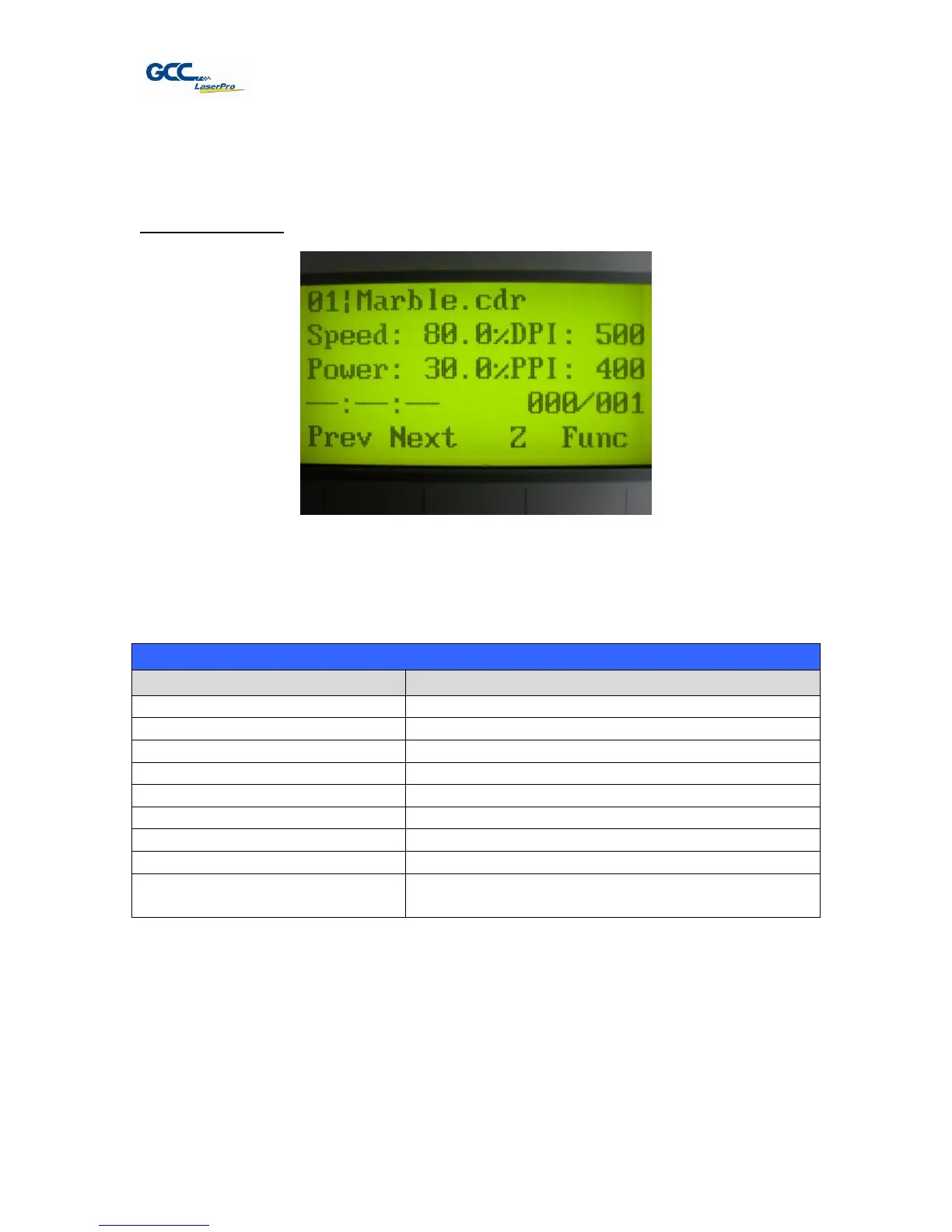

Main Work Page
Relevant Buttons
Function
F1 (Prev)
Scroll through previous jobs
F2 (Next)
Scroll through next jobs
F3 (Z)
Go to Carriage / Work Table Adjustment Page
F4 (Func)
Go to Functions Page
 /  /  /  Directional
Go to Carriage / Work Table Adjustment Page
Start / Stop
Start / Stop the current job
Delete
Delete the current selected job
Auto Focus
Initiate the auto focus function
▲ / ▼ Manual Focus Buttons
Manually adjust the height of the work table (Z-
axis)
