Corel Draw Example (Page Setup and Orientation)
The following is an example of how to set the Page Setup and Orientation in the graphics software. CorelDraw is
the designated graphics software used for this example. For other graphics software, you will need to access the
corresponding Page Setup page.

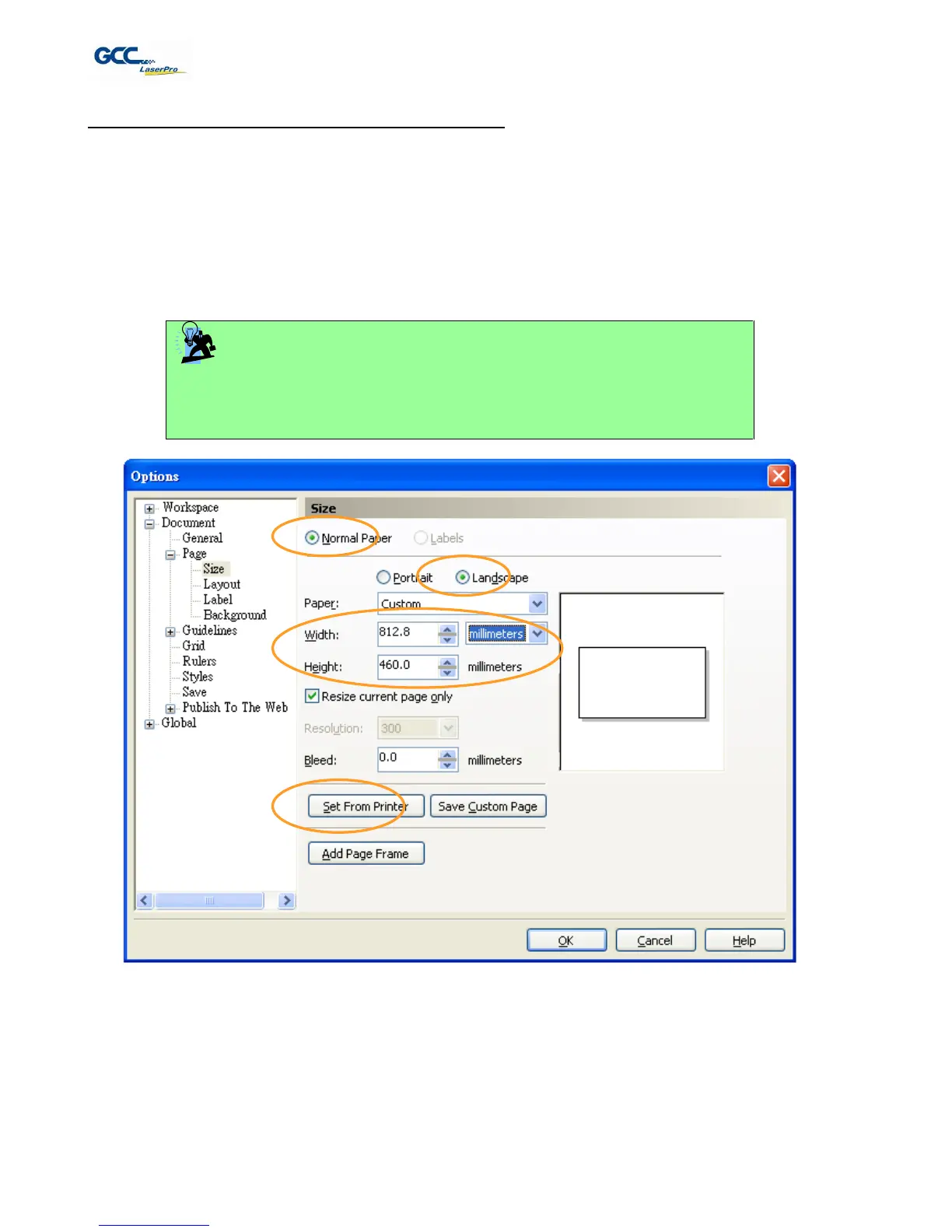

3) From the primary menu, click LAYOUT PAGE SETUP.
4) From the navigation bar on the left, click DOCUMENT PAGE SIZE.
5) Ensure that NORMAL PAPER and LANDSCAPE are selected.
6) Ensure the Paper Width and Height dimensions match the LaserPro X380’s work table
dimensions of 960 mm (37.7 inches) and 610 mm (24.0 inches).
7) Click OK to complete the paper size adjustment.
TIP
Instead of manually selecting the Landscape and setting the Paper Width and Height,
you can simply click the Set From Printer function and CorelDraw will automatically set
the proper orientation and dimensions based on LaserPro X380’s work table. (You
MUST have the X380 set as the default printer prior to doing this.)
5.2.2 Color Management
LaserPro driver uses pen color settings to control laser cutting parameters. In addition to having your Page
Setup and Orientation properly set in your graphics software, you will also need to make sure Color
Management is DISABLED prior to working with the LaserPro X380 Print Driver. If you do not properly
From your graphic software’s Color Management page:
Disable Color Management or set Color Management to Off.
