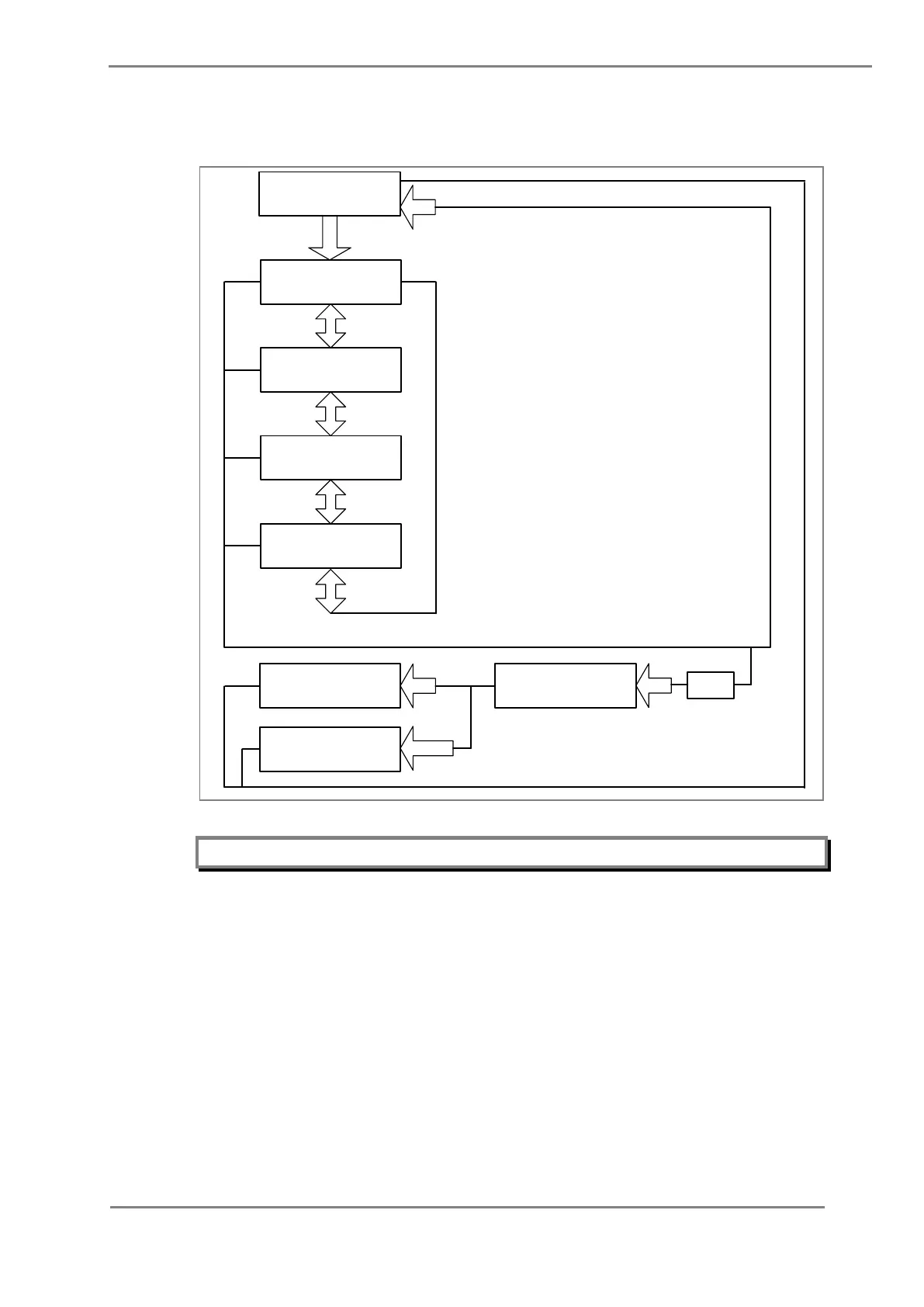

2.4.9 Transformer Ratios Menu
2.4.9.1 View/Edit Settings
TRANS.
RATIOS
Phase CT Primary
100 A
Phase CT Sec’y
1 A
E/F CT Primary
100 A
E/F CT Secondary
1 A
3 4
3 4 3 4
3 4
34
6
3 For Save
CLEAR For Cancel
34
SAVE Settings
3
CLEAR
DISCARD Settings
EDIT
(*)
(*)
(*)
(*)
(*)
Note: (*) indicates Edit key used to modify settings. Refer to the View and Edit settings section.
