4.2.5 Prepare the pump rinsing system

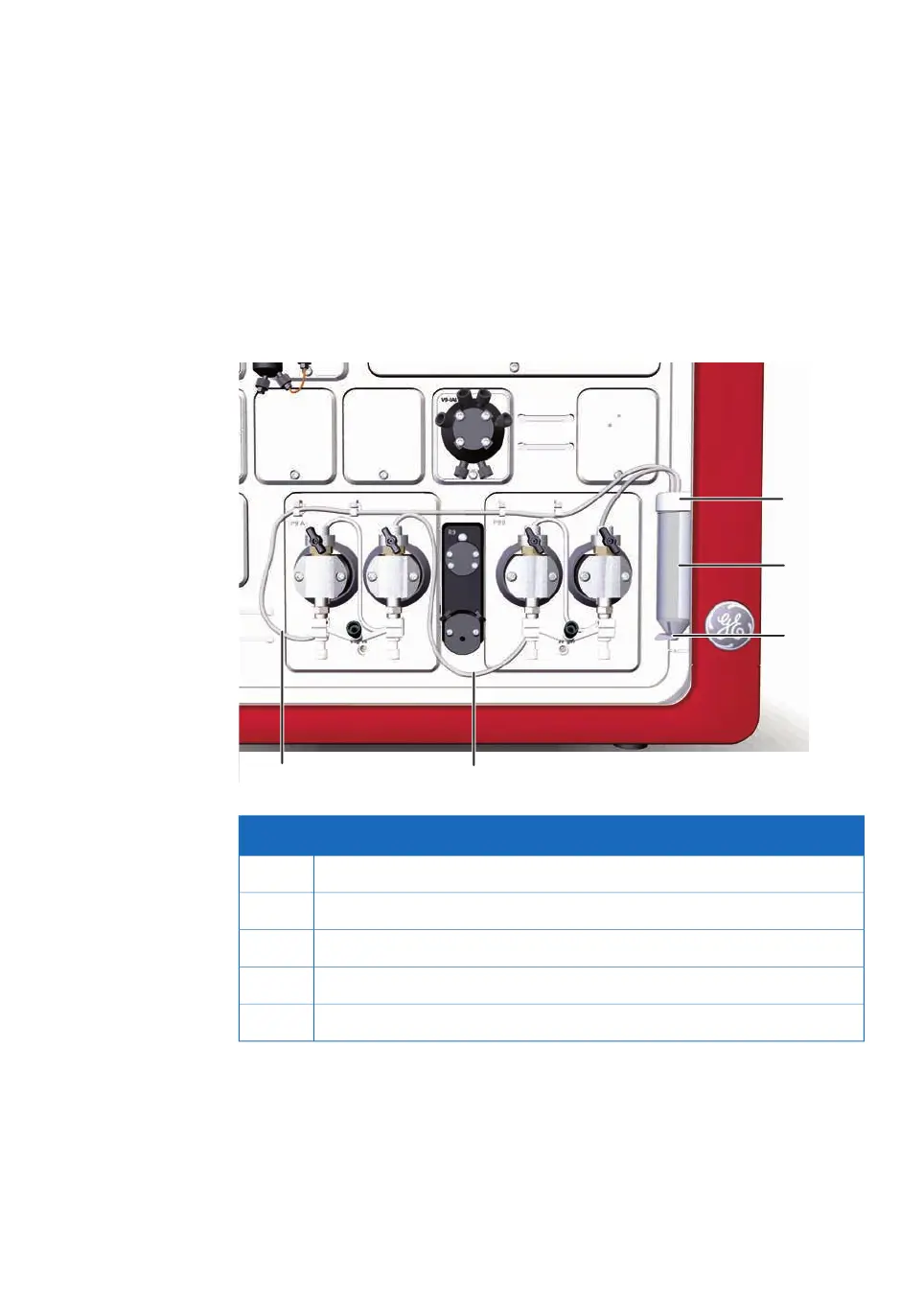

Illustration of the pump piston
rinsing system
The pump piston rinsing system protects the seal that prevents leakage between the
pump chamber and the drive mechanism of the pump. The illustration below shows the
parts and tubing of the pump piston rinsing system.
1
2
3
4
5
DescriptionPart
Pump rinsing liquid tube holder, top1
Pump rinsing liquid tube2
Pump rinsing liquid tube holder, bottom3
Outlet tubing4
Inlet tubing5
