ActionStep

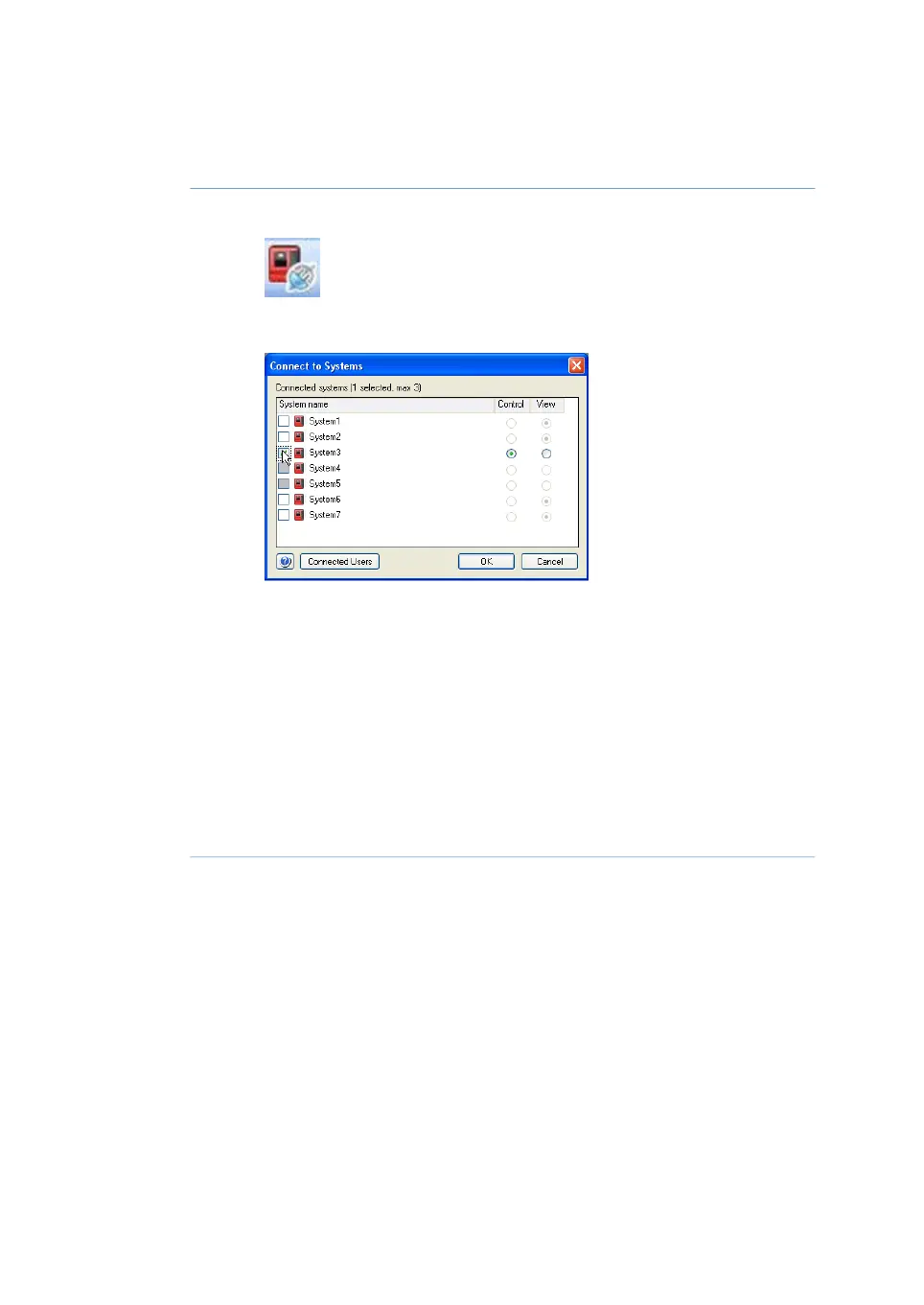

In the System Control module, click the Connect to Systems button.1
Result: The Connect to Systems dialog box opens.
In the Connect to Systems dialog box:2
•
Select a system check box.
•
Click Control for that system.
•
Click OK.
Result: The selected instrument can now be controlled by the software.
Tip:
If UNICORN is unable to connect to the selected instrument, see Chapter
Troubleshooting in ÄKTA pure User Manual.
90 ÄKTA pure Operating Instructions 29022997 AF
4 Installation
4.4 Start UNICORN and connect to system
