Capsule filter and valves
A disposable capsule filter option may be selected instead of the in-line filter option de-
scribed above. The disposable capsule filter housing is made of polypropylene and in-
cludes two additional manual valves for air evacuation, as illustrated below.
FunctionPart
Manual valve HV-3011
Outlet to manual valve HV-3032
Capsule filter housing3
Outlet to manual valve HV-3024

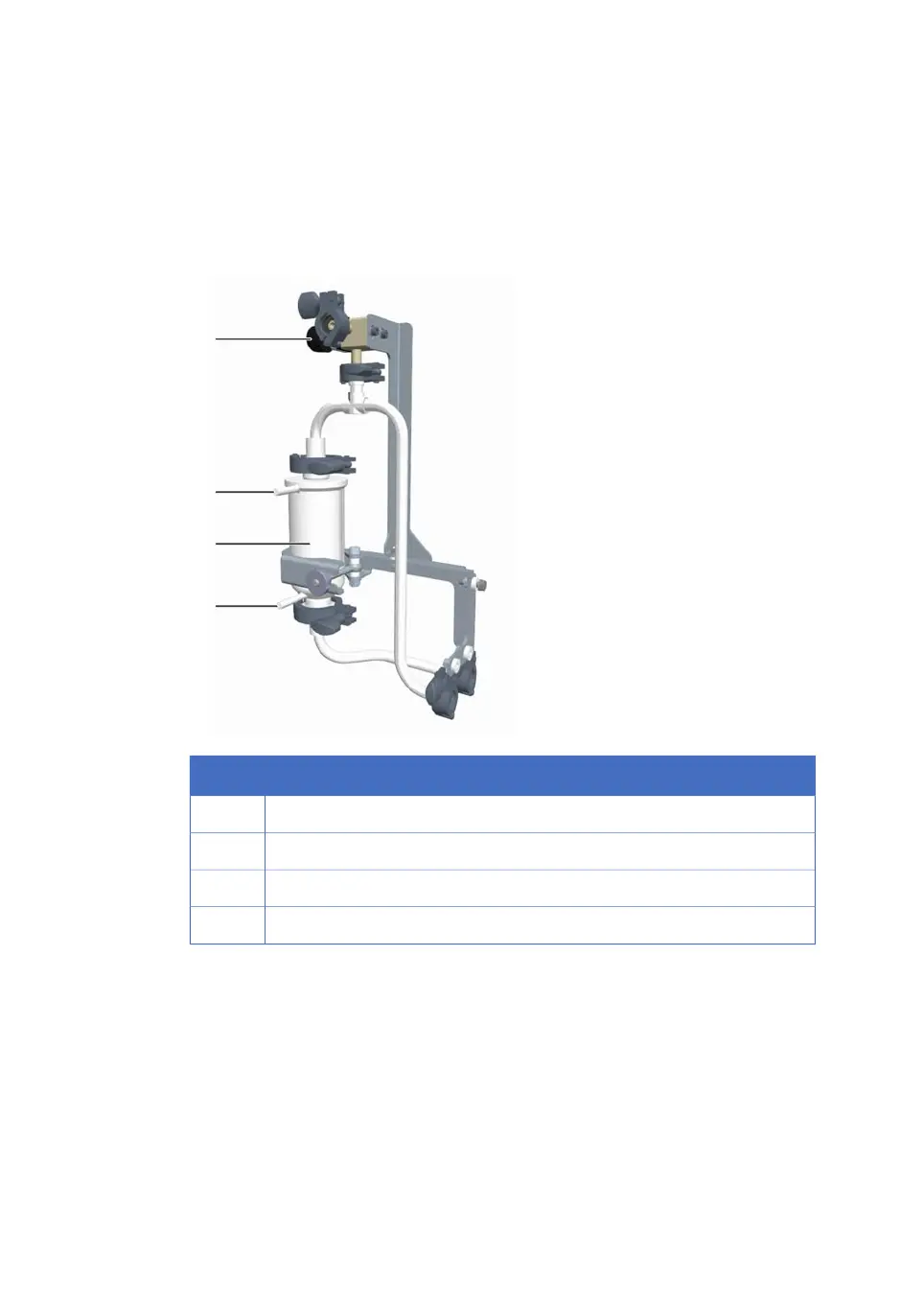

The layout of the capsule filter valves is illustrated in the following diagram.
68 ÄKTAprocess Operating Instructions 29-0252-49 AA
3 System description
