All connections to and from the monitor and the keyboard (DVI signal, USB connection

and power) are included in one multi-conductor cable (ODU minisnap 24-pin connector).

One ODU minisnap 3-pin connector is used for the power supply.

These two cables are attached to the system, and are located underneath the electrical

cabinet.

The operator console can be mounted on either the left or right system handle. A rotation

stop is fitted to prevent the console from colliding with the system cabinet. Instructions

for mounting the console are given below.

Mount operator console on left side

Follow the instruction below to mount the operator console on the left side.

ActionStep

Open the box and remove the assembled console. Do not remove the

polystyrene foam protection, this can be used for lifting.

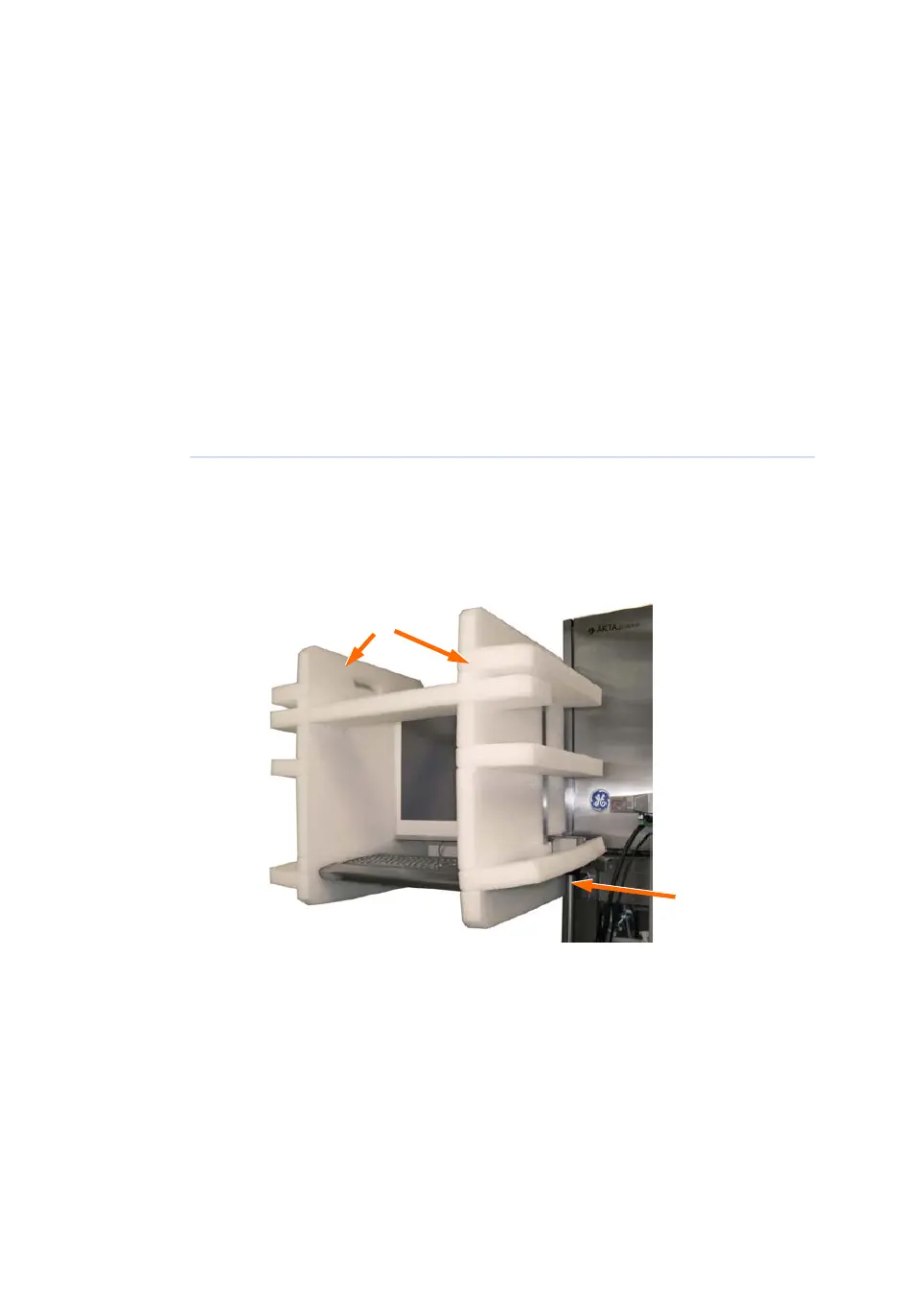

Carefully slide the console arm over the left system handle (B) until it is

firmly attached. Keep the polystyrene foam protection (A) in place when at-

taching the console arm.

Remove the polystyrene foam protection.3

90 ÄKTAprocess Operating Instructions 29-0252-49 AA

4 Installation

4.4 ÄKTAprocess Setup

4.4.1 Assembly of ÄKTAprocess
