Fix the rotation stop onto the cabinet, behind the console arm. The bolts
holding it in place should be positioned below the plane of the rotation stop

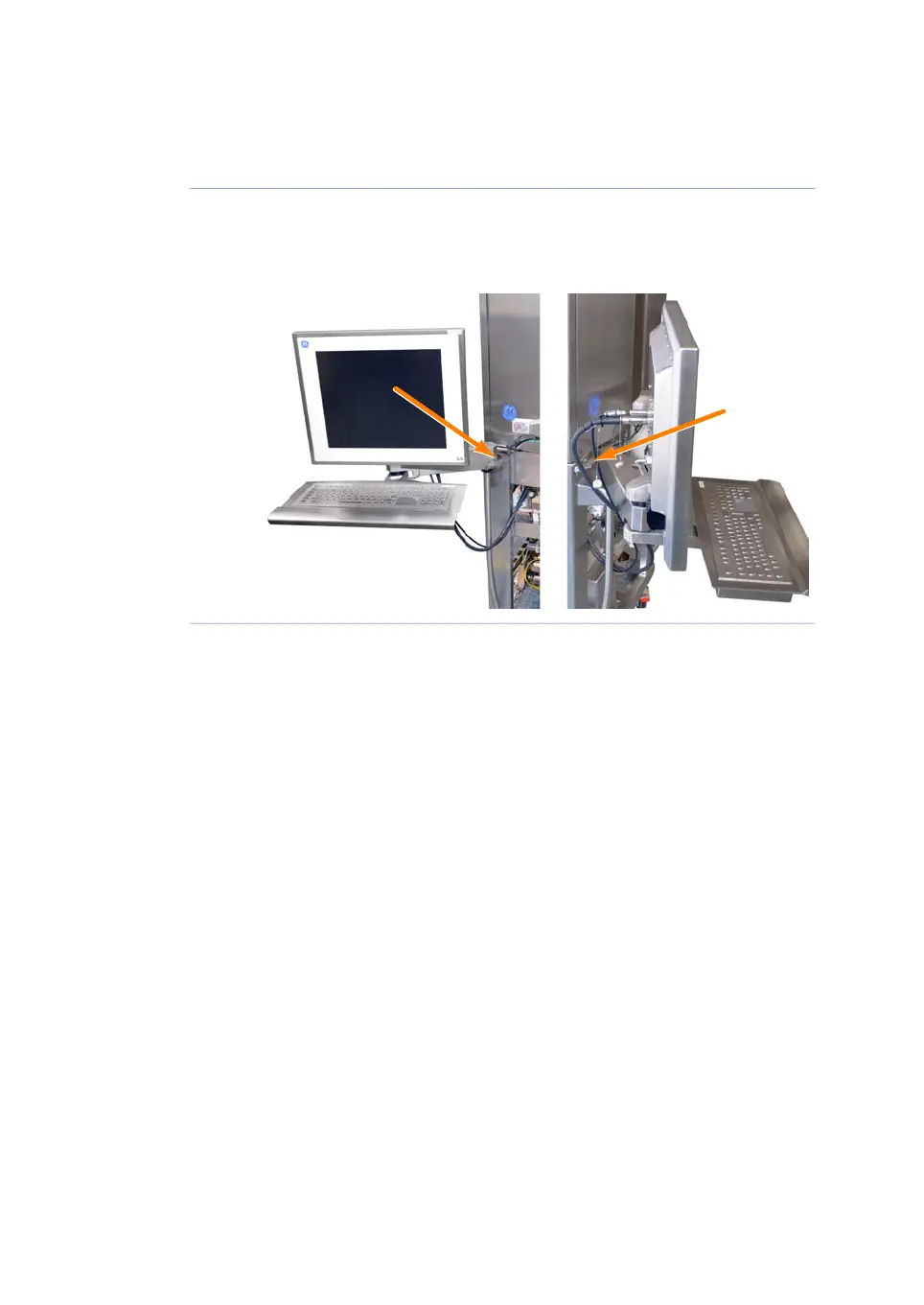

plate. The position of the rotation stop is shown below viewed from the front
and back.
6
Mount the operator console on right side
The operator console is mounted on top of the right system handle as described above,
with the following differences.
•
Place the operator console arm carefully over the right system handle, instead of
the left.
92 ÄKTAprocess Operating Instructions 29-0252-49 AA
4 Installation
4.4 ÄKTAprocess Setup
4.4.1 Assembly of ÄKTAprocess
