ECG: Indications and Contraindications
Procedures
1. Plug cable connector into the Monitor.
2. Using appropriate medical criteria, choose the sites for placing the
electrodes.

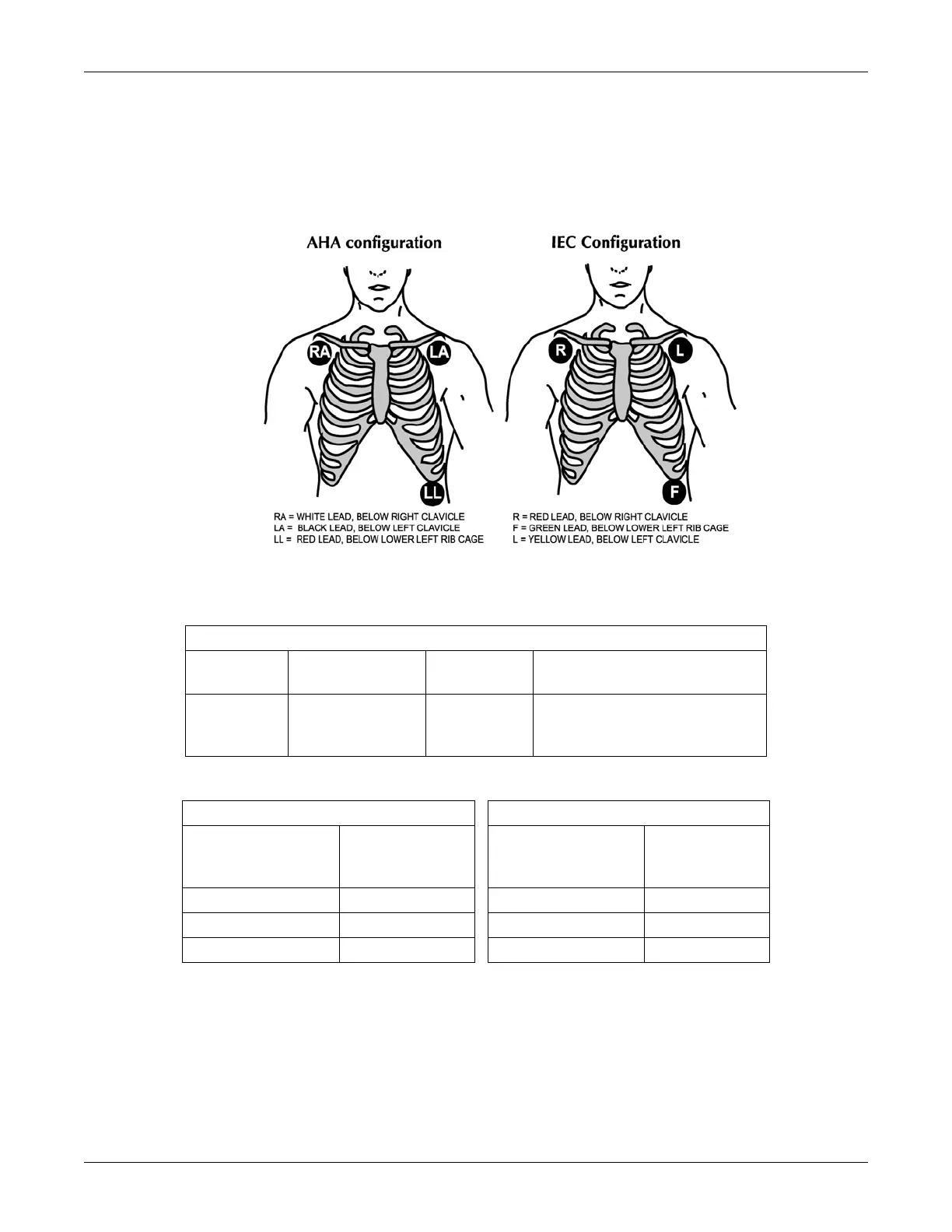

Possible Sites of 3-Electrode Placement
Viewable Settings
Number of
Electrodes
Waveforms
available
Electrodes
Required
Waveform Formulas
3 I, II, III LA, RA, LL I = LA - RA, LL reference
II = LL - RA, LA reference
III = LL - LA, RA reference
AHA Color Coding IEC Color Coding
Patient Connection
Identifier (3 leads)
United States,
Latin America,
Canada
Patient Connection
Identifier (3 leads)
International
RA white R red
LA black L yellow
LL red F green
