DigitalFlow™ GF868 Programming Manual (1-Channel) 99
Appendix C. Programming with PanaView
C.4 Adding the GF868
To add the GF868 on the IDM-configured communications port, complete the following steps:
1. Highlight the communication port to which the meter will be added by clicking on it, and then open the “Edit”
menu on the menu bar (if the communication port is not highlighted first, the “New Meter” option is not active in
the “Edit” menu).
2. Click on the “New” option in the “Edit” menu (see Figure 20).

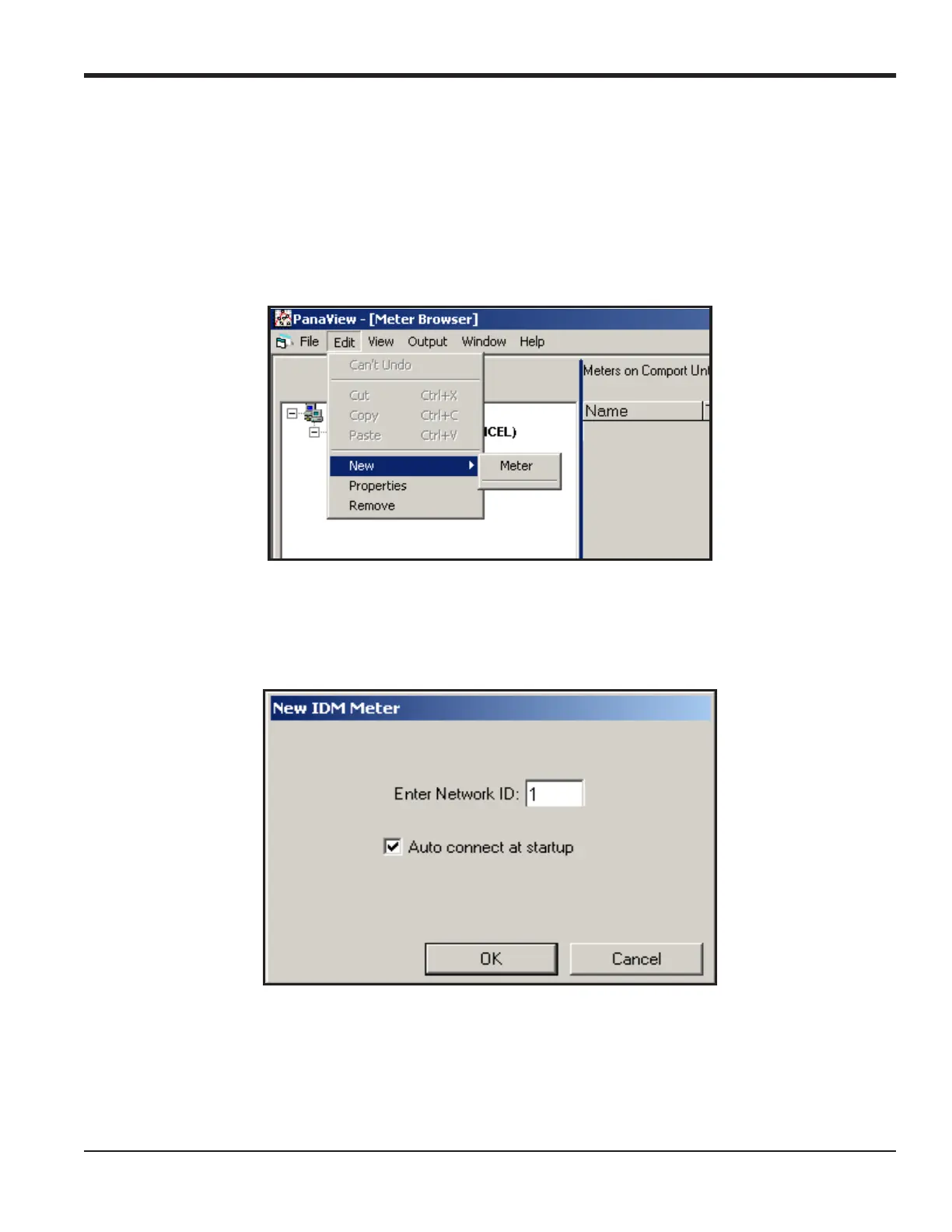

Figure 20: “New” Option in the “Edit” Menu
3. After clicking on the “New” option, the “Meter” menu option appears. Click on this option to select it.
4. The “New IDM Meter” screen (shown in Figure 21) opens. Enter the Network ID number for the meter, and click
[OK].
Figure 21: New IDM Meter Screen
