Appendix C. Programming with PanaView
102 DigitalFlow™ GF868 Programming Manual (1-Channel)
C.5 Editing Meter Properties (cont.)
The window appears similar to Figure 25. To perform a specific task, refer to the appropriate section on the following
pages.
• Setting the Meter Clock (page 103)
• Reading Transducer Signals (page 104)
• Plotting Transducer Signals (page 105)
• Saving Transducer Signals (page 105)
• Clearing Totalizers (page 105)
• Handling Site Files (page 106)

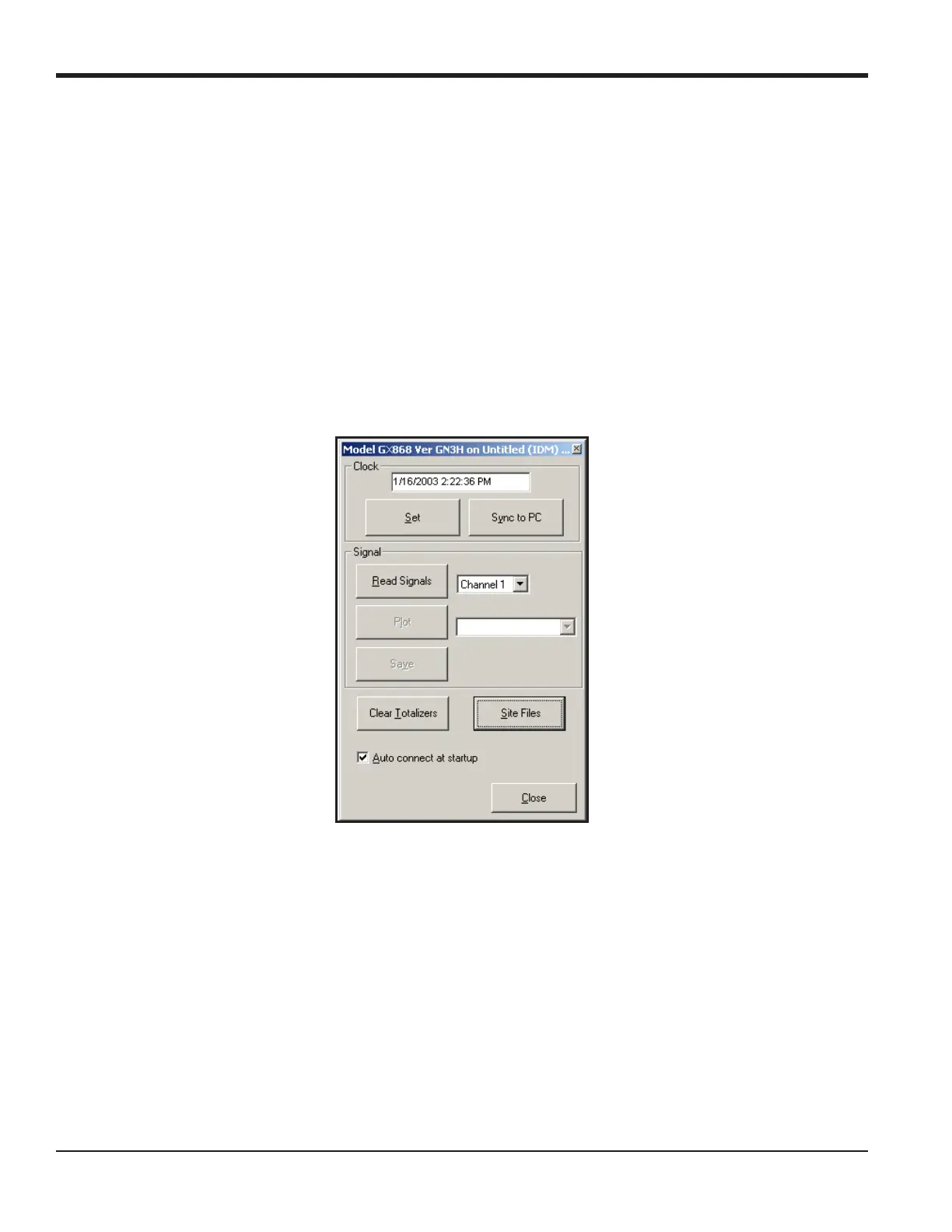

Figure 25: Properties Window for IDM-Based Meter
Note: For illustration purposes, the meter shown here is a one-channel GX868 flowmeter. Specific parameters will
vary with your particular meter.
