Chapter 6. Serial Communications
80 DigitalFlow™ GF868 Programming Manual (1-Channel)
6.5.3 Multi-point Wiring (cont.)
6.5.3a Reconfiguring a Serial Interface Converter (cont.)

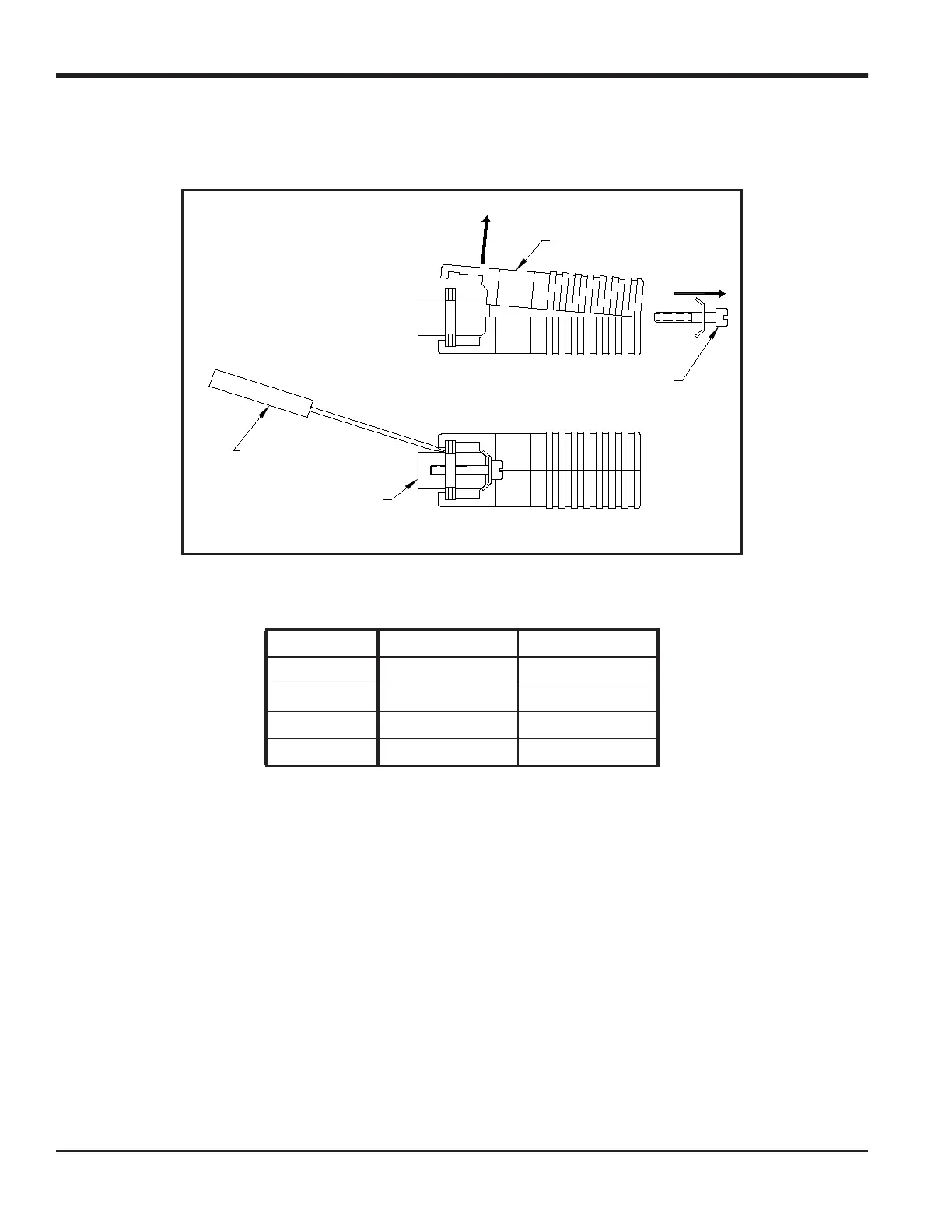

Figure 10: Opening the Converter Case
7. Reassemble the serial interface converter and secure it to the mounting bracket with the two mounting screws.
8. Reinstall the mounting bracket into the electronics enclosure and secure it with the standoff and the grounding
screw.
Table 19: Switch Assembly Settings
Position # Point-To-Point Multi-Point
1 ON OFF
2ON ON
3ON ON
4 OFF OFF
Plastic Case
Mounting Screw
DB9 Connector
Screwdriver
