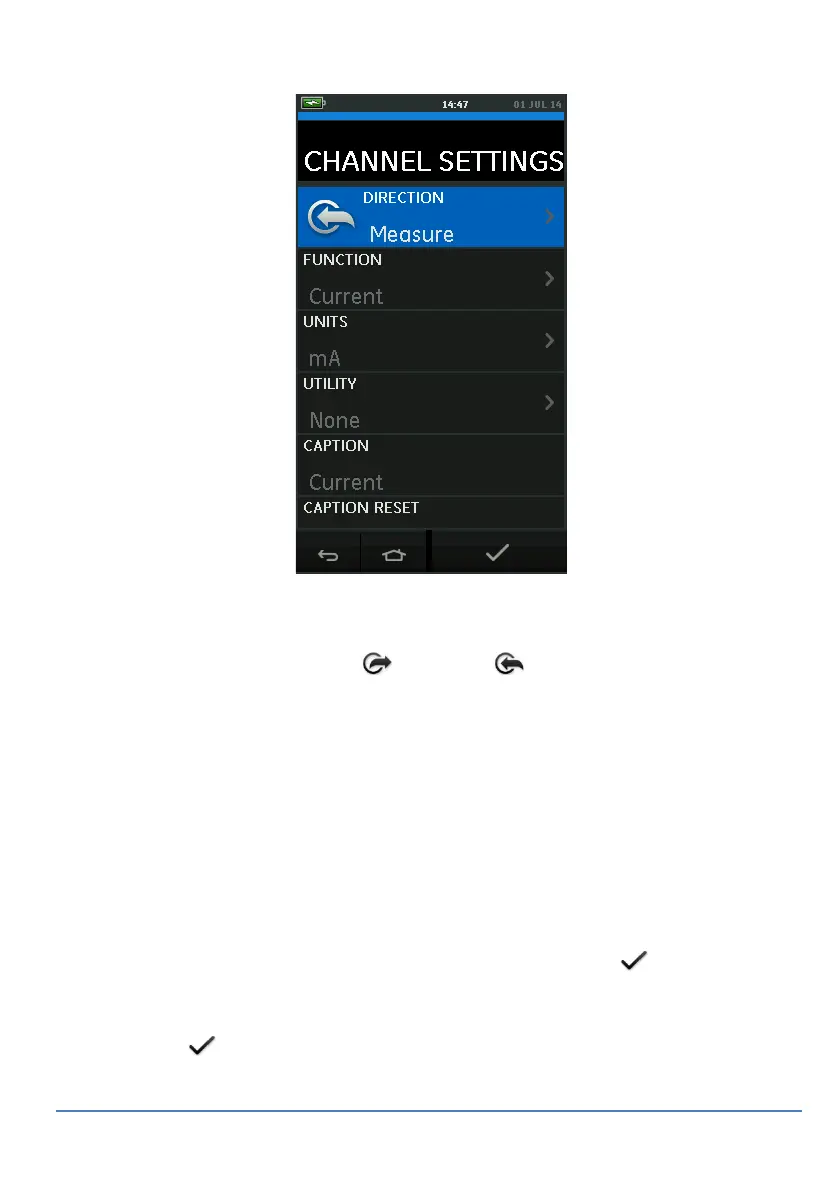

Figure 2-13 Channel Settings Menu
III. Setup a channel for measurement
• DIRECTION selects Source or measure for the selected
function.
• FUNCTION selects the function required.
(E.g.: Current or Voltage). For more options, scroll down the menu
by swiping the display from bottom to top.
• UNITS selects the type of unit required, (E.g.: Volts, Amps), please
note that there may only be 1 type of unit available in particular
Functions.
• UTILITY selects the required utility (See Section 2.4.2 for details).
• CAPTION allows the user to change the caption, if required.
• CAPTION RESET allows the user to reset the caption.
• Once all settings have been selected, press the button at the
bottom of the screen to return to the TASK SETTINGS screen.
• Please note for the settings to be set the user must also press the
button in the TASK SETTINGS menu.
• Repeat the above if another channel is required.
