3.3.3.3.5 2285053 – Through bolts with insert

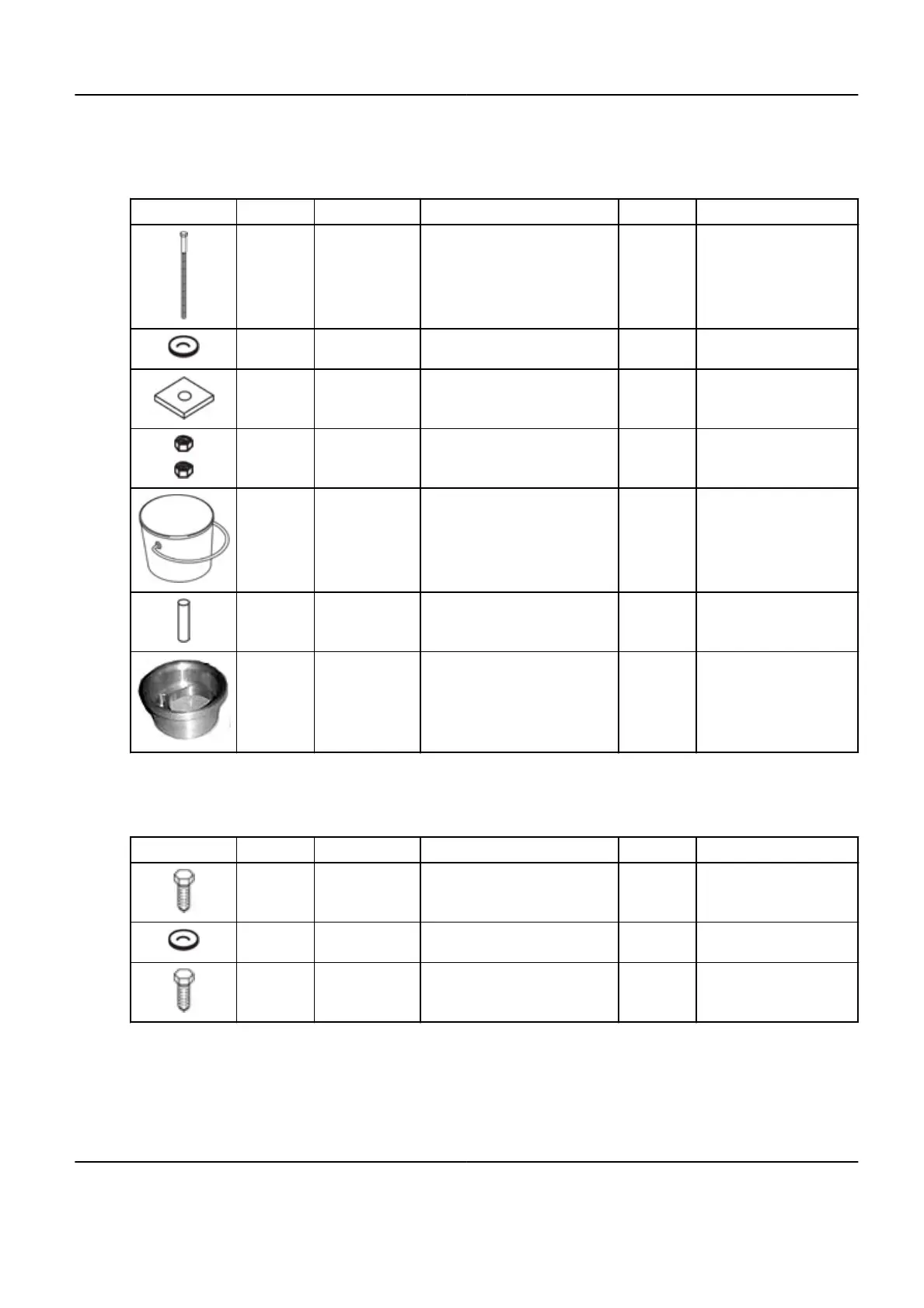

Table 2-18:
Item Name Part # Description Quan. Notes
Bolt, Hex 2296892 Through Bolt; M20 - 500-400
12 bolts for LC Positioner and
4 bolts for Table
16 pc
Through Bolt mounting
method hardware
Washer,
Flat
99142204 Special Flat Washer for Through
Bolts; one for each bolt
16 pc same as above
Plate 2290941 Special Steel Spacer Plate; 4 in. x
4 in. (102 mm x 102 mm); one for
each bolt
16 pc
same as above
Nut, Hex 99141607 Hex Nut M20 STL galvanized two
for each bolt
32 pc same as above
Grout assy 2285055 - 10 kg Powdered Mortar Ardex
K-15
- RTV Silicon Rubber Adhesive
- 18 mm making tape adhesive
- Open cell foam
1 kit
Used in constructing LC
Positioner grout dam
Dowel 2290937 Wood Dowel; 24 mm diameter 12 pc
Water Elec‐
tric Separa‐
tor
2268647
Manufactured part introduced in
Positioner key hole to fit 1 electri‐
cal conduit of 6”.
1 pc
Electrical and water con‐
duits separated inch size.
3.3.3.3.6 2285632 – Floor plate / Base plate assembly
Table 2-19:
Item Name Part # Description Quan. Notes
Hex Screws 2360523 Screw M16x30x30 Inox A4-80
Pass
12 pc For floor plate / Base plate
assembly
Washer 99125091 Washer P 17 mm/40 mm 34 pc 24 are used for the posi‐
tioner integration
Hex Screws 99133570 Screw M16x40x40 Inox A4-80
Pass
10 pc 4 only are used for Omega
NOTE: The kit 2285632 Floor plate / Base plate assembly is needed when the floor plate is
installed. This part isn’t GE part. It’s ordered locally.
Innova
TM
IGS 520, Innova
TM
IGS 530, Innova
TM
IGS 540 Pre-Installation Manual
Direction 5499972-1-1EN, Revision 2
Chapter 2 Equipment Requirements 155
