GE Innova IGS 520 User Manual

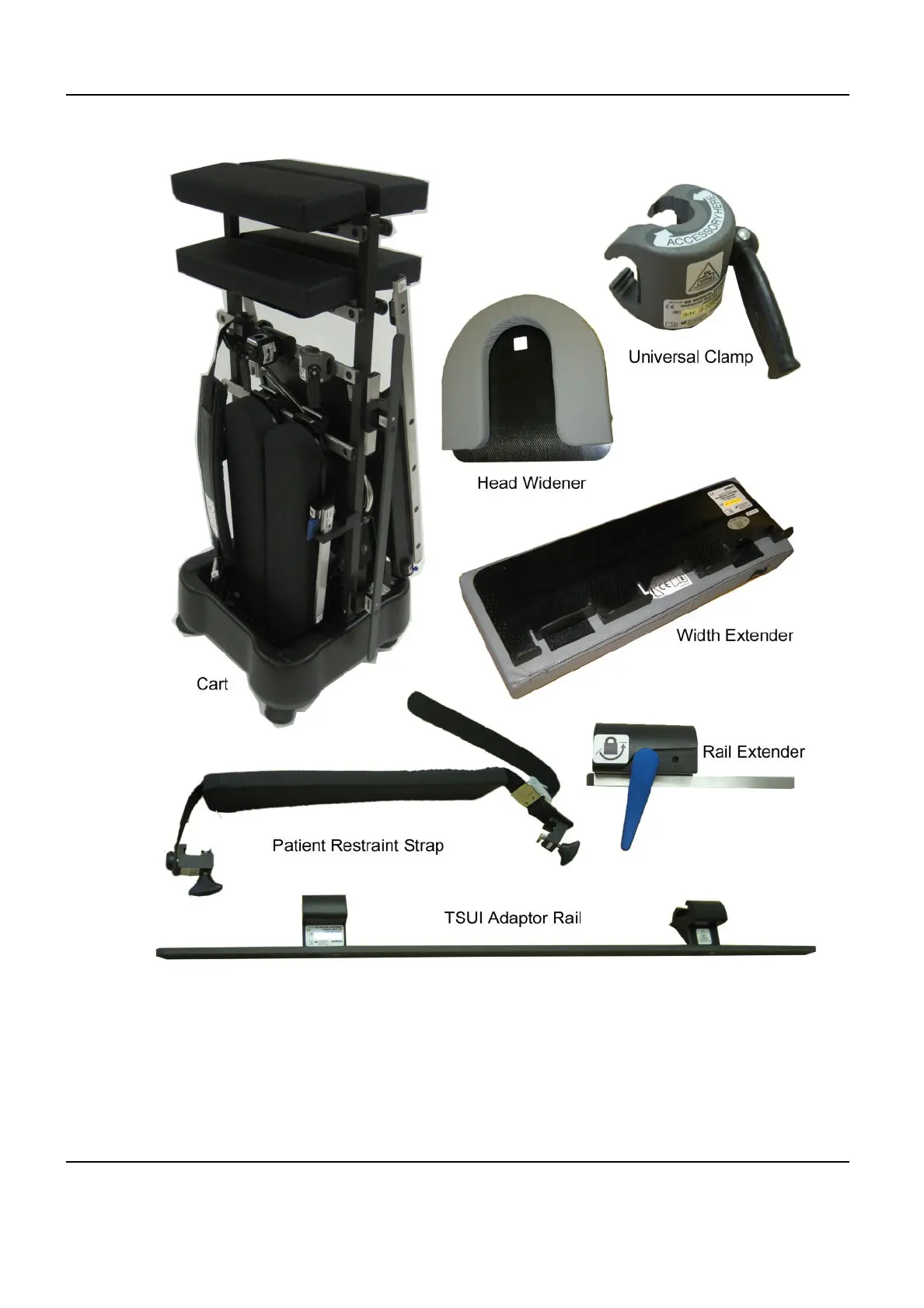

Illustration 2-9:
1.2.5 Description of the X-Ray generator
The Innova System uses a High Voltage System with component parts as follows according to
the power requested (100 kW):
•
Jedi - C1 cabinet,
Innova
TM
IGS 520, Innova
TM
IGS 530, Innova
TM
IGS 540 Pre-Installation Manual
Direction 5499972-1-1EN, Revision 2
56 1 System Components

GE Innova IGS 520 Specifications

General

Gantry Rotation	360 degrees
Spatial Resolution	Up to 2.5 lp/mm
Application	Cardiology, Radiology, Vascular Surgery
Detector Size	20 cm x 20 cm
Voltage Range	40 kV to 125 kV
Current Range	Up to 1000 mA
Applications	cardiology, radiology, and vascular surgery
Detector Type	Digital Flat Panel Detector
