LOGIQ™ 100 PRO
S
ERVICE
M
ANUAL
Chapter 7 - Diagnostics/Trou
bleshooting
Page 7-11
Monitor Test (Contd.,)

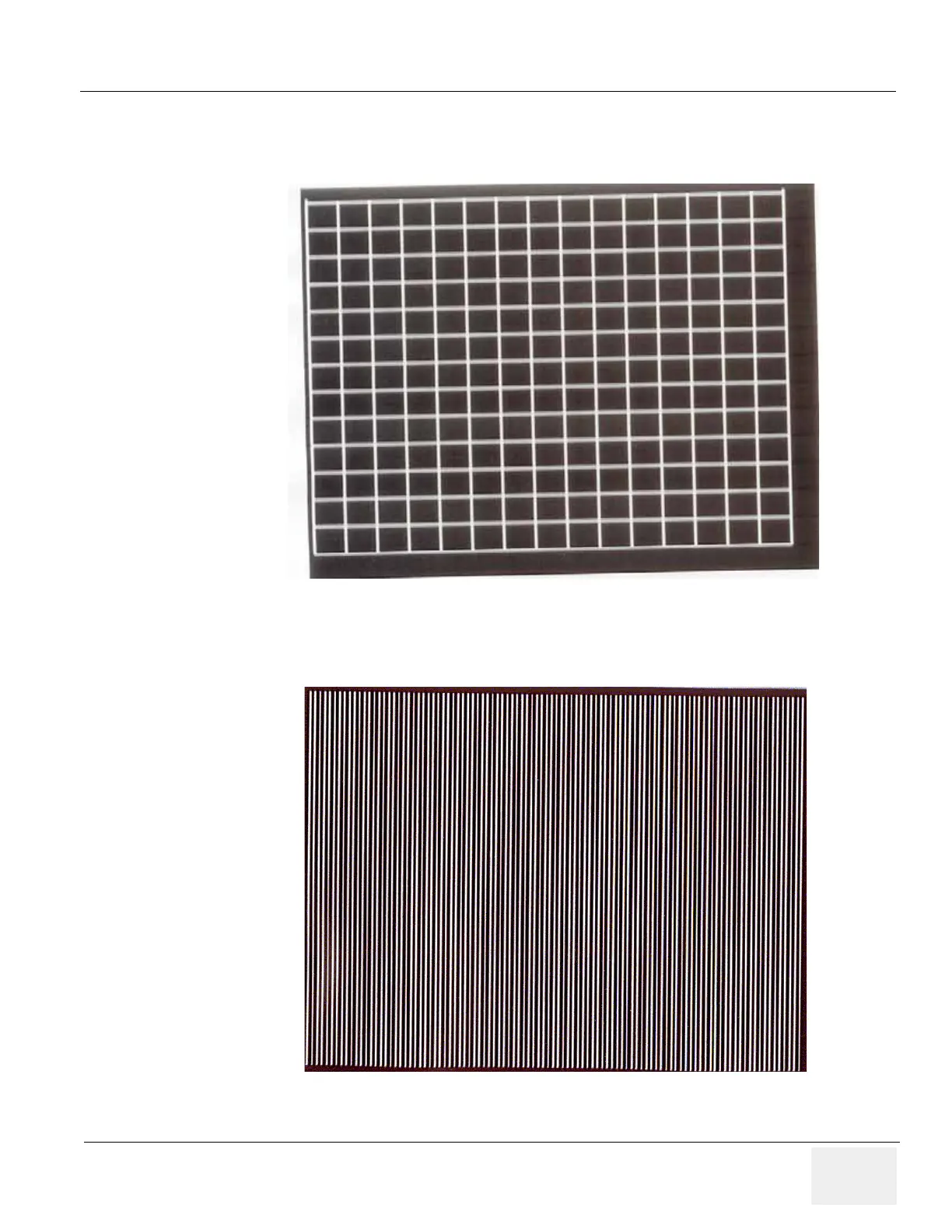

Figure 7-9 Monitor T
est
Figure 7-10 Monitor T
est
State: RELEASE - Document is released and under formal Change Control. Changes are subject to the ECR/ECO Process.
See the GEHC Myworkshop System to determine the status of this document.
Approved Document - 5305880-100TPH_r3.pdf Page 116 of 197
114
116
Table of Contents
Table of Contents
11
Chapter 1 Introduction
17
Section 1-1Overview
17
Overview
17
Purpose of Chapter 1
17
Purpose of Service Manual
17
Typical Users of the Basic Service Manual
18
LOGIQ™ 100 PRO Models Covered by this Manual
18
Purpose of Operator Manual(S)
18
5305880-100, Revision
18
Logiq™ 100 Pro Service Manual
18
Description
18
Overview
18
Section 1-2 Safety
19
Warnings
19
Section 1-3 Important Conventions
20
Conventions Used in Book
20
Important Conventions
20
Standard Hazard Icons
21
Product Icons
22
Section 1-4Safety Considerations
26
Introduction
26
Human Safety
26
Mechanical Safety
27
Electrical Safety
27
Labels Locations
28
Dangerous Procedure Warnings
34
Lockout/Tagout Requirements (for USA Only)
34
Classification
34
EMC, EMI, and ESD
35
Electromagnetic Compatibility (EMC)
35
CE Compliance
35
EMC Performance
35
Notice Upon Installation of Product
35
General Notice
36
Countermeasures against EMC Related Issues
36
Notice on Service
36
Electrostatic Discharge (ESD) Prevention
37
Section 1-6Customer Assistance
37
System Manufacturer
37
Contact Information
38
Customer Assistance
38
Pre Installation
39
Chapter 2 Pre Installation
39
Section 2-1Overview
39
Purpose of Chapter 2
39
Section 2-2 General Console Requirements
39
Console Environmental Requirements
39
Table of Contents
39
5305880-100, Revision
39
Lighting
40
Electrical Requirements
40
LOGIQ™ 100 PRO Power Requirements
40
Site Circuit Breaker
40
Site Power Outlets
40
Unit Power Plug
40
Power Stability Requirements
40
EMI Limitations
41
Probes Environmental Requirements
42
Time and Manpower Requirements
43
Checklist for Installation
43
Chapter 3 Installation
45
Section 3-1Overview
45
Purpose of Chapter 3
45
Average Installation Time
45
Safety Reminders
46
Section 3-2 Receiving and Unpacking the Equipment
47
Section 3-3 Preparing for Installation
49
Physical Inspection
49
Systems Voltage Settings
49
Video Formats
49
EMI Protection
49
Section 3-4 Assembling LOGIQ™ 100 PRO
49
Installation of the System
49
Section 3-5 Completing the Installation
50
Transducer Connection
50
Installation of Optional Accessories
51
Installation of Two Probe Adapter & LOGIQ A200 Probe Adapter (Optional)
53
Installation of LOGIQ™ 100 PRO with Global or Modular Trolley
55
Adjustment of Monitor Brightness & Contrast
61
Adjustment of System Clock/Date, Hospital Name & ob Version
61
Section 3-6 System Configuration
61
System Specifications
61
Physical Dimensions
61
Front View
62
Side View (Keyboard Closed)
64
Weight Without Peripherals
64
Electrical Specifications
64
Power Supply
65
Facility Power Socket
65
Storage & Operation Requirements
65
Optional Peripherals
65
Peripherals Connections and Installation
67
Video Specification
72
Section 3-7Paperwork
72
User Manual(S)
73
Product Locator Card
73
Chapter 4
75
Section 4-1
75
Power On/Boot up
76
System Boot-Up/Shutdown
76
Lockout/Tagout Requirements (for Usa/Europe)
76
Power up
76
Section 4-2 General Procedures
76
Front Panel ON/OFF
77
Power Shutdown
77
Section 4-3 Functional Check Procedures
78
Power up Monitor Display (Convex Probe)
79
Basic Controls
80
Power on Diagnostics
83
Section 4-4 Diagnostics
83
Service Diagnostics
83
Section 4-5 Software Configuration Checks
84
Section 4-6 Peripheral Checks
84
Probe/Connectors Check
85
Section 4-7 Patient Contact Tools
85
Purpose of Chapter 5
87
Section 5-1Overview
87
Section 5-2 General Information
88
Section 5-3 Block Diagram
89
DAVINCI Block Diagram
91
Logiq™ 100 Pro Block Diagram
92
PCB Nomenclature
93
Section 5-4 Wiring Diagrams
94
Power Distributor/Power Supply Wiring Diagram
94
Cable Assembly Diagrams
96
Front End Board
98
Section 5-5 Functional Subsystems
98
Davinci Board
99
Peripherals
100
Section 5-6 Video Specifications
100
Section 5-7 Rear Panel Signal List
100
Chapter 6 Service Adjustments
103
Section 6-1 Overview
103
Service Adjustments Available in LOGIQ™ 100 PRO
103
Chapter 7 Diagnostics/Troubleshooting
105
Purpose of Chapter 7
105
Section 7-1Overview
105
Section 7-2 Power on Diagnostics
107
DAVINCI Board Tests
108
FEB Test for LOGIQ™ 100 PRO
111
Keyboard Tests
113
Monitor Test
114
Key Operation History
117
Error Reporting
118
Section 7-3 Error Reporting
118
Section 7-4 Troubleshooting
119
Chapter 8 Replacement Procedures
129
Purpose of Chapter 8
129
Section 8-1 Overview
129
Disassembly/Assembly of Top Cover
130
Section 8-2 Top Cover
130
Detaching the Keyboard
132
Section 8-3KEYBOARD
132
Keyboard Disassembly/Assembly
134
Optical Trackball Assembly
136
Disassembly/Assembly of Front Panel
138
Section 8-4 FRONT PANEL/MONITOR
138
Disassembly/Assembly of Monitor
140
Section 8-5 Pcbs
142
Disassembly/Assembly of Davinci Board
143
Disassembly/Assembly of FEB for LOGIQ™ 100 PRO
146
Disassembly/Assembly of Fan
148
Section 8-6 Fan Assembly
148
Disassembly/Assembly of Power Supply/Distributor PCB
149
Section 8-7 Power Supply/Distributor PCB
149
Disassembly/Assembly of Rear Panel
150
Section 8-8 Rear Panel
150
Disassembly/Assembly of HV Assembly
152
Section 8-9 HV Assembly
152
Disassembly/Assembly of Chassis
153
Section 8-10 Chassis
153
5305880-100, Revision
154
Chapter 9 Replacement Parts
155
Purpose of Chapter 9
155
Section 9-1
155
MATERIAL LIST - Top Cover
157
Material List - Keyboard
158
Material List - Keyboard Assembly
159
Material List - Front Panel
161
MATERIAL LIST - Monitor
162
Material List - Davinci
163
Chapter 10 Quality Assurance
171
Purpose of Chapter 10
171
Section 10-1 Overview
171
How Often Should Pms be Performed
172
Keeping Records
172
Quality Assurance
172
Section 10-2 Why Do Periodic Maintenance
172
Section 10-3 Periodic Maintenance Schedule
172
Section 10-4 Tools Required
174
Standard GE Tool Kit
174
Special Tools, Supplies and Equipment
176
10-4-2-1Specific Requirements for Periodic Maintenance
176
Preliminary Checks
177
Section 10-5 System Periodic Maintenance
177
Functional Checks (See also Chapter 4)
178
Cleaning
179
10-5-4-1General Cleaning
179
Input Power
179
10-5-3-1Mains Cable Inspection
179
Peripheral/Option Checks
179
Physical Inspection
180
Probe Maintenance
180
10-5-6-1Probe Related Checks
180
10-5-6-2Basic Probe Care
180
Basic Probe Cleaning
181
Safety Test Overview
181
Section 10-6 Electrical Safety Tests
181
GEMS Leakage Current Limits
183
Outlet Test - Wiring Arrangement - USA & Canada
184
Grounding Continuity
185
10-6-4-1Meter Procedure
185
Chassis Leakage Current Test
186
10-6-5-2Generic Procedure
186
Dale 600 Meter Procedure
187
Data Sheet for Chassis Source Leakage Current
188
Direction 5305880-100, Revision 3 Logiq™ 100 Pro Service Manual
189
Probe Leakage Current Test
189
10-6-6-2Generic Procedure for Leakage Current
189
10-6-6-3Meter Procedure Using Dale Meter to Measure Leakage Current
189
Meter Procedure Using Probe Adapter to Measure Probe Isolation(Sink) Current
191
Section 10-7 When There's too Much Leakage Current
193
