Chapter 3 - Installation Page 3-11
3-5-4 Installation of LOGIQ™ 100 PRO with Global or Modular Trolley
Note: LOGIQ™ 100 PRO has two types of Trolleys, the Global Trolley and the Modular Trolley.
The Global Trolley comes in the assembled form and the Modular Trolley comes in a modular
form which needs assembly at field.
1.) Unpack the global trolley packed in a wooden box by opening the top cover, refer Figure 3-8
(trolley which is inside the box is seen in the diagram).

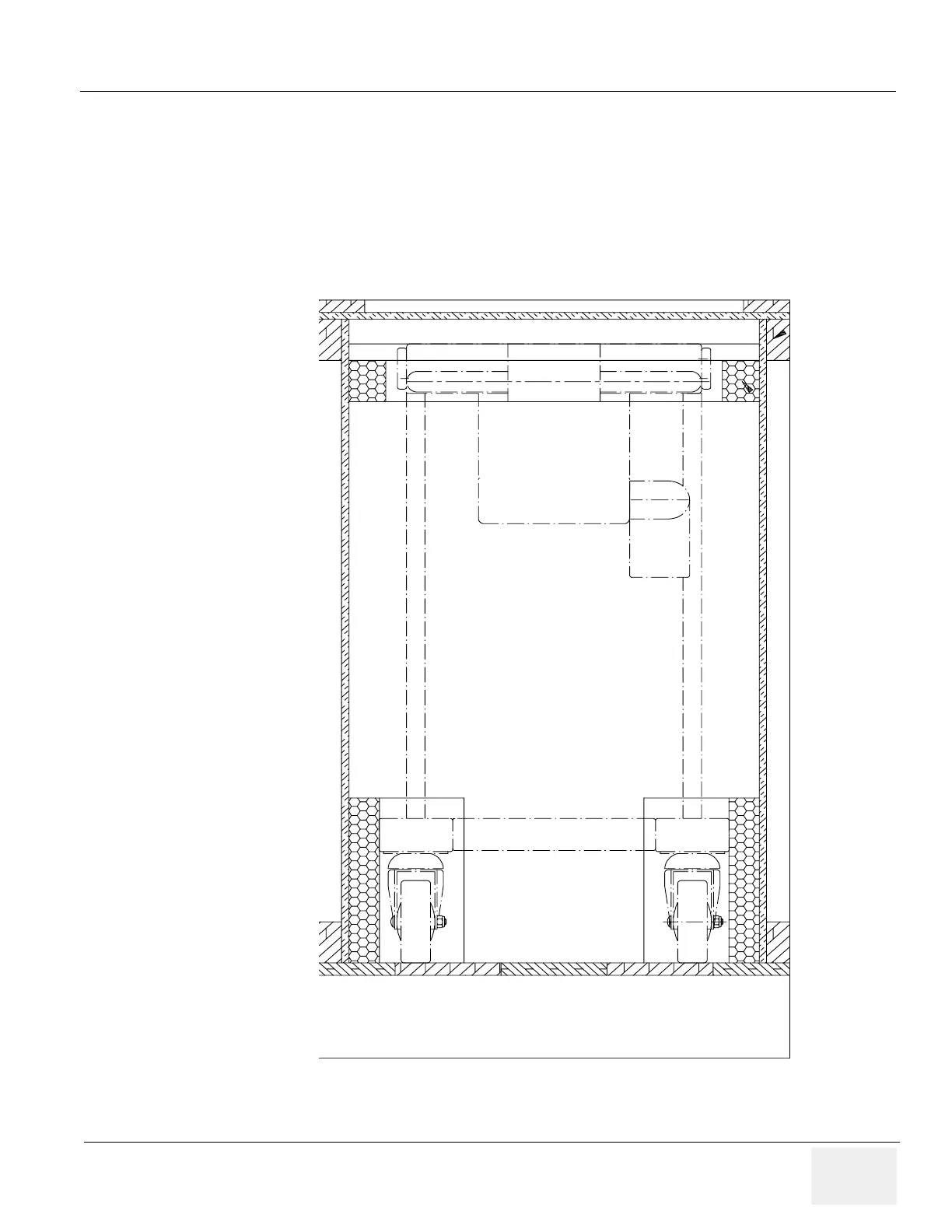

Figure 3-8 Global Trolley Unpacking
