GE HEALTHCARE
D
IRECTION 5305880-100, REVISION 3 LOGIQ™ 100 PRO SERVICE MANUAL
Page 5-2 Section 5-2 - General Information
Section 5-2 General Information
• LOGIQ™ 100 PRO is a portable ultrasound imaging scanner. It also has provisions for analog
input sources like The system can be used for:
- B-Mode Black and White imaging
- M-Mode Black and White imaging
- Combinations of the above
• LOGIQ™ 100 PRO is a digital beam forming system and can handle up to 16 channel,64
element by use of multiplexing.
• Signal flow from the Probe Connector to the Front End, then to the Mid Processors and Da
Vinci CPU and finally to the monitor and peripherals.
• System configuration is stored on EPROM and all necessary software is loaded when powered
up.

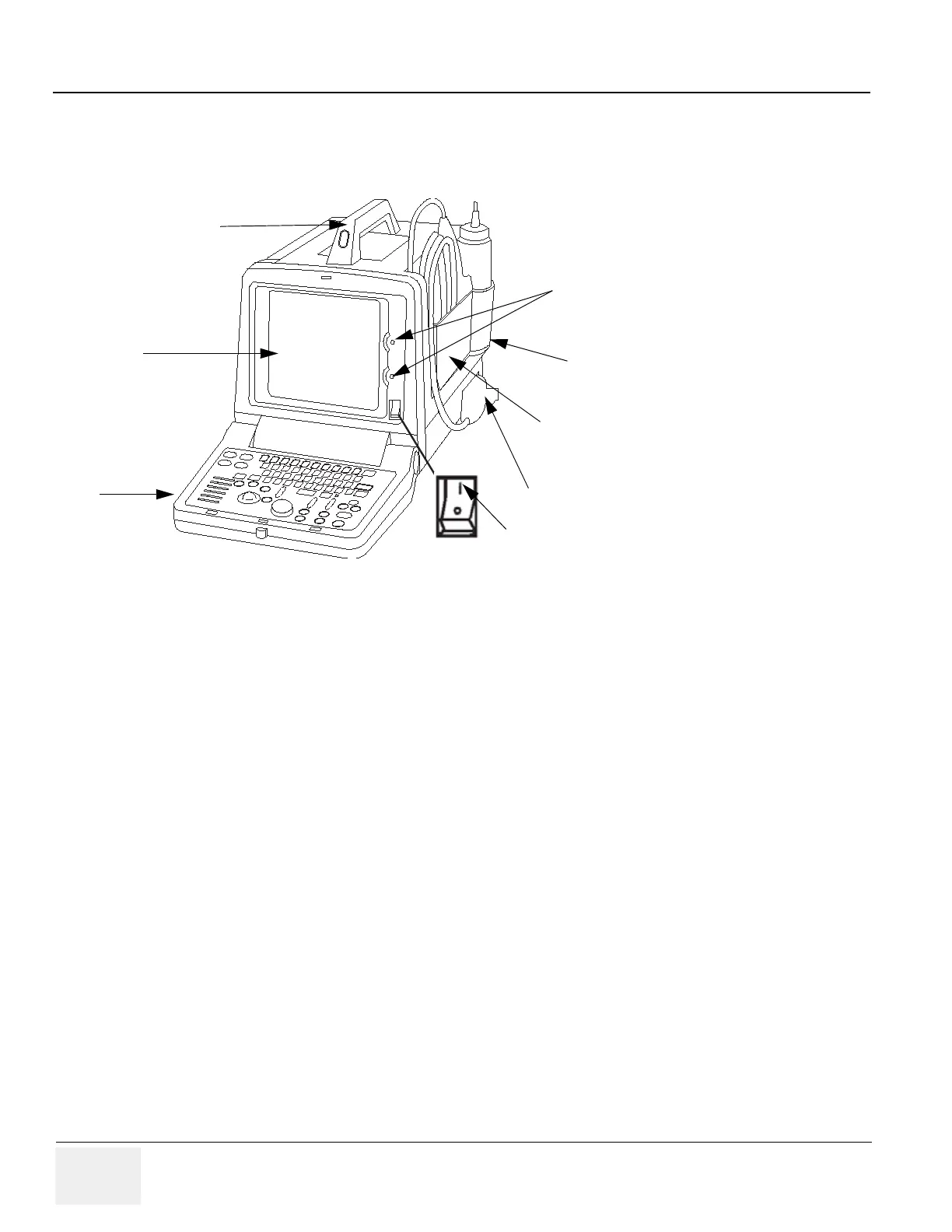

Figure 4-5 LOGIQ™ 100 PRO Major Components
1
2
3
4
5
6
7
1.) Probe Holder
2.) Gel Bottle Holder
3.) Brightness & Contrast
4.) Handle
5.) Monitor
6.) Keyboard
7.) Probe connector
8.) Power Switch
8
State: RELEASE - Document is released and under formal Change Control. Changes are subject to the ECR/ECO Process.
See the GEHC Myworkshop System to determine the status of this document.
Approved Document - 5305880-100TPH_r3.pdf Page 89 of 197
