GE HEALTHCARE
D
IRECTION 5305880-100, REVISION 3 LOGIQ™ 100 PRO SERVICE MANUAL
Page 10-14 Section 10-6 - Electrical Safety Tests
10-6-3 Outlet Test - Wiring Arrangement - USA & Canada
Test all outlets in the area for proper grounding and wiring arrangement by plugging in the neon
outlet tester and noting the combination of lights that are illuminated. Any problems found should
be reported to the hospital immediately and the receptacle should not be used.
The Dale 600 has self-contained lamps designed for testing the outlet wiring arrangement. Plug the
Dale 600 into each outlet to be tested comparing the lamp status.
Note: No outlet tester can detect the condition where the Neutral (grounded supply) conductor and
the Grounding (protective earth) conductor are reversed. If later tests indicate high leakage
currents, this should be suspected as a possible cause and the outlet wiring should be
visually inspected.

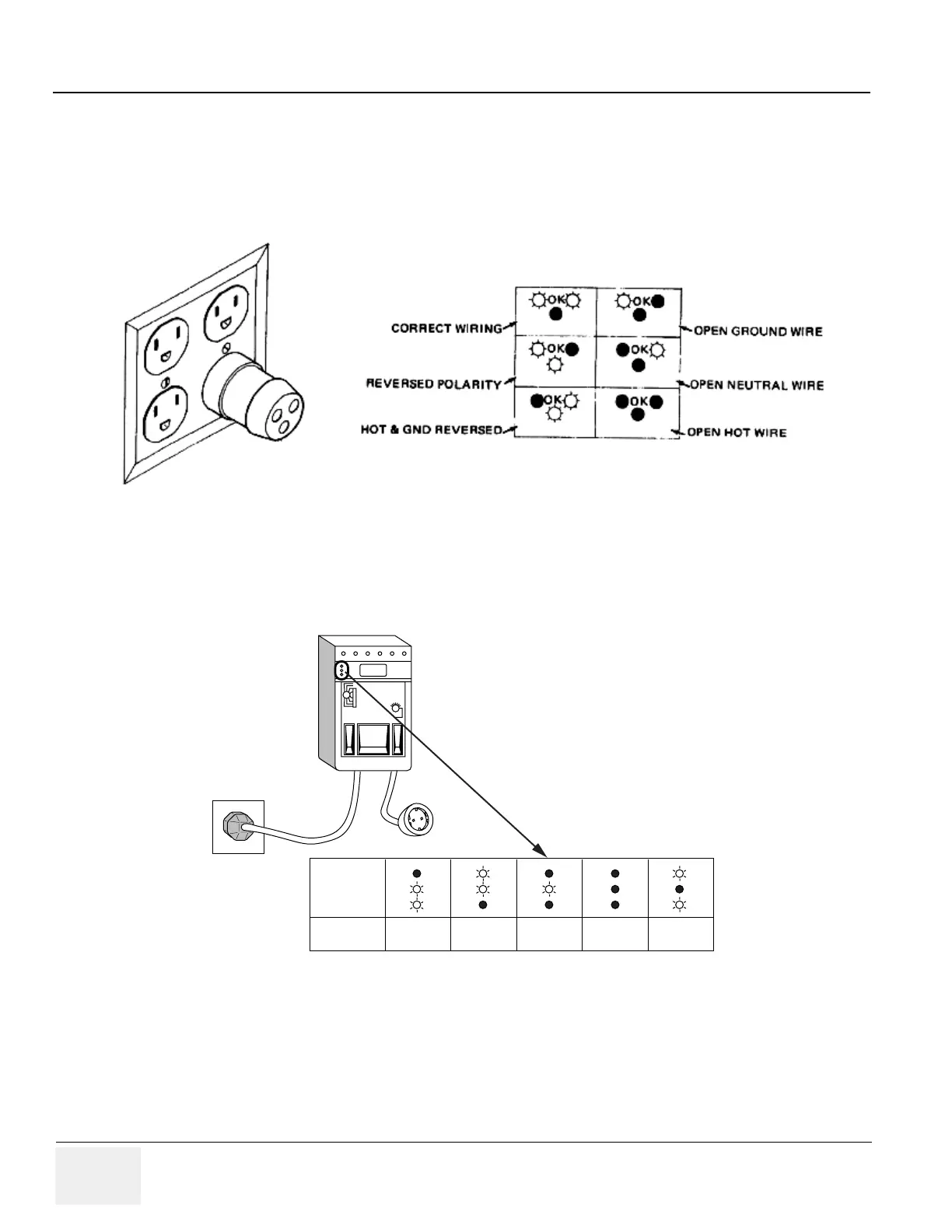

Figure 10-1 Typical Alternate Outlet Tester
Figure 10-2 Dale 600 Outlet Test
Combination 
of 
Lights
Condition
CORRECT
WIRING
REVERSE
POLARITY
OPEN
GROUND
OPEN
HOT
HOT/GROUND
REVERSED
State: RELEASE - Document is released and under formal Change Control. Changes are subject to the ECR/ECO Process.
See the GEHC Myworkshop System to determine the status of this document.
Approved Document - 5305880-100TPH_r3.pdf Page 185 of 197
