LOGIQ™ 100 PRO
S
ERVICE
M
ANUAL
Page 5-6
Section 5-3 - Block Diagra
m
5-3-2
LOGIQ™ 100 PRO

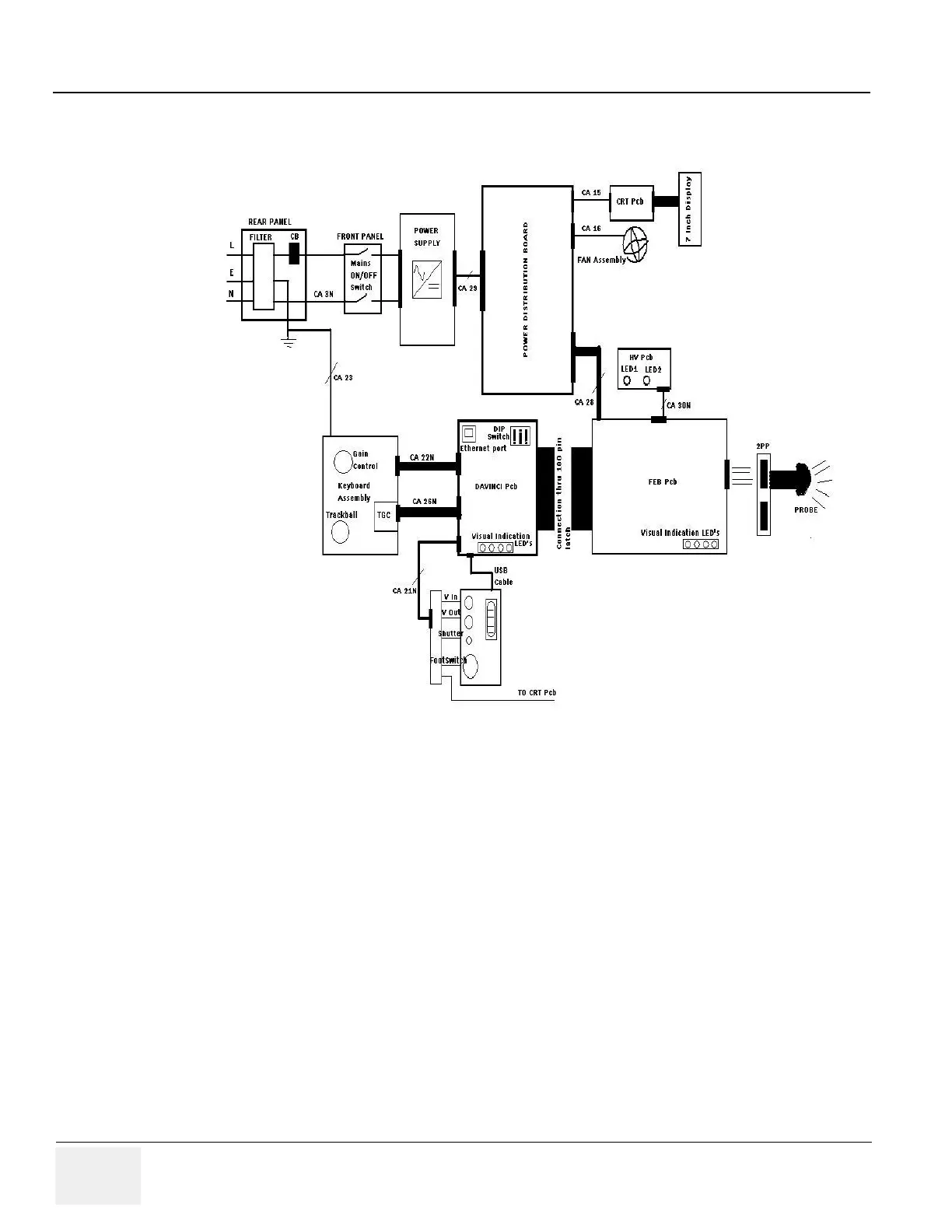

BLOCK DIAGRAM.
State: RELEASE - Document is released and under formal Change Control. Changes are subject to the ECR/ECO Process.
See the GEHC Myworkshop System to determine the status of this document.
Approved Document - 5305880-100TPH_r3.pdf Page 93 of 197
91
93
