LOGIQ™ 100 PRO
S
ERVICE
M
ANUAL
Chapter 8 - Replacement
Procedures
Page 8-3
Disassembly/Assembly (Cont’d.)

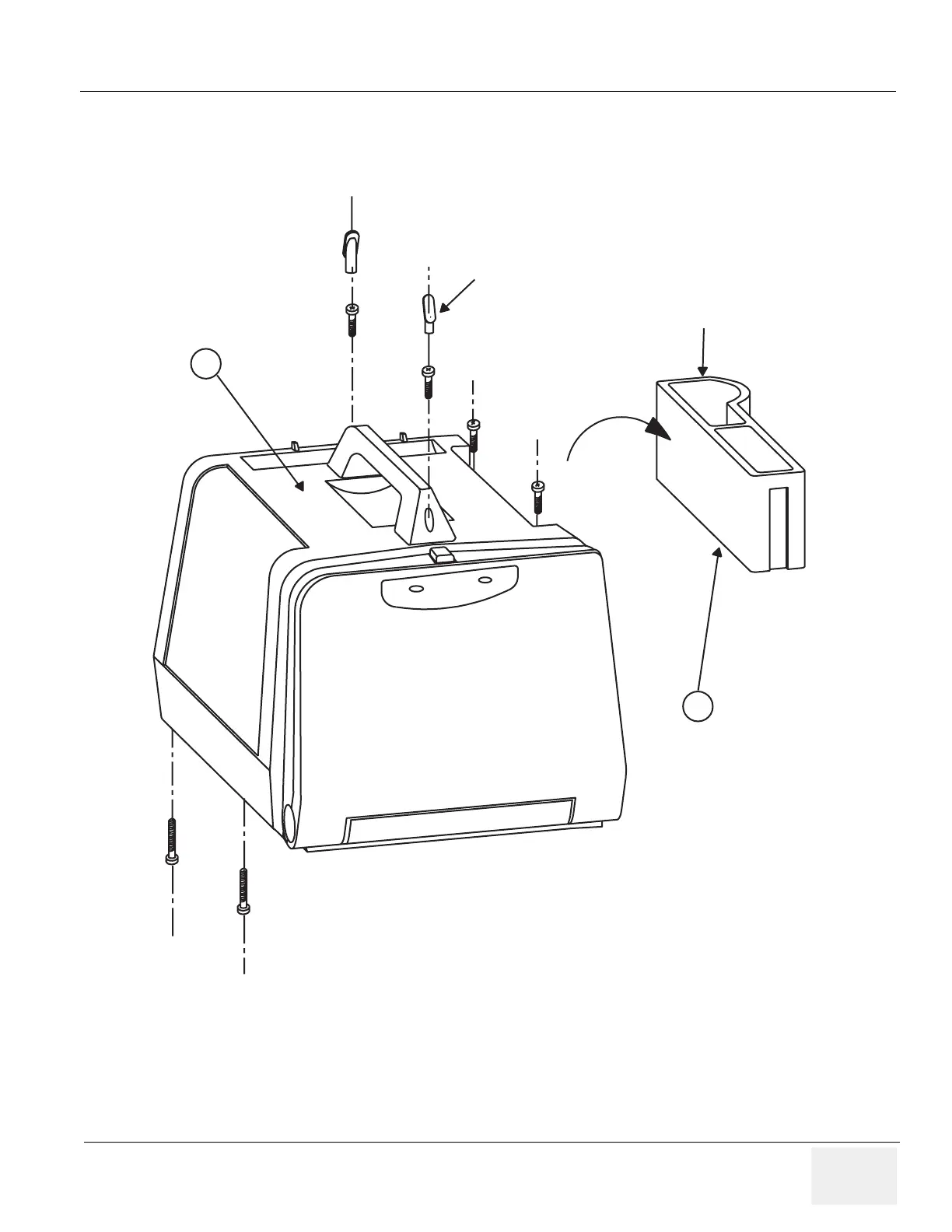

Figure 8-1 Disassembly/Asse
mbly of T
op Cover
101
102
a
b
c
d
e
f
Handle
Cap
Probe
Holder
State: RELEASE - Document is released and under formal Change Control. Changes are subject to the ECR/ECO Process.
See the GEHC Myworkshop System to determine the status of this document.
Approved Document - 5305880-100TPH_r3.pdf Page 132 of 197
130
132
